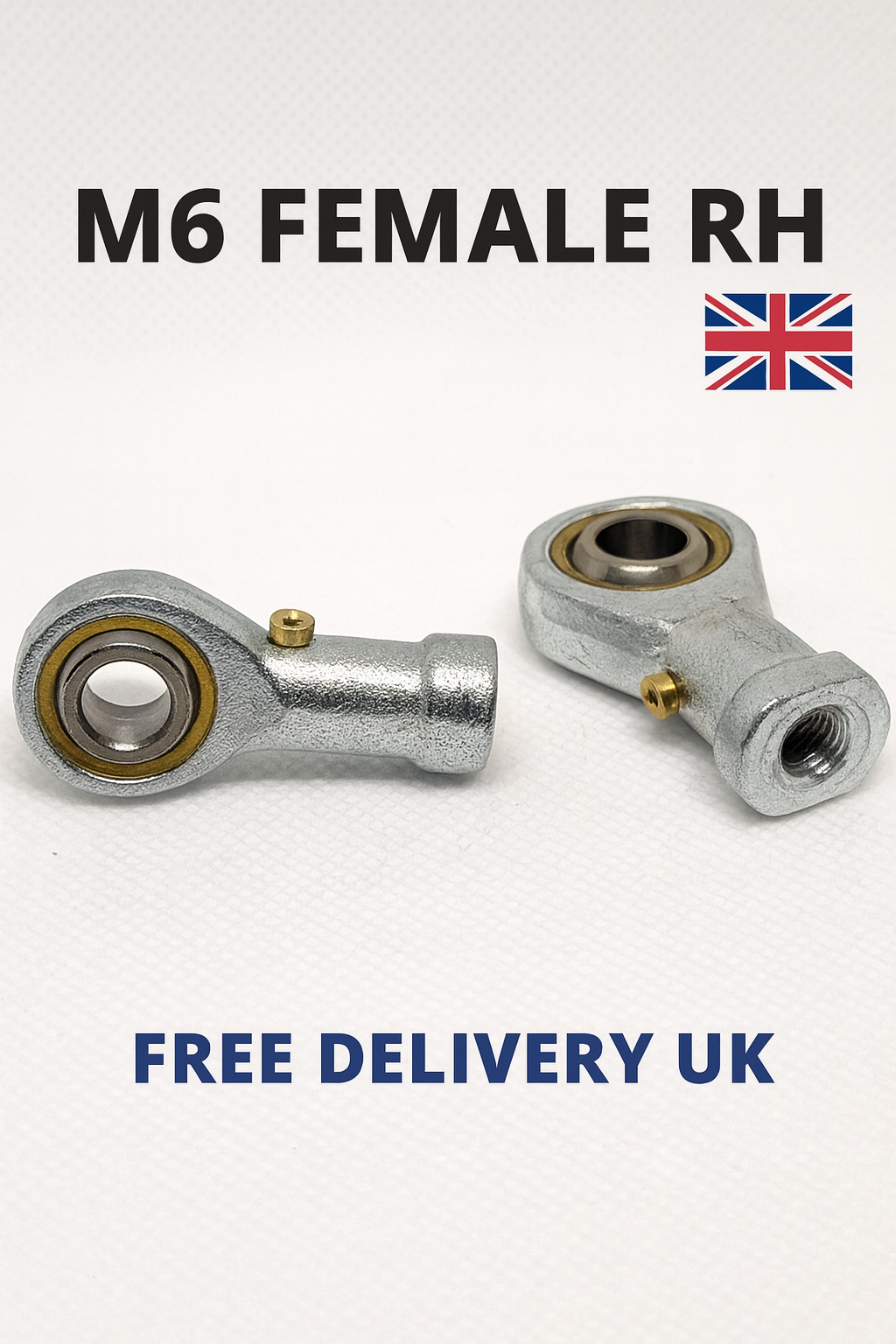

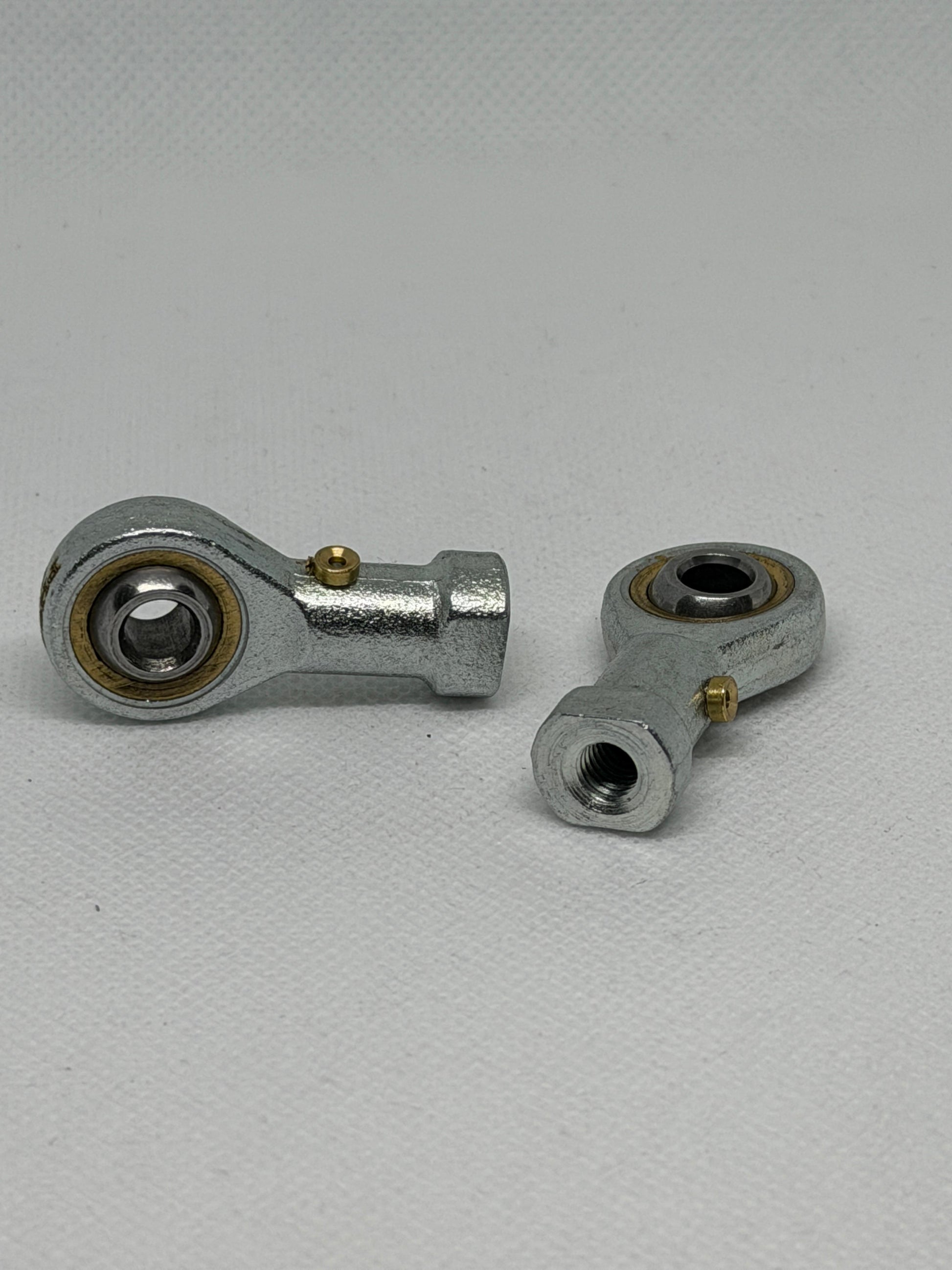

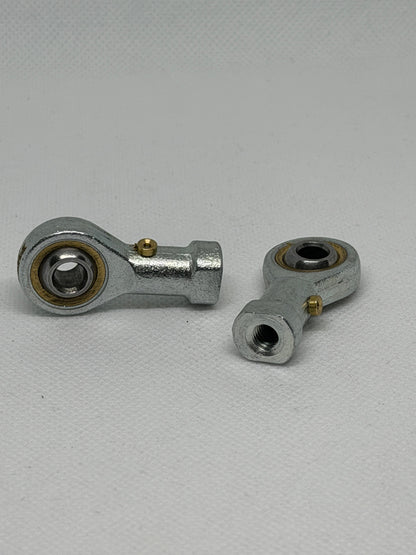

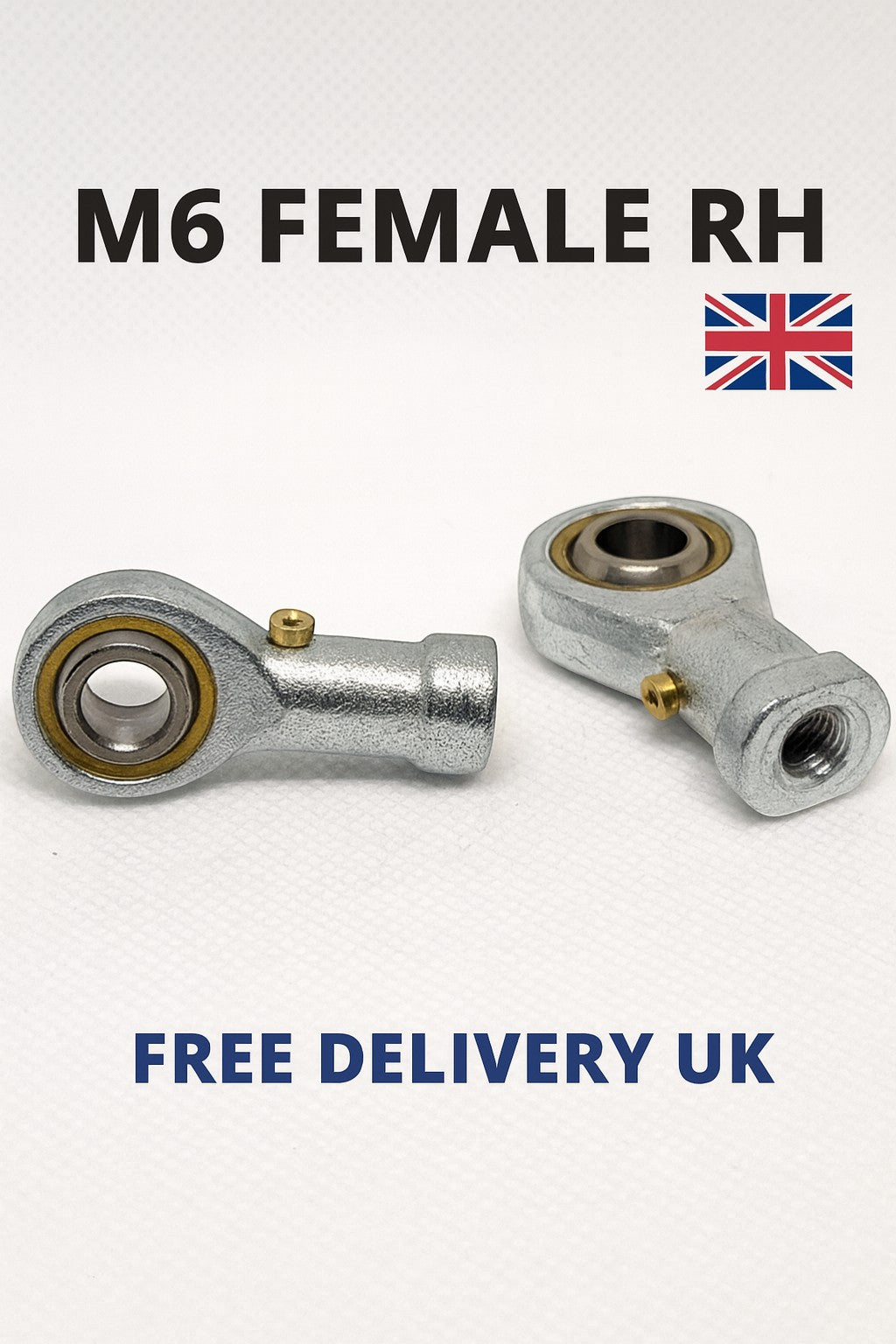

M6 Female Rod End Bearing PHS6 — 2 Pack Rose Joints, RH Thread

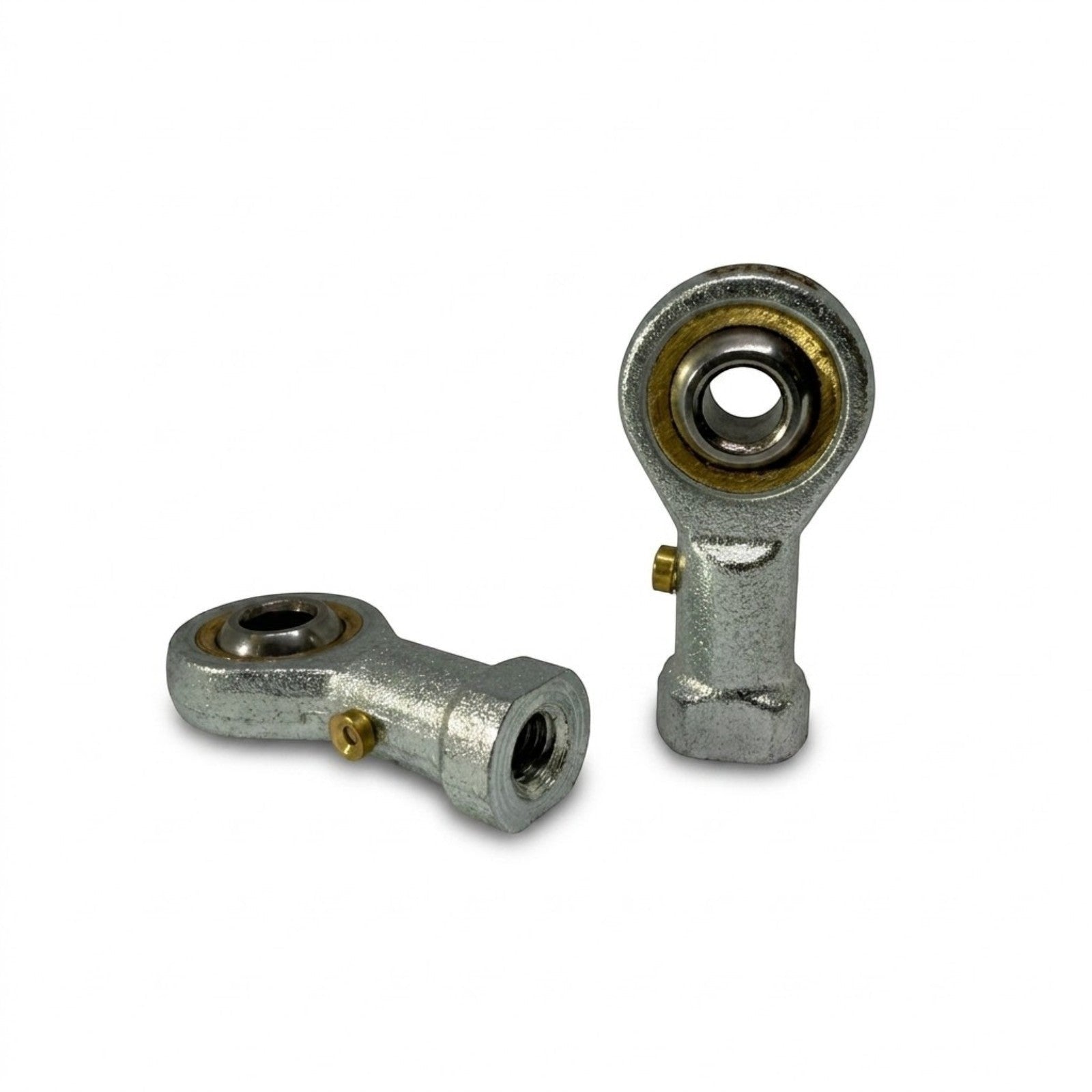

Precision-engineered M6 female rod end bearings (PHS6) for motorsport, engineering and industrial applications. Also known as rose joints, spherical bearings or heim joints. Supplied as a pair with 6mm bore and female right-hand thread.

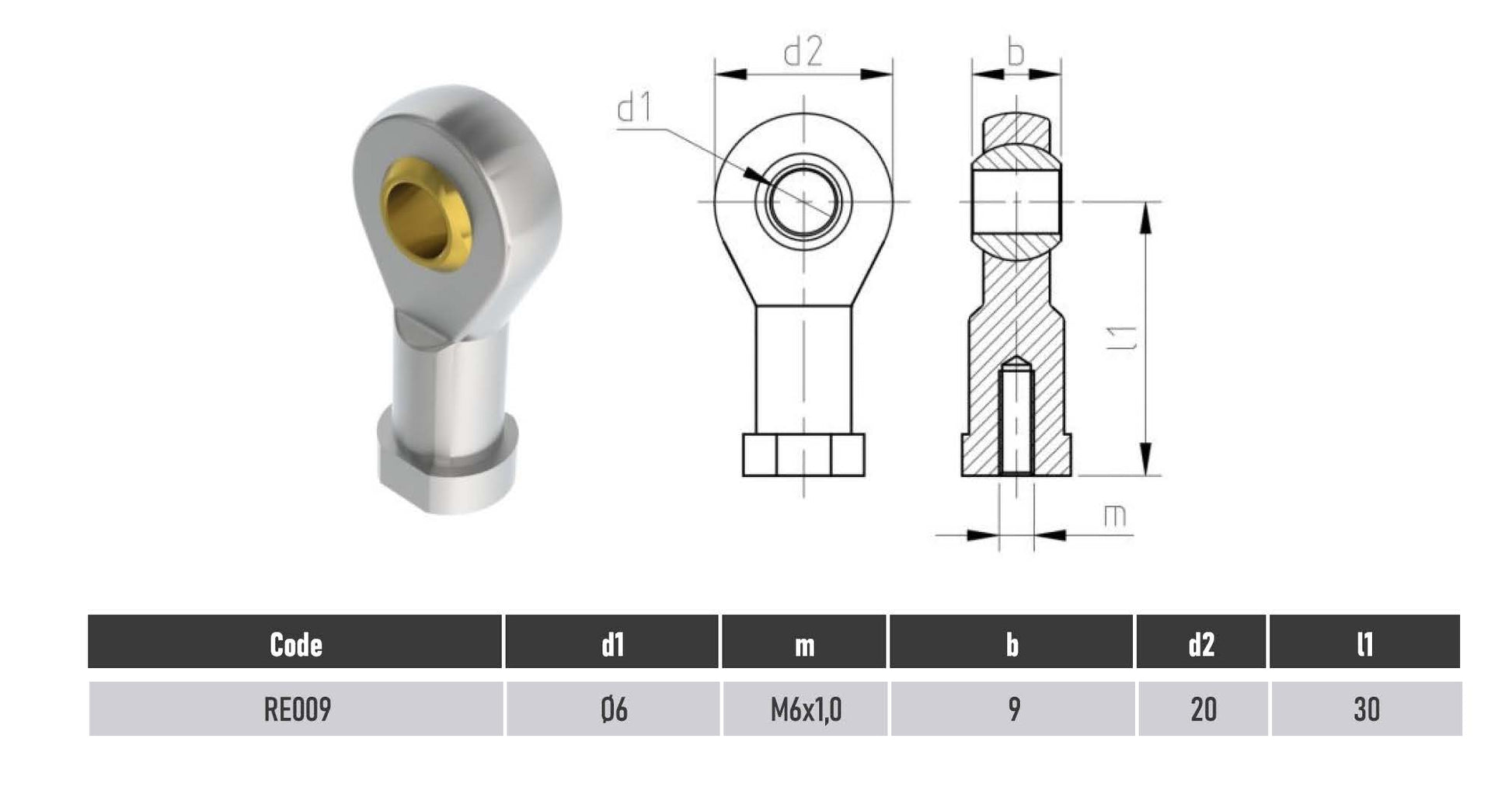

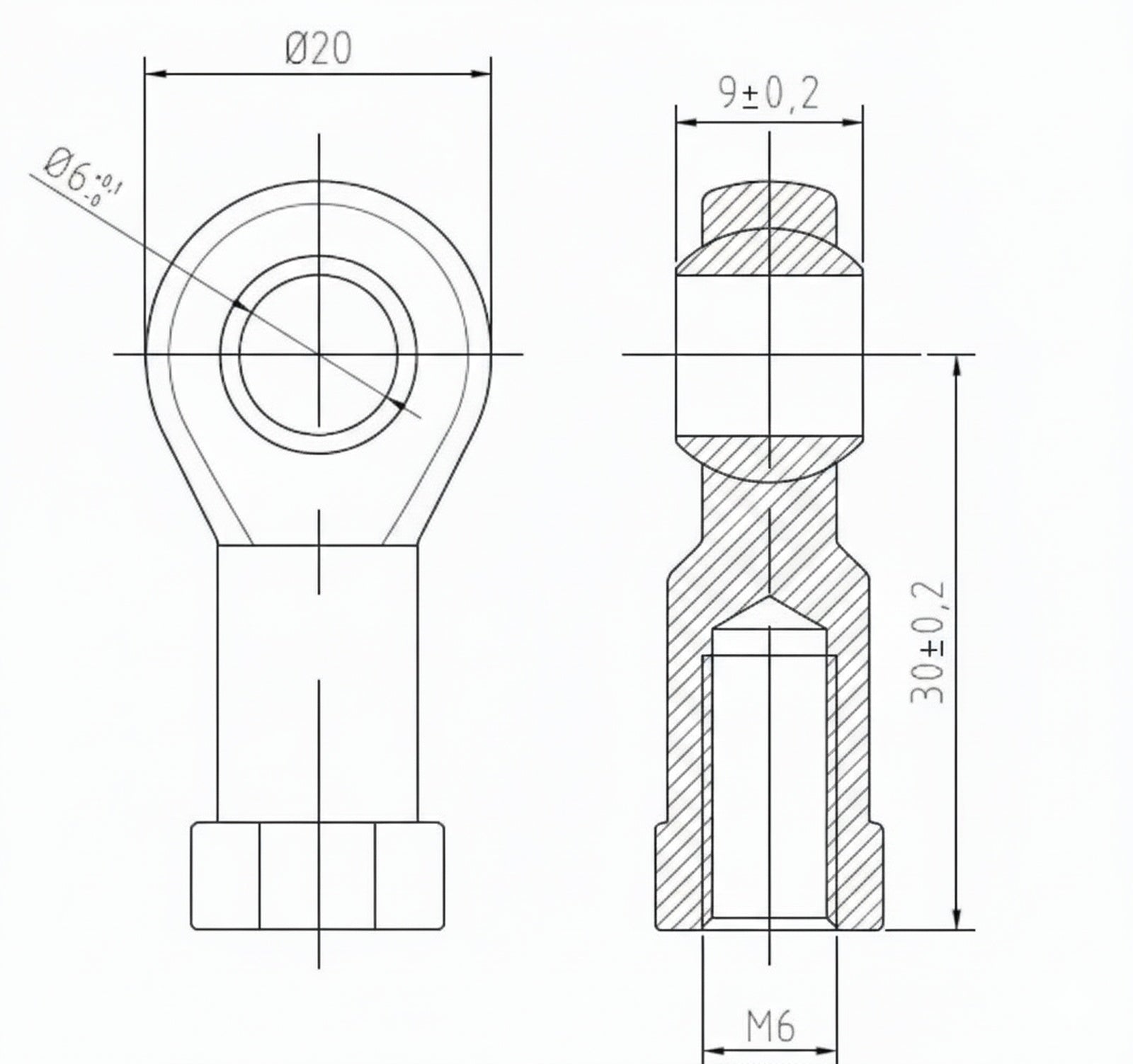

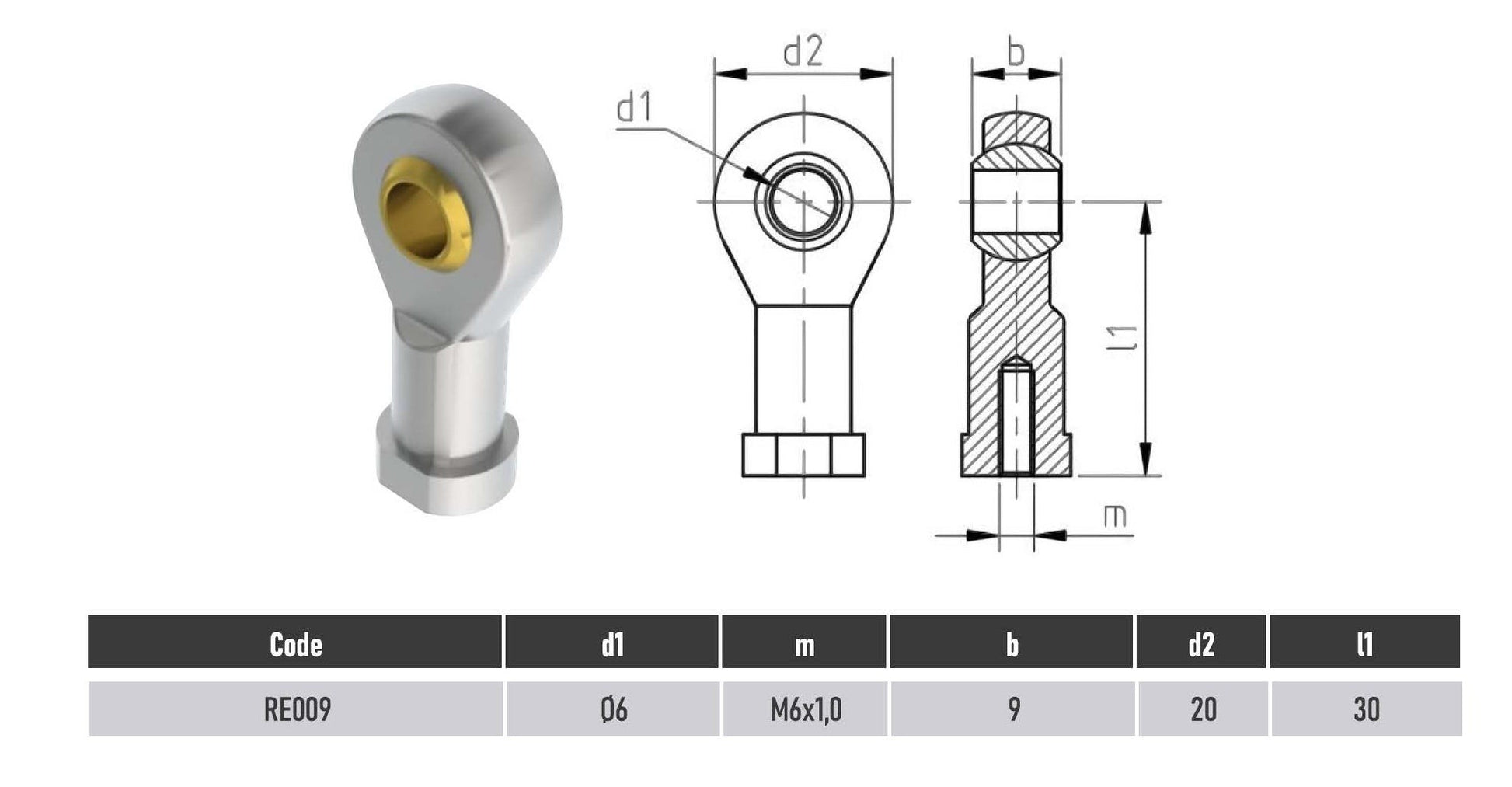

Key Specifications

• Model: PHS6 (female thread, positive series)
• Thread: M6 × 1.0 female right-hand
• Bore diameter: 6mm
• Construction: Zinc plated steel body
• Bearing type: Self-lubricating spherical
• Angular range: ±13° typical
• Load rating: Up to ~500kg static

Perfect For

• Adjustable-length linkages (paired with M6 threaded rod)
• Motorsport tie rod ends
• Throttle and control cable ends
• Robotic joints and precision mechanisms
• Model engineering and RC vehicle builds
• Kit-car and custom fabrication

Installation Tips

• Screws directly onto an M6 threaded rod or bolt
• Always use jam nuts when used in adjustable-length linkages
• Don't over-tighten the pivot pin — the 6mm bore must move freely
• Combine with a male POS6 rod end at the other end for a full adjustable link

Frequently Asked Questions

What's the difference between PHS and POS? PHS is female (threaded hole inward). POS is male (threaded stud outward). See our full guide: Rod End Bearing Guide.

Can I mix PHS and POS in one linkage? Yes — this is the standard method to build adjustable-length rods (POS one end, PHS other end, threaded rod between).

Do I need to grease them? No — self-lubricating design. Periodic wipe with light oil extends life if used outdoors.

Is this right-hand thread? Yes — standard clockwise thread. Left-hand versions on request.
