Rod End Bearing Guide UK: POS vs PHS, Sizes and Applications Explained

Rod end bearings — also known as rose joints, heim joints, or spherical bearings — are one of the most common components in motorsport, engineering, agricultural machinery and precision linkages. But if you're new to them, the naming conventions can be confusing: POS, PHS, male, female, right-hand, left-hand thread...

This guide clears it all up. We cover the different types, how to choose the right size, common applications, and what to look for when buying.

What is a Rod End Bearing?

A rod end bearing is a mechanical joint that allows angular movement in multiple directions while transmitting force along a shaft. Picture a ball and socket joint — that's essentially what a rod end is, with a threaded stem attached.

They're used wherever a component needs to pivot smoothly under load: throttle linkages, suspension arms, hydraulic actuators, agricultural machinery, robotic arms, and countless industrial applications.

POS vs PHS: What's the Difference?

The two main types you'll encounter are:

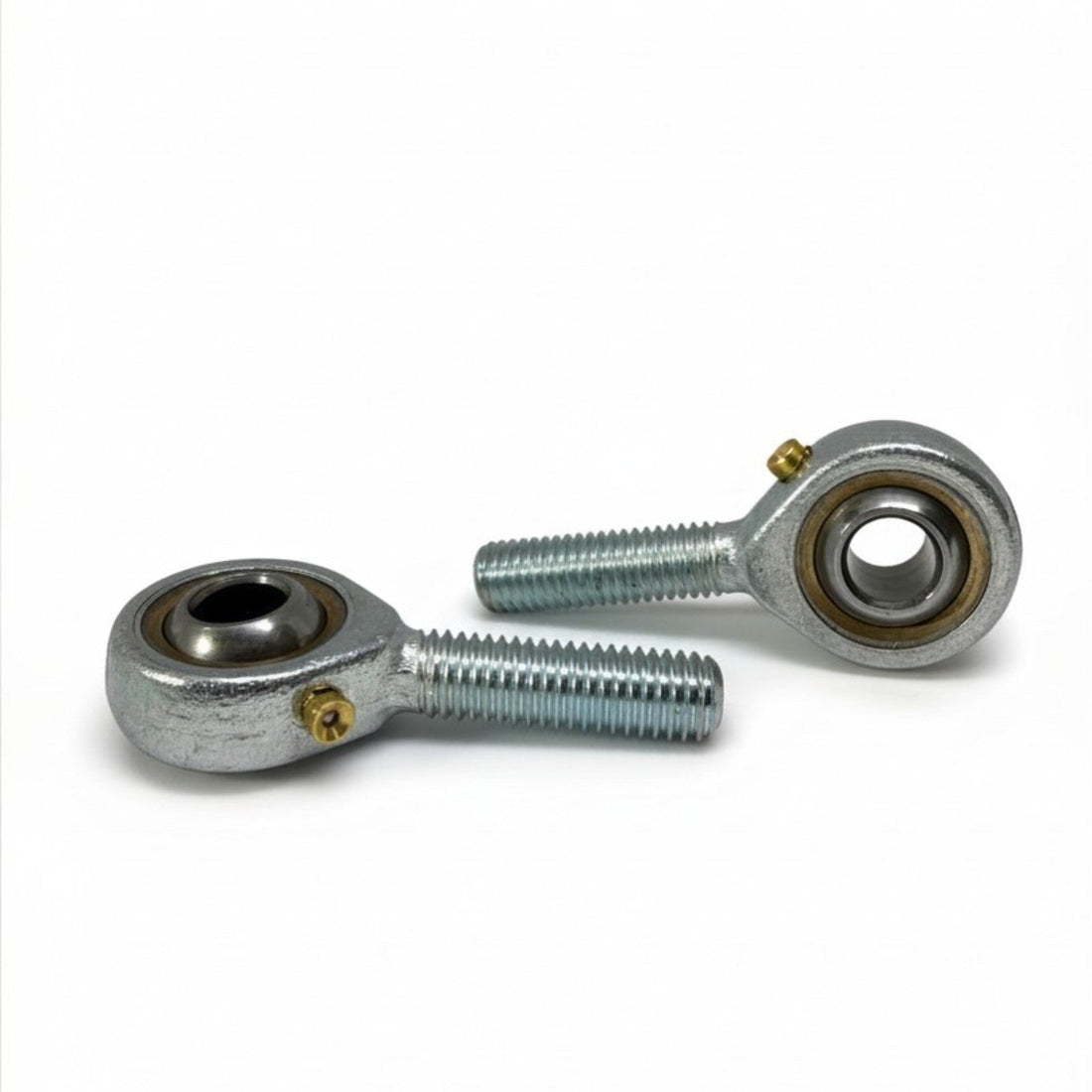

POS — Male Rod End Bearing

• P stands for "positive" (external thread)
• O identifies the standard series
• S stands for "steel body"
• Has a threaded shaft sticking out from the bearing
• Screws into a corresponding female thread

PHS — Female Rod End Bearing

• P stands for "positive"
• H identifies the female variant
• S stands for "steel body"
• Has a threaded hole inside the bearing
• A male thread (like a bolt) screws into it

Quick mnemonic: POS = "Point Outward Stud" (male), PHS = "Positive Hole for Screw" (female).

Understanding the Size Numbers

You'll see rod ends listed as POS6, POS8, POS10, PHS6, PHS8, PHS10 — the number refers to the thread size in millimetres:

The bore diameter is the size of the hole in the spherical bearing itself — this is where your pin, bolt, or shaft passes through.

Right-Hand vs Left-Hand Thread

Most standard rod ends use right-hand thread (RH) — the same direction as a normal bolt (turn clockwise to tighten).

Left-hand thread (LH) versions exist for specific applications where two rod ends work in opposition, allowing length adjustment by turning the central rod — this is common in motorsport tie rods and adjustable suspension links.

Unless you specifically need LH, always go with RH.

Common Rod End Bearing Applications

Motorsport & Automotive

• Suspension tie rods and pushrods
• Steering linkage
• Anti-roll bar drop links
• Adjustable panhard rods
• Throttle and clutch linkages

Engineering & Industry

• Hydraulic cylinder mounts
• Robot arm joints
• Machinery linkages
• Conveyor mechanisms
• Precision positioning systems

Agricultural & Off-Road

• Tractor implement linkages
• Plough hitch points
• Loader arm connections
• Machinery pivot points

DIY & Custom Builds

• Kit cars and custom vehicles
• CNC machinery
• Home workshop projects
• Prop building and film rigs

How to Choose the Right Size

Three things determine the right rod end for your project:

1. Load Capacity

Match the thread size to your expected force:

• M6 — Up to ~500 kg static load
• M8 — Up to ~900 kg static load
• M10 — Up to ~1,500 kg static load

For dynamic (moving) loads, halve these figures for safety.

2. Angular Range

Standard rod ends allow about ±13° to ±16° of angular movement in any direction. If you need more range, look for extended-clearance or "high misalignment" versions.

3. Male or Female Thread

Match your existing connection:

• Attaching to a threaded rod? → Use PHS (female)
• Attaching to a threaded hole? → Use POS (male)

Installation Tips

• Always use lock nuts to prevent loosening under vibration
• Don't over-tighten the pivot pin through the bore — it needs to move freely
• Lubricate periodically for smooth operation and long life
• Check pivot pins for wear during routine maintenance
• Never weld onto a rod end body — it destroys the internal bearing

What "Self-Lubricating" Actually Means

Many rod ends are described as self-lubricating. This means the spherical bearing has a low-friction liner (usually PTFE-based) that provides smooth movement without needing grease. You still get longer life by applying light lubrication periodically, but they'll work maintenance-free for years.

FAQs About Rod End Bearings

Are rose joints and rod ends the same thing? Yes — "rose joint" is a British term (from Rose Bearings Ltd, an early UK manufacturer). "Heim joint" is the American term (from Heim Company). Both mean the same thing.

Can I mix POS and PHS in one linkage? Absolutely. Most adjustable linkages use one of each — for example, a POS at one end and a PHS at the other — with a threaded rod between them for length adjustment.

What's the load rating I should look at — static or dynamic? Static load is the maximum force the bearing can hold without moving. Dynamic load is what it can handle while rotating. Always match to your actual use — dynamic ratings are typically half the static rating.

Do rod ends need maintenance? Self-lubricating types are largely maintenance-free but benefit from a periodic wipe with light oil. Non-self-lubricating types should be greased through the fitted grease nipple every few months of heavy use.

Can I use rod ends outdoors? Standard zinc plated steel rod ends work outdoors but will eventually corrode. For marine or extreme environments, look for stainless steel versions.

What if my rod end feels stiff? A little stiffness is normal for a new bearing — they loosen up with use. If it's binding completely, check for damage or debris in the bore.
