M10 Female Rod End Bearing PHS10 10mm Bore RH Rose Joint – 2 Pack | SpringFix UK

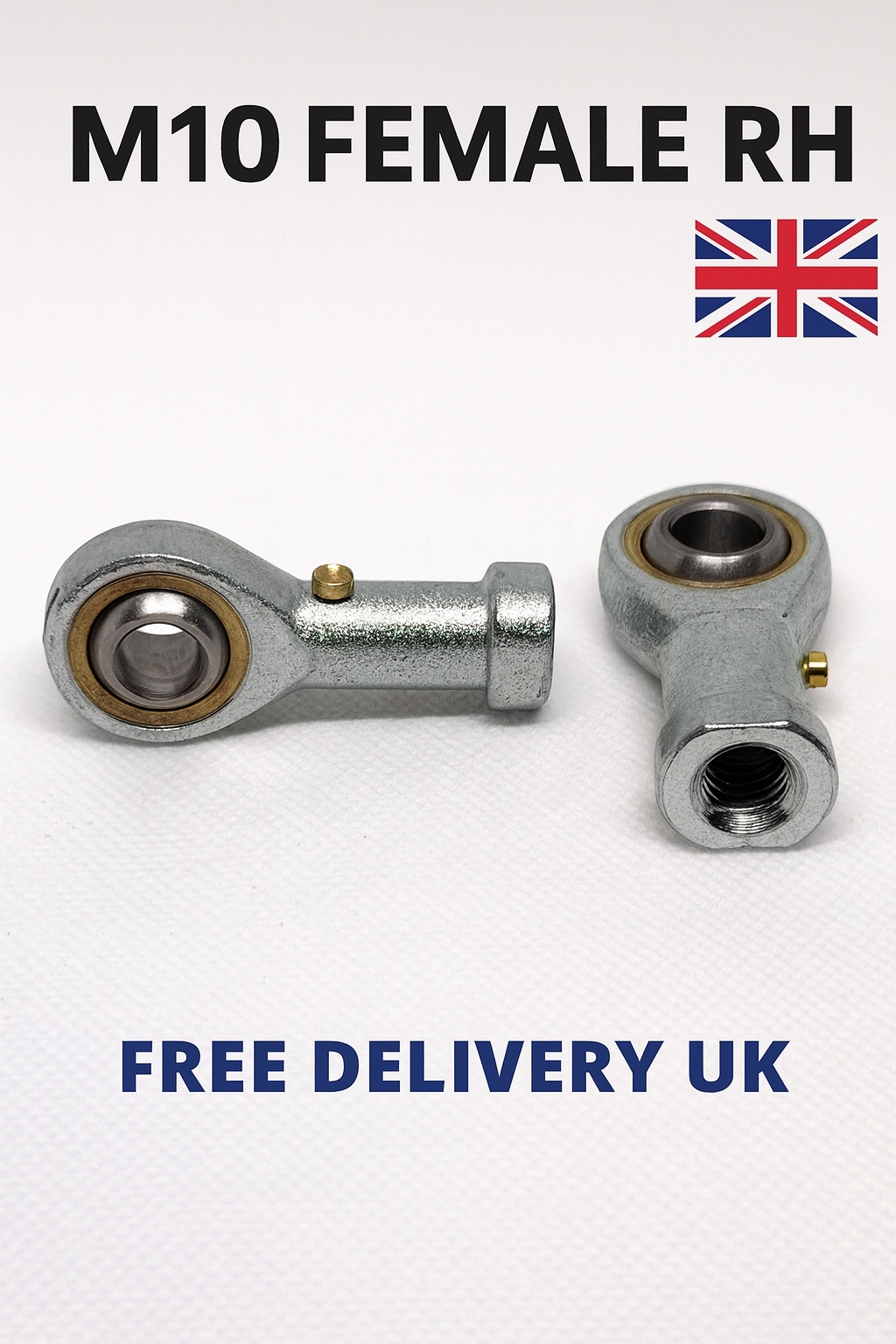

M10 Female Rod End Bearing PHS10 — 2 Pack Heavy-Duty Rose Joints, RH Thread

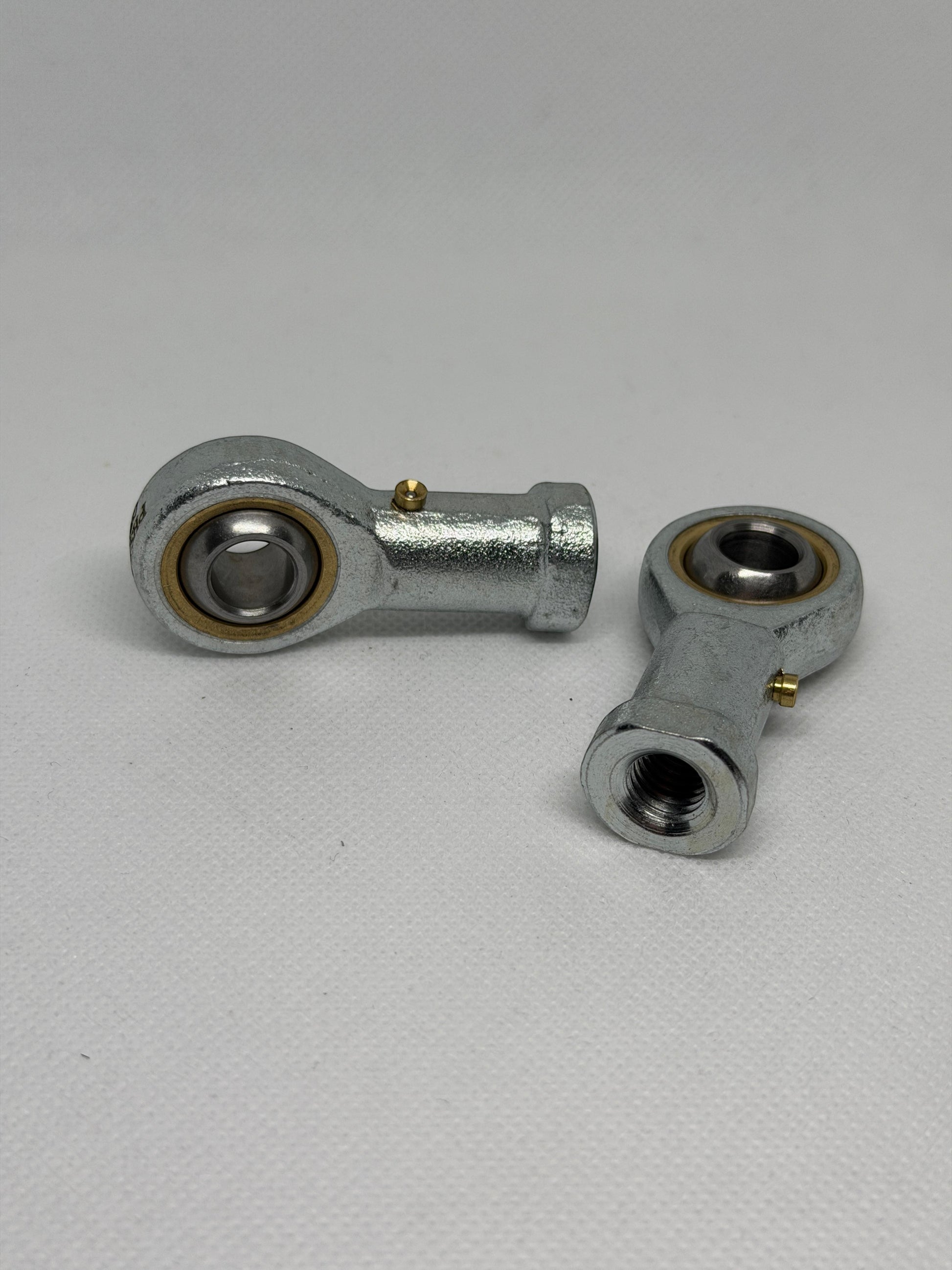

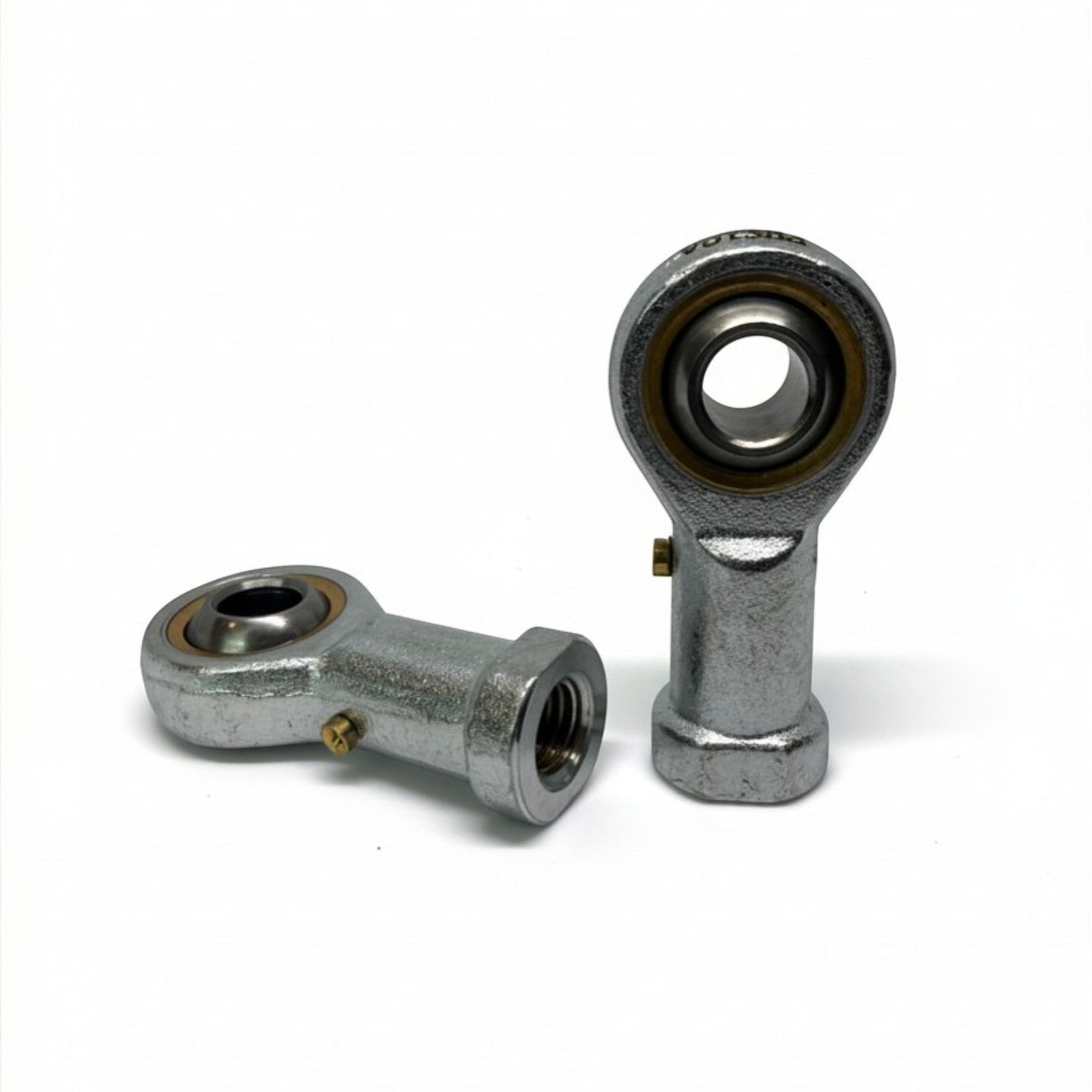

Heavy-duty M10 female rod end bearings (PHS10) for high-load motorsport, industrial and heavy machinery applications. Also known as rose joints, spherical bearings or heim joints. Supplied as a pair with 10mm bore and female right-hand thread.

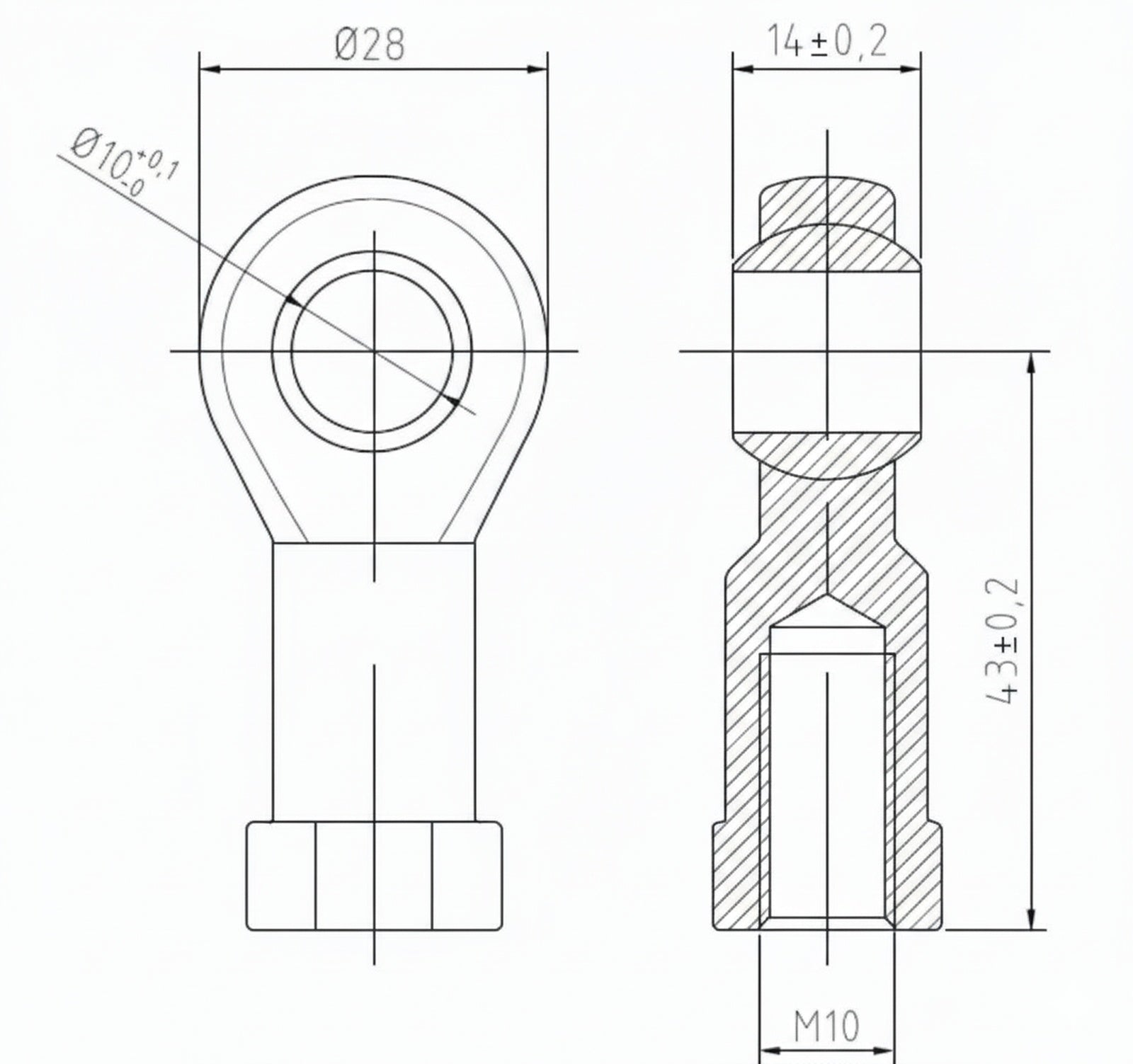

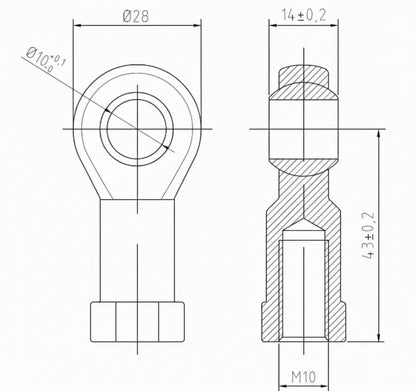

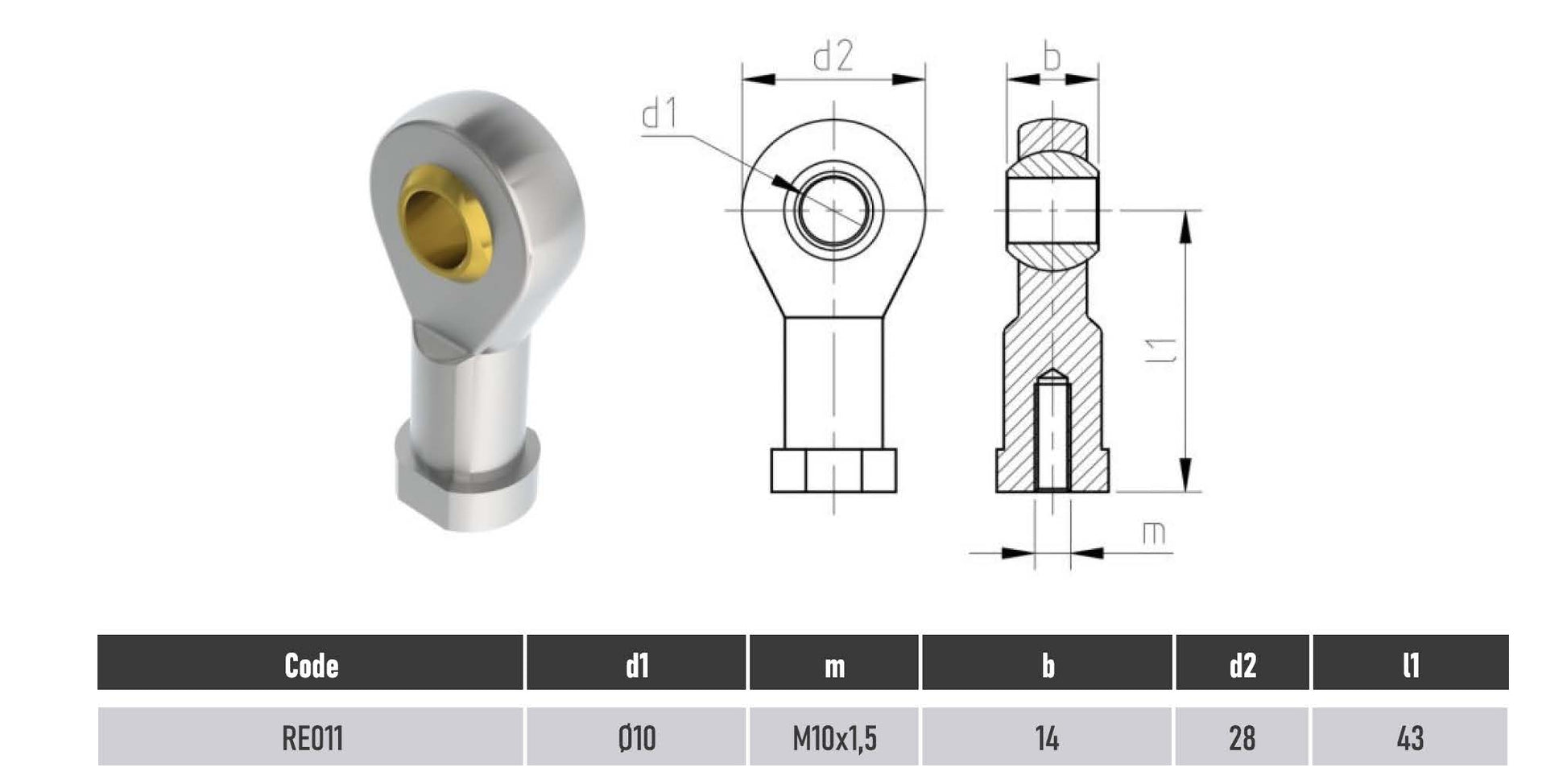

Key Specifications

• Model: PHS10 (female thread, positive series)
• Thread: M10 × 1.5 female right-hand
• Bore diameter: 10mm
• Construction: Zinc plated steel body
• Bearing type: Self-lubricating spherical
• Angular range: ±13° typical
• Load rating: Up to ~1,500kg static

Perfect For

• Adjustable panhard rods and tie bars
• Heavy-duty motorsport suspension links
• Kit-car and race car custom fabrication
• Trailer and load-carrying pivot points
• Industrial hydraulic actuator ends
• Agricultural machinery adjustable linkages

Installation Tips

• Screws directly onto M10 threaded rod for adjustable-length applications
• Always use jam nuts to lock in place after adjustment
• Don't over-tighten the pivot pin — the 10mm bore must move freely
• Pair with a male POS10 rod end and M10 threaded rod for full adjustable links

Frequently Asked Questions

What's the difference between PHS and POS? PHS is female (threaded hole inward). POS is male (threaded stud outward). See our full guide: Rod End Bearing Guide.

What's the max load rating? ~1,500kg static, ~750kg dynamic (moving load).

Are they suitable for club-level motorsport? Yes — standard specification for many club racing suspension setups.

Can I build a full adjustable link with these? Yes — pair a POS10 male rod end at one end, a PHS10 female at the other, with M10 threaded rod between.
