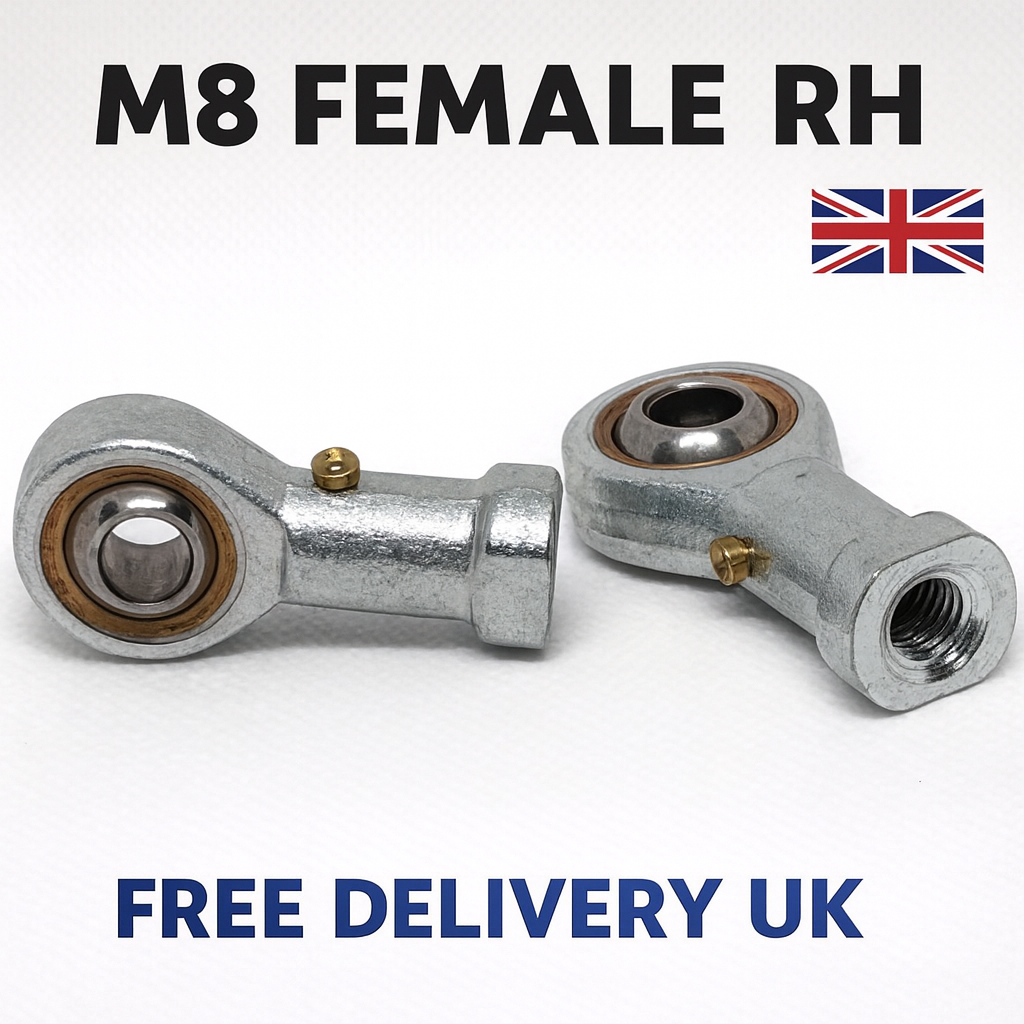

M8 Female Rod End Bearing PHS8 — 2 Pack Rose Joints, RH Thread

Heavy-duty M8 female rod end bearings (PHS8) for motorsport, engineering and industrial applications. Also known as rose joints, spherical bearings or heim joints. Supplied as a pair with 8mm bore and female right-hand thread.

Key Specifications

• Model: PHS8 (female thread, positive series)
• Thread: M8 × 1.25 female right-hand
• Bore diameter: 8mm
• Construction: Zinc plated steel body
• Bearing type: Self-lubricating spherical
• Angular range: ±13° typical
• Load rating: Up to ~900kg static

Perfect For

• Adjustable-length tie rods and pushrods
• Motorsport suspension linkages
• Kit-car and race car custom builds
• Anti-roll bar drop links
• Hydraulic cylinder mounts
• Precision machinery adjustable joints

Installation Tips

• Screws directly onto M8 threaded rod or bolt
• Always use jam nuts when used in adjustable-length linkages
• Don't over-tighten the pivot pin — the 8mm bore must move freely
• Pair with a male POS8 rod end and M8 threaded rod for adjustable-length links

Frequently Asked Questions

What's the difference between PHS and POS? PHS is female (threaded hole inward). POS is male (threaded stud outward). See our full guide: Rod End Bearing Guide.

Can I use these for adjustable suspension links? Yes — this is the primary use case. Pair with a POS8 male rod end and M8 threaded rod.

What's the max load? ~900kg static, ~450kg dynamic is a safe working limit for M8.

Are they self-lubricating? Yes — PTFE liner provides smooth operation with no grease needed.

Fast UK Dispatch

Orders placed Monday to Sunday before 16:00 are dispatched same-day from UK stock via Royal Mail, Yodel, UPS or DPD.

Explore More

See our full Rod End Bearings collection — M6, M8, M10 in both male (POS) and female (PHS) versions.
