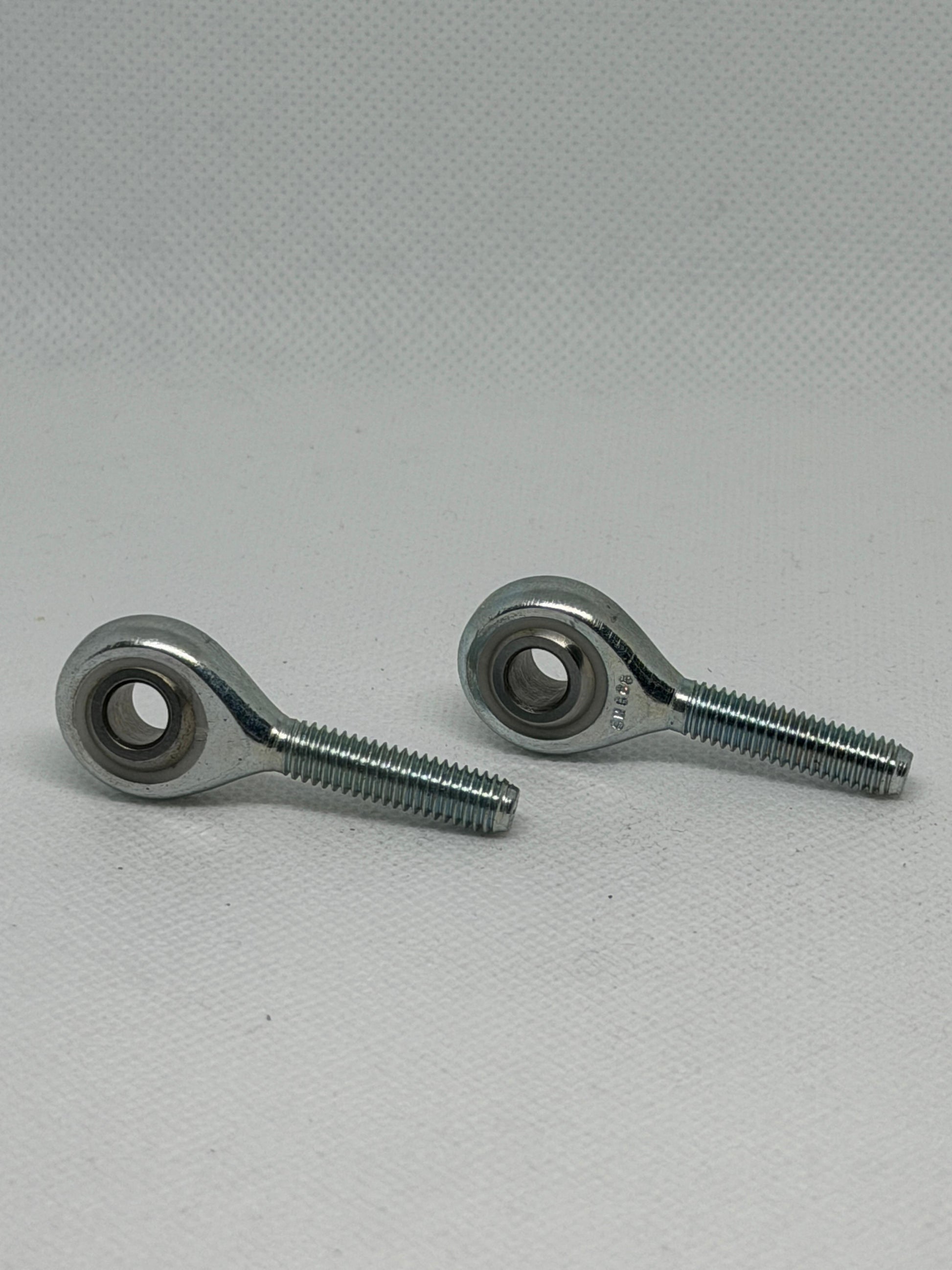

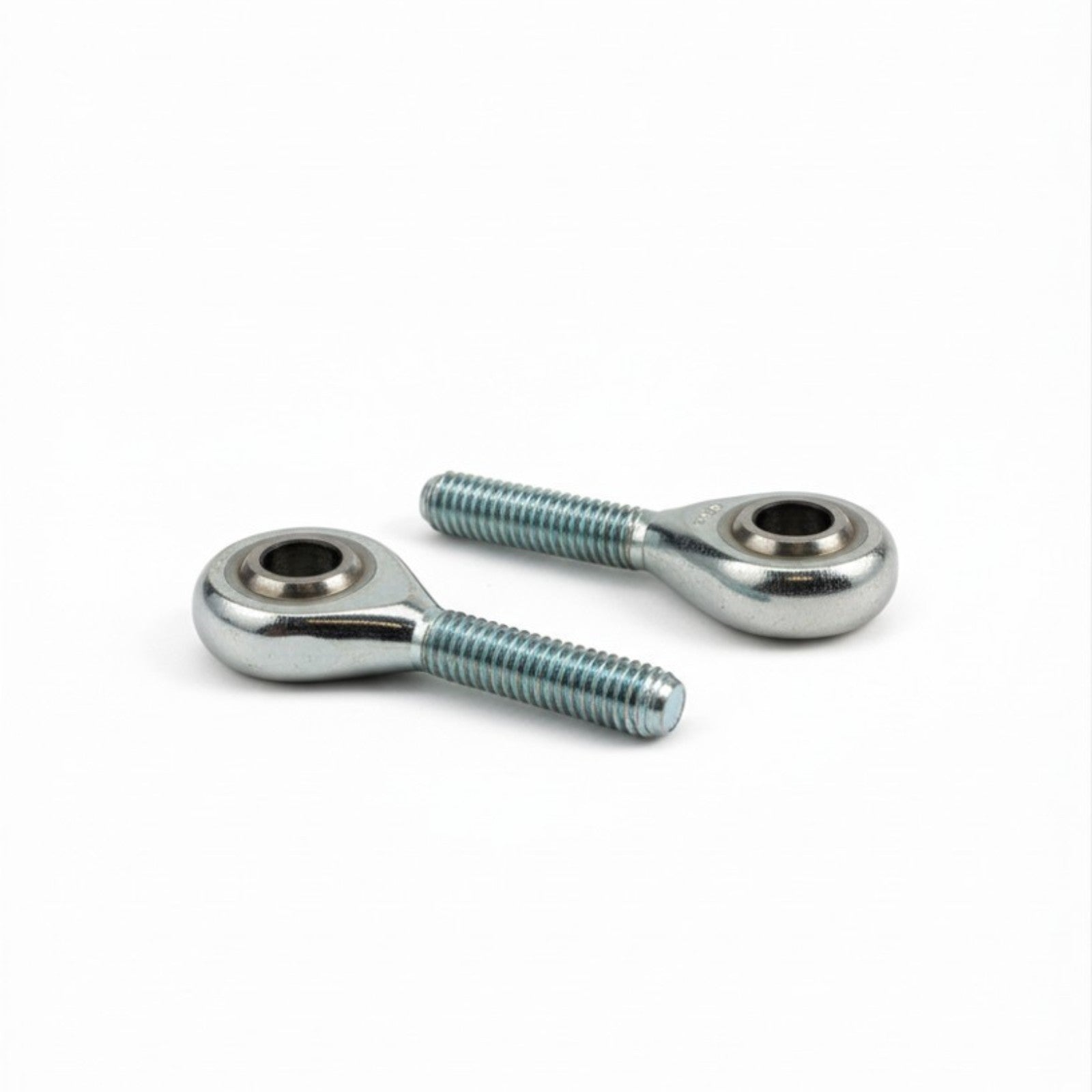

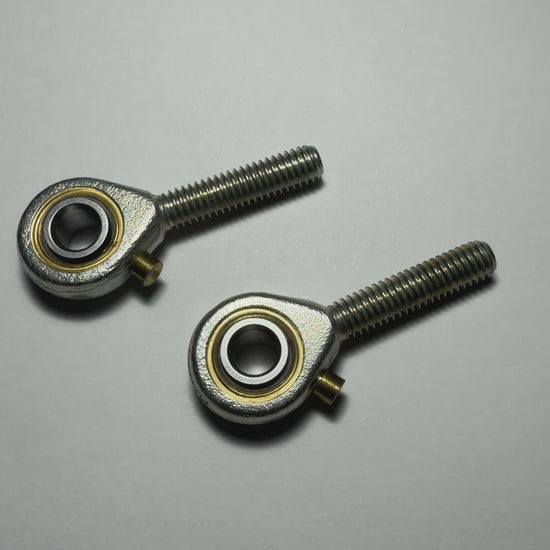

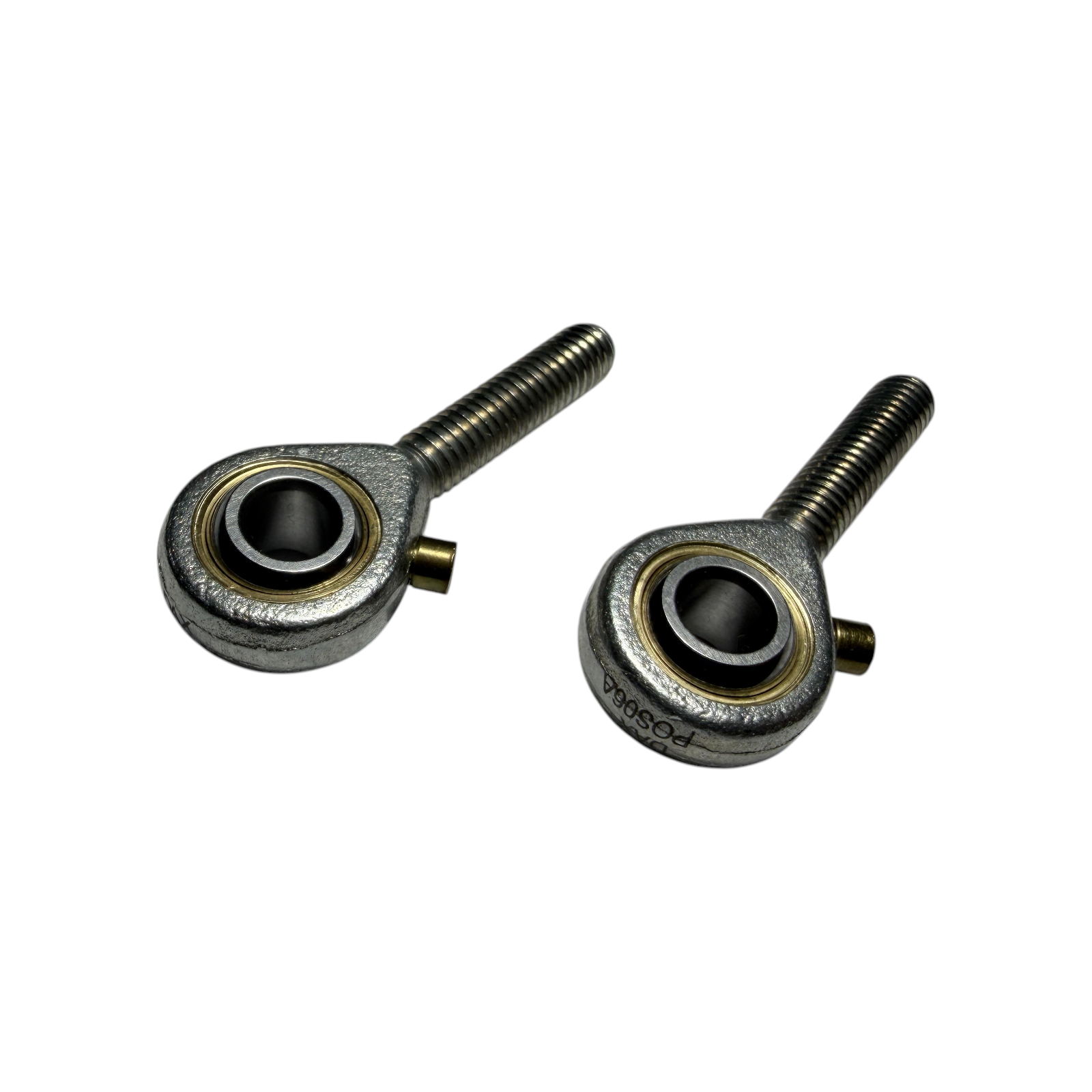

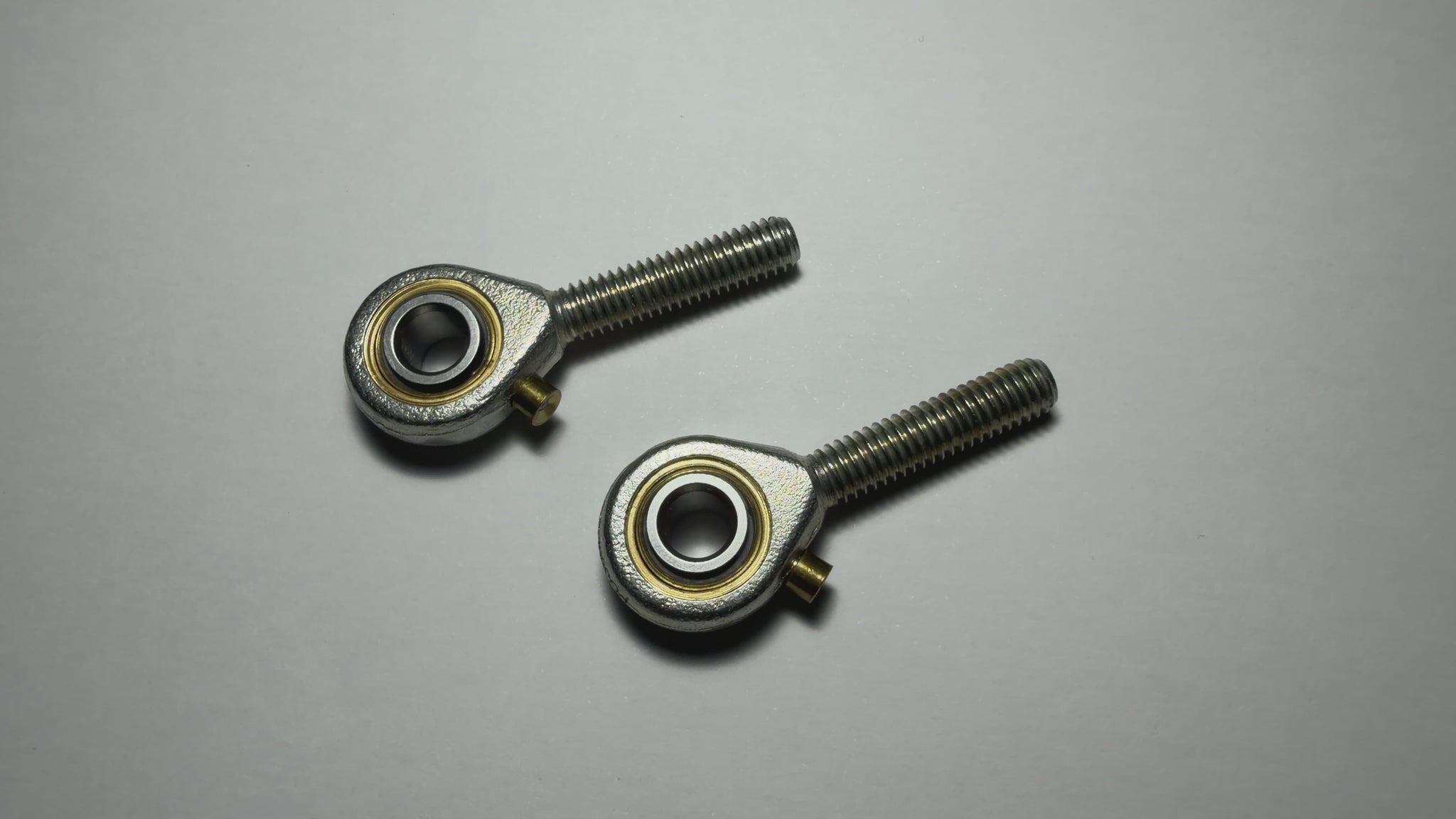

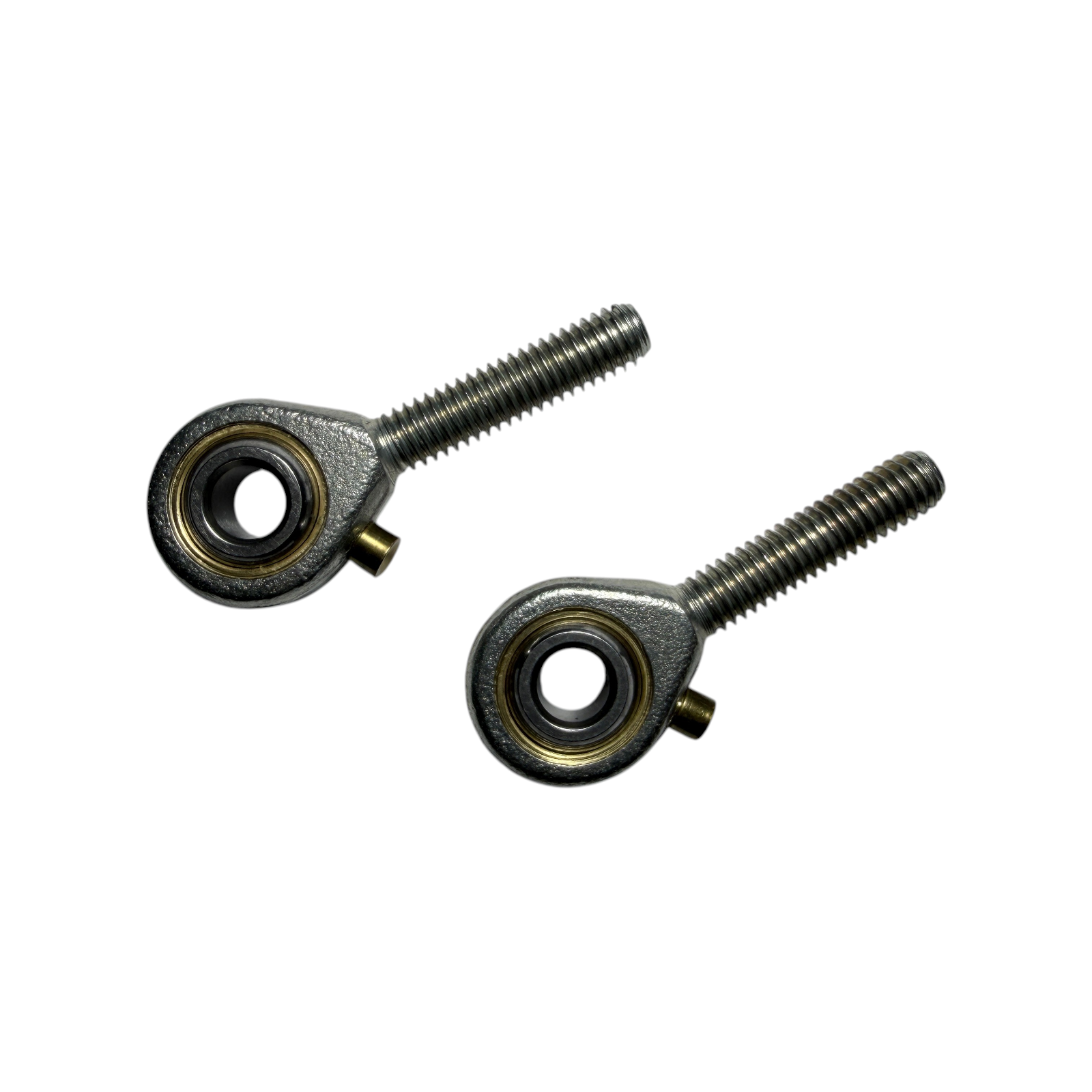

M6 Male Rod End Bearing POS6 — 2 Pack Rose Joints, RH Thread

Precision-engineered M6 male rod end bearings (POS6) for motorsport, engineering and industrial applications. Also known as rose joints, spherical bearings or heim joints. Supplied as a pair with 6mm bore and right-hand thread.

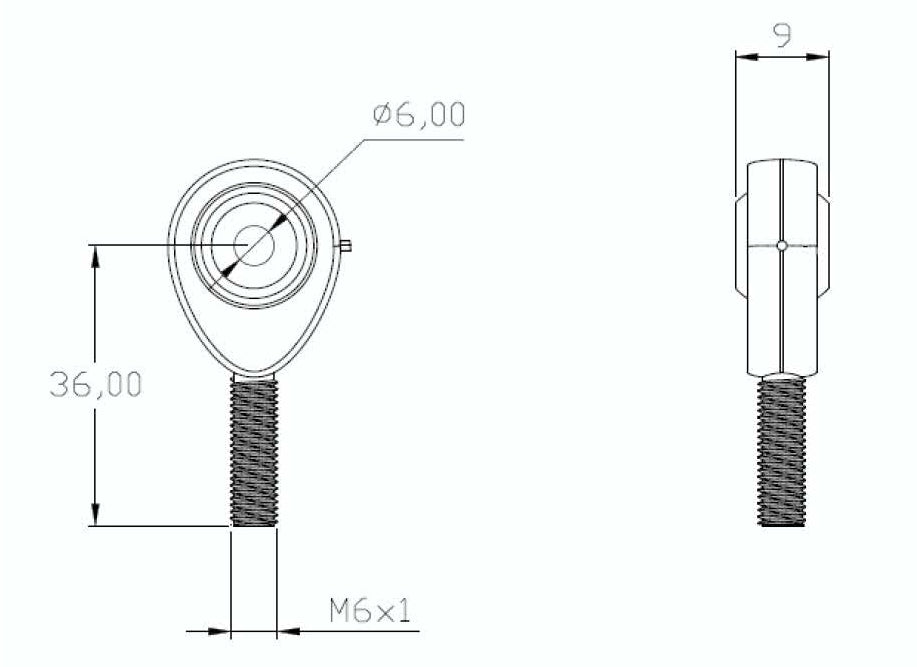

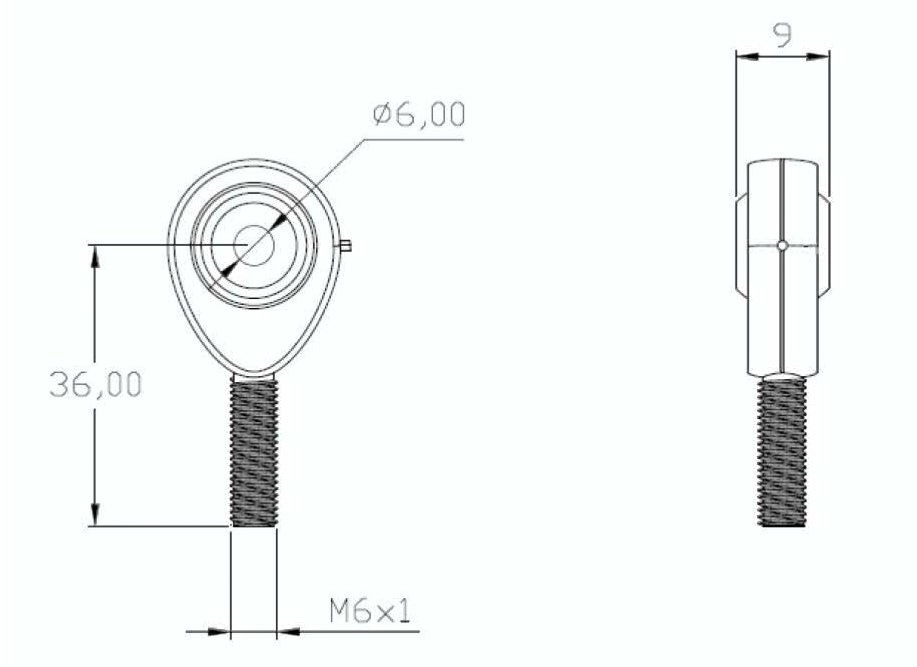

Key Specifications

• Model: POS6 (male thread, positive series)
• Thread: M6 × 1.0 right-hand
• Bore diameter: 6mm
• Construction: Zinc plated steel body
• Bearing type: Self-lubricating spherical
• Angular range: ±13° typical
• Load rating: Up to ~500kg static

Perfect For

• Motorsport suspension linkages and tie rods
• Throttle and clutch control mechanisms
• Robotic arm and precision positioning
• Agricultural machinery linkages
• Hydraulic actuator mounts
• Custom kit-car builds and CNC projects

Installation Tips

• Always use lock nuts to prevent loosening under vibration
• Don't over-tighten the pivot pin — the bore must move freely
• Fit into female thread (or use a jam nut for adjustable rod applications)
• Pair with a matching female PHS6 rod end for adjustable linkages

Frequently Asked Questions

What's the difference between POS and PHS? POS is male (threaded stud outward). PHS is female (threaded hole inward). Read our full guide: Rod End Bearing Guide.

Are these self-lubricating? Yes — the internal PTFE liner provides smooth operation with no grease required. Periodic light lubrication extends life further.

Can I use these outdoors? Yes for sheltered outdoor use. For marine or heavy corrosive environments, stainless steel versions are recommended.

Is this right-hand or left-hand thread? Right-hand (standard clockwise). Left-hand versions available on request.
