M6 Female Rod End Bearing PHS6 6mm Bore LH Rose Joint – 2 Pack | SpringFix UK
M6 Female Rod End Bearing PHS6 6mm Bore LH Rose Joint – 2 Pack | SpringFix UK
Regular price
£8.99 GBP
Regular price
Sale price
£8.99 GBP
Taxes included.
Shipping calculated at checkout.

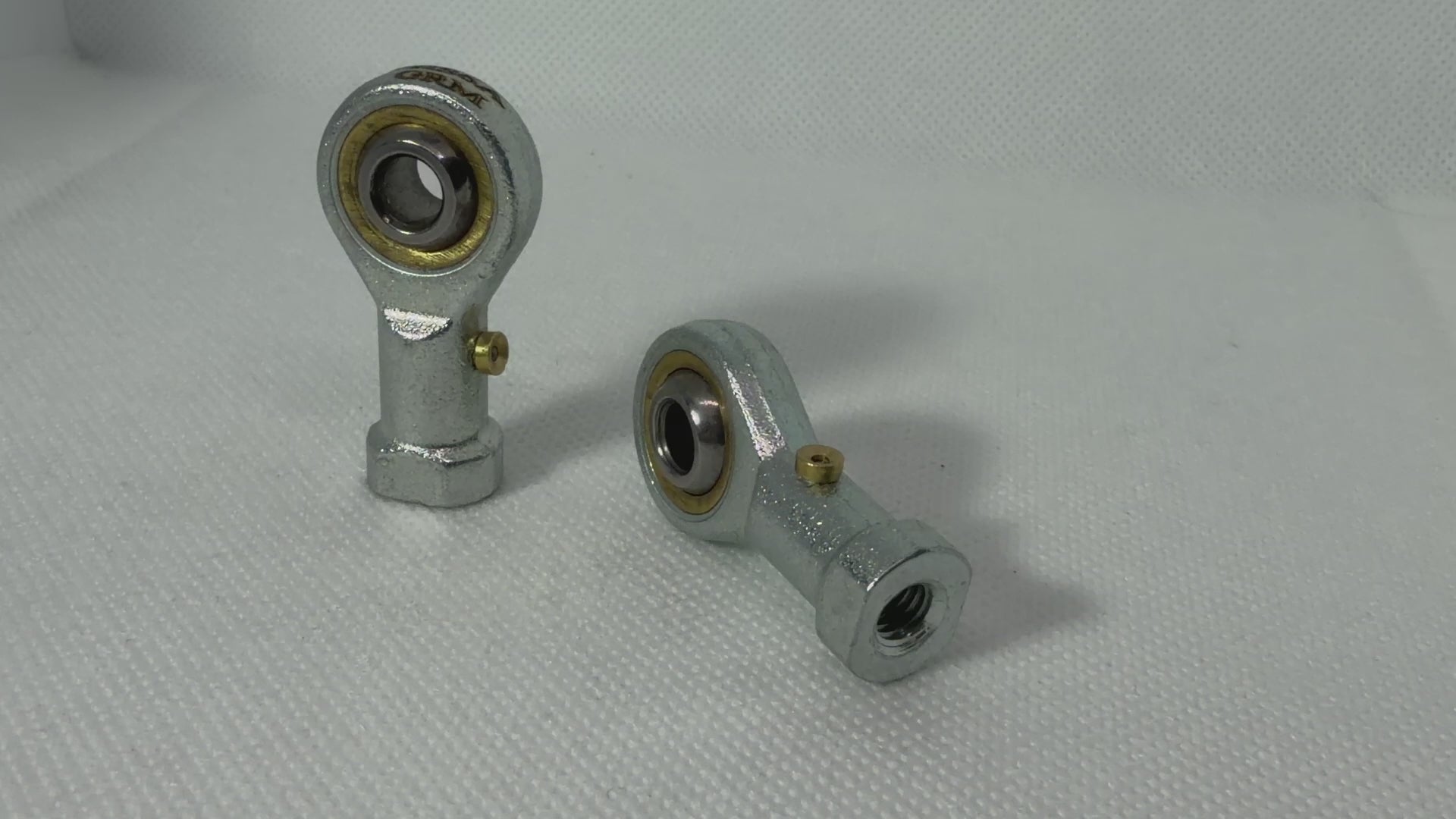

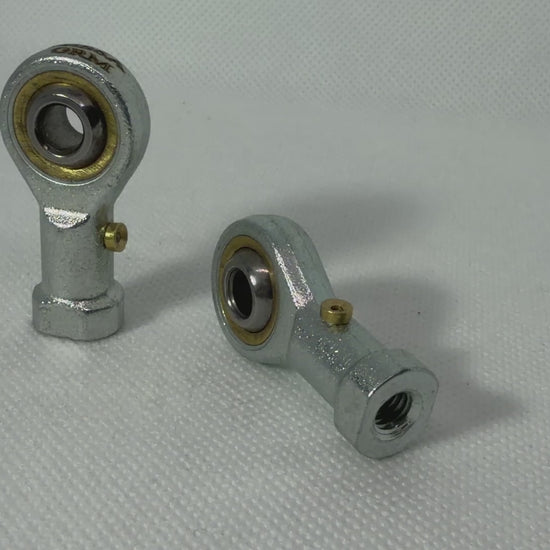

M6 Female Rod End Bearing PHS6 LH — 2 Pack Rose Joints, Left Hand Thread
Precision-engineered M6 female rod end bearings (PHS6) with LEFT HAND thread for motorsport, engineering, and industrial applications where reverse thread action is required.
⚠️ LEFT HAND THREAD VERSION
This listing is for the LEFT HAND (LH) thread variant. For standard right-hand thread PHS6 rod ends, please see our regular RE009 PHS6 listing. Do not confuse LH and RH — they are not interchangeable.
This listing is for the LEFT HAND (LH) thread variant. For standard right-hand thread PHS6 rod ends, please see our regular RE009 PHS6 listing. Do not confuse LH and RH — they are not interchangeable.
Key Features
- Thread Size: M6
- Thread Direction: Left Hand (LH) — reverse thread
- Bore Diameter: 6mm
- Type: Female (PHS6) — internal thread receiver
- Housing: Zinc-plated steel body
- Ball: Chrome-plated hardened steel
- Self-lubricating: PTFE-impregnated liner
- Misalignment: Up to 13° angular tolerance
- Standard: DIN 12240-1 / ISO 12240-1 dimensional compliance
- Quantity: 2 rod end bearings per pack (matched pair)
What Is a Left Hand Thread Rod End?
Left hand thread rod ends have reverse threading — they tighten anti-clockwise rather than the standard clockwise direction. LH thread is essential for turnbuckle systems, adjustable linkages, and any application where two rod ends need to tighten or loosen together (one RH, one LH).
Common Applications
- Motorsport gear linkages — Reverse-action shift mechanisms
- Track rods & tie rods — Steering geometry adjustment (RH + LH pair)
- Turnbuckle assemblies — Tensioning systems, wire rigging
- Kit car & race car builds — Custom throttle and clutch cables
- Robotics & automation — Precision linear actuator ends
- Industrial machinery — Pivot points, control linkages
- Marine rigging — Adjustable stays and shrouds
Installation Notes
- Thread onto matching M6 LH male rod (POS6 LH) or LH-threaded rod
- Do not force onto a right-hand thread — will damage both parts
- Apply thread locker (medium strength) for vibration environments
- Load rating decreases with misalignment beyond 10° — keep centred where possible
PHS6 LH vs. Standard PHS6 (RH)
| Feature | PHS6 LH (This Product) | PHS6 (Standard) |
|---|---|---|
| Thread Direction | Left Hand (LH) | Right Hand (RH) |
| Tightening Direction | Anti-clockwise | Clockwise |
| Typical Use | Turnbuckles, motorsport pairs | General purpose |
🚚 UK Same-Day Dispatch
Orders placed Monday to Sunday before 16:00 are dispatched the same day. We ship via Royal Mail, Yodel, UPS or DPD depending on parcel size and destination. Free UK delivery on all orders.
📖 Related Guides
Why Choose SpringFix UK?
Trusted UK seller with over 1,700 positive eBay feedbacks. UK stock, UK dispatched, engineering-grade DIN-standard products. Left hand thread rod ends are a specialist niche — we hold UK stock so you don't have to wait weeks for imports.
