Heavy Duty Ottoman Bed Lift Mechanism Set 1500mm Frame & Gas Struts – 140kg

Heavy Duty Ottoman Bed Lift Mechanism Set – 1500 mm Frame

A complete heavy-duty lift kit for foot-end opening ottoman and storage beds. The long 1500 mm top frame supports the mattress platform along its length, while the gas struts take the effort out of lifting, giving easy access to the storage space underneath.

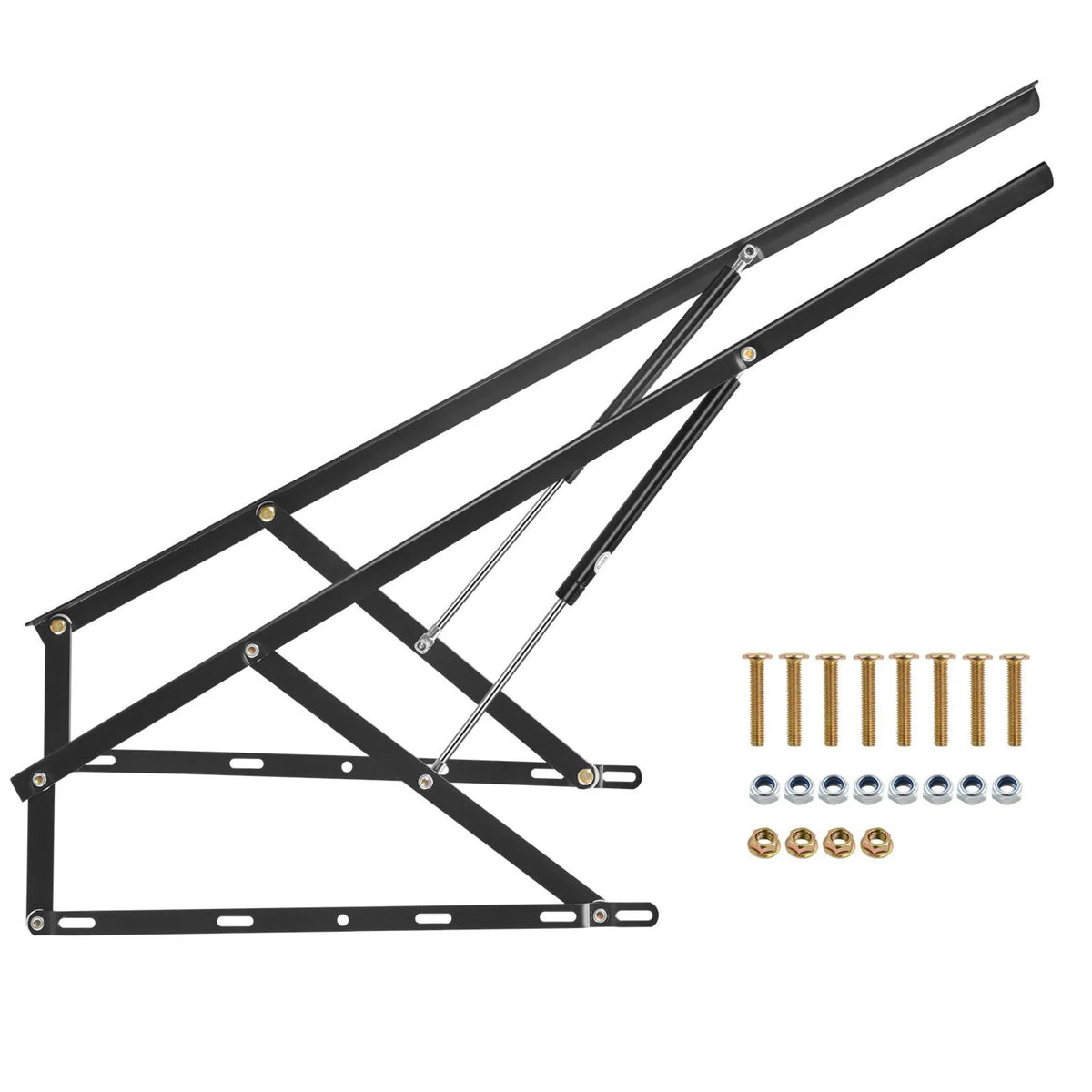

What's in the Box

• 1 × left-hand lift mechanism and 1 × right-hand lift mechanism
• 2 × gas struts (530 mm)
• 8 × M8 × 50 mm bolts
• 8 × M8 nylon-insert locking nuts
• 4 × M8 flange nuts

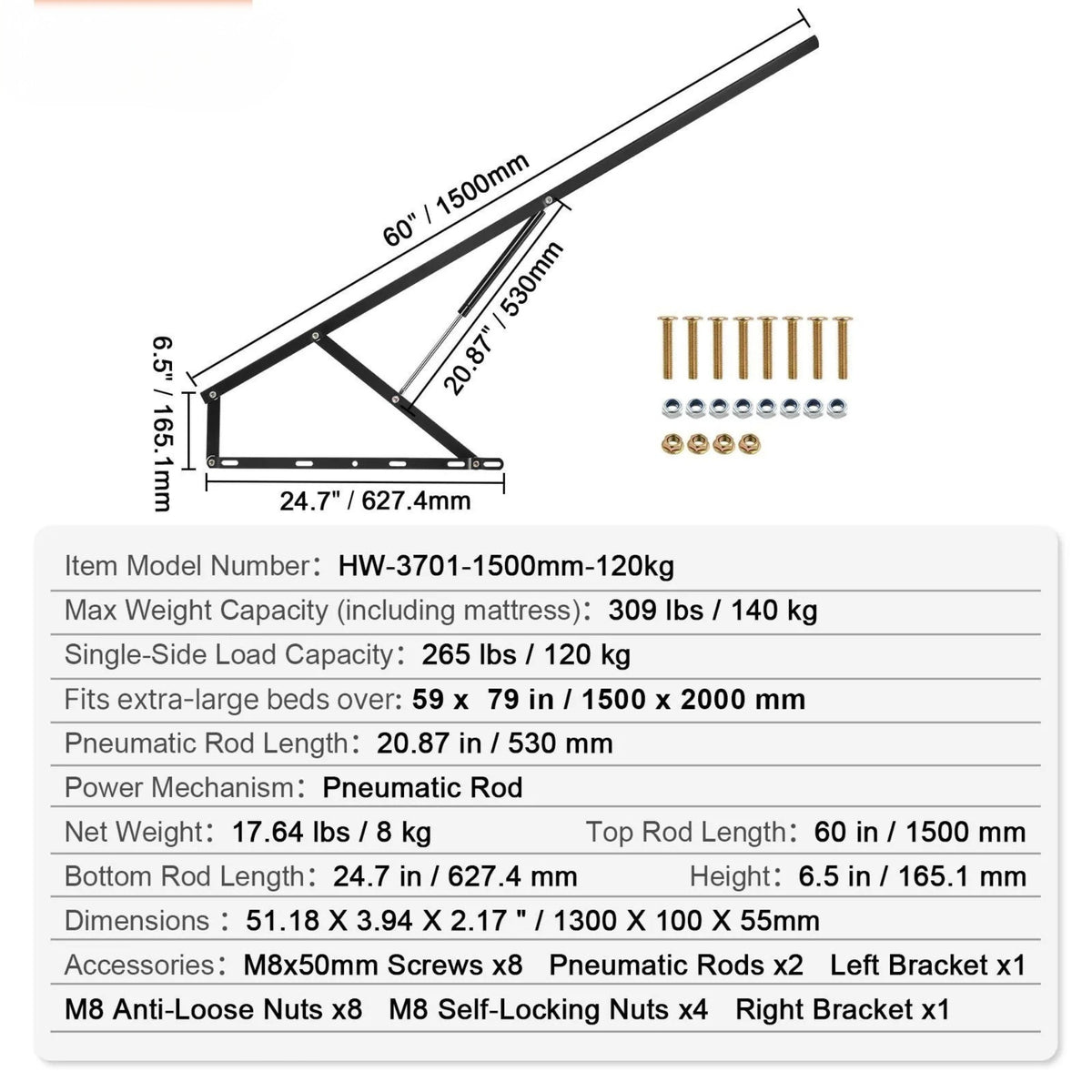

Key Specifications

Perfect For

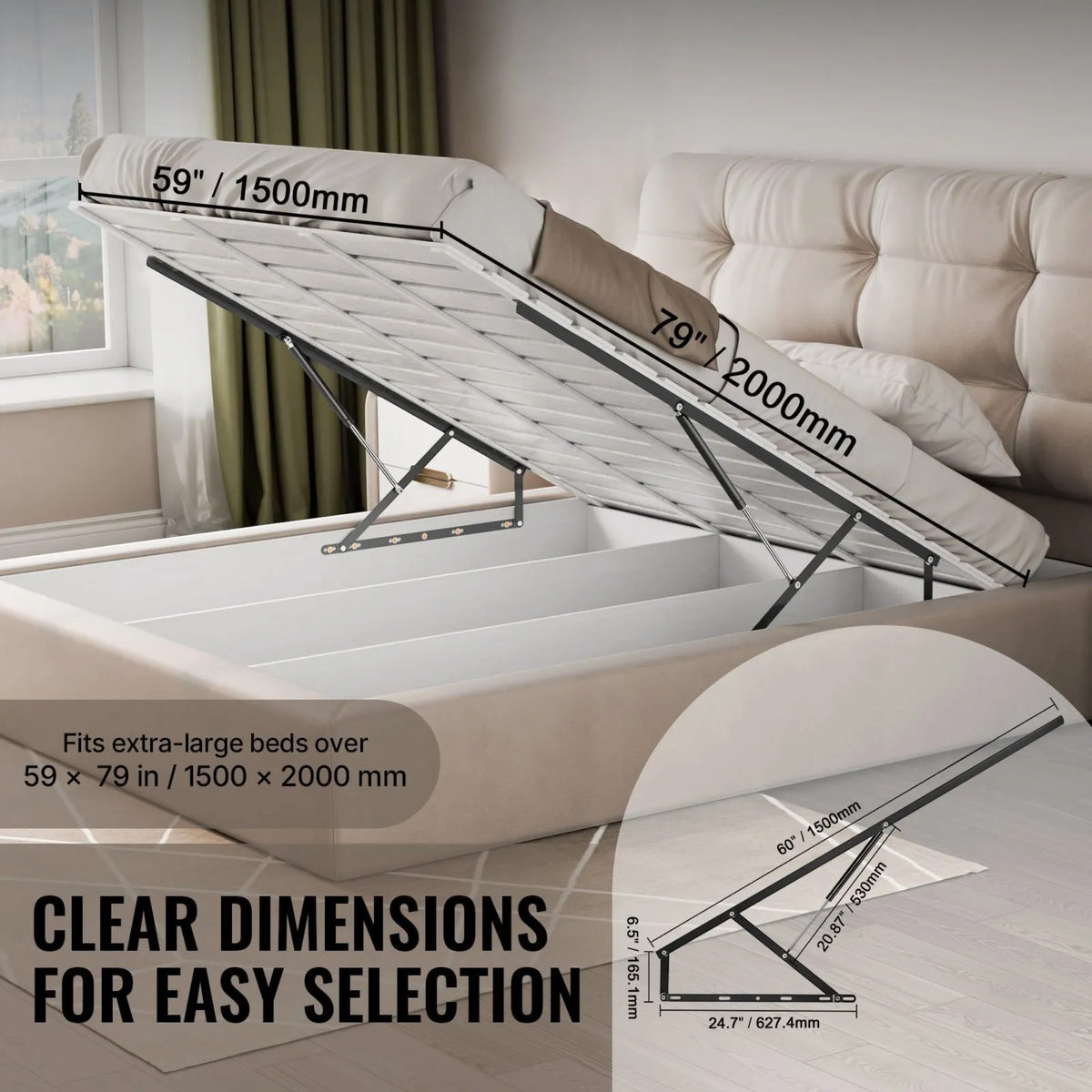

• Larger ottoman and lift-up storage beds of 1500 × 2000 mm and above – typically king size and larger
• Heavy mattresses and solid platforms up to 140 kg
• DIY storage bed builds and full lift mechanism replacement

Check Compatibility Before You Order

• This is a foot-end opening mechanism. It is not suitable for side-opening beds.
• Choose by weight, not just bed size: the platform and mattress together must not exceed 140 kg.
• The bottom rails need solid side panels to fix to, and the top frames fix to the underside of the platform.
• Replacing an existing mechanism? Compare the frame length and hole positions with your old one first.

Not sure which set you need? Send us a photo of your bed frame and your current mechanism – we'll confirm the right option before you buy.

Need a Different Size?

• Heavy Duty 1200mm Set – up to 70kg (approx. 1500 × 1800mm platforms)
• Compact hinge-style sets with 360mm struts: 750N Ottoman Bed Lift Mechanism Set · 1200N Ottoman Bed Lift Mechanism Set

Installation Tips

• Fit the mechanisms first, attach the platform, then fit the gas struts with the bed open.
• Install the gas struts with the piston rod facing down.
• Always test with the mattress fitted – the struts are balanced against its weight.
• Two people are recommended for fitting.
