Heavy Duty Ottoman Bed Lift Mechanism Set 1200mm Frame & Gas Struts – 70kg

Heavy Duty Ottoman Bed Lift Mechanism Set – 1200 mm Frame

A complete heavy-duty lift kit for foot-end opening ottoman and storage beds. The long 1200 mm top frame supports the mattress platform along its length, while the gas struts take the effort out of lifting, giving easy access to the storage space underneath.

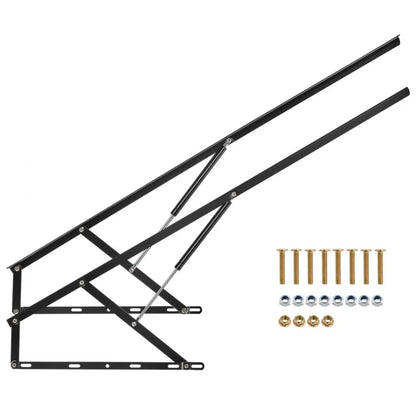

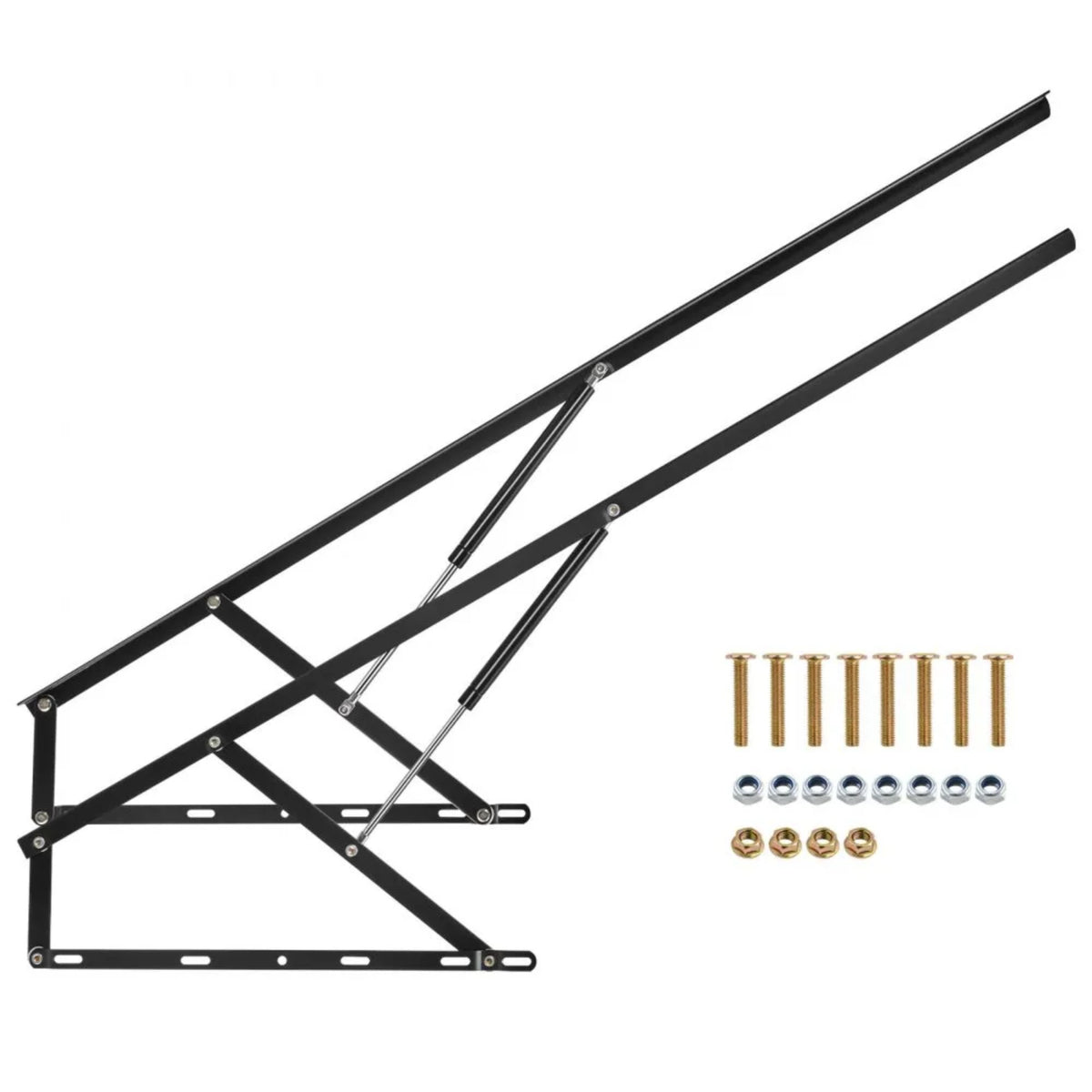

What's in the Box

• 1 × left-hand lift mechanism and 1 × right-hand lift mechanism
• 2 × gas struts (530 mm)
• 8 × M8 × 50 mm bolts
• 8 × M8 nylon-insert locking nuts
• 4 × M8 flange nuts

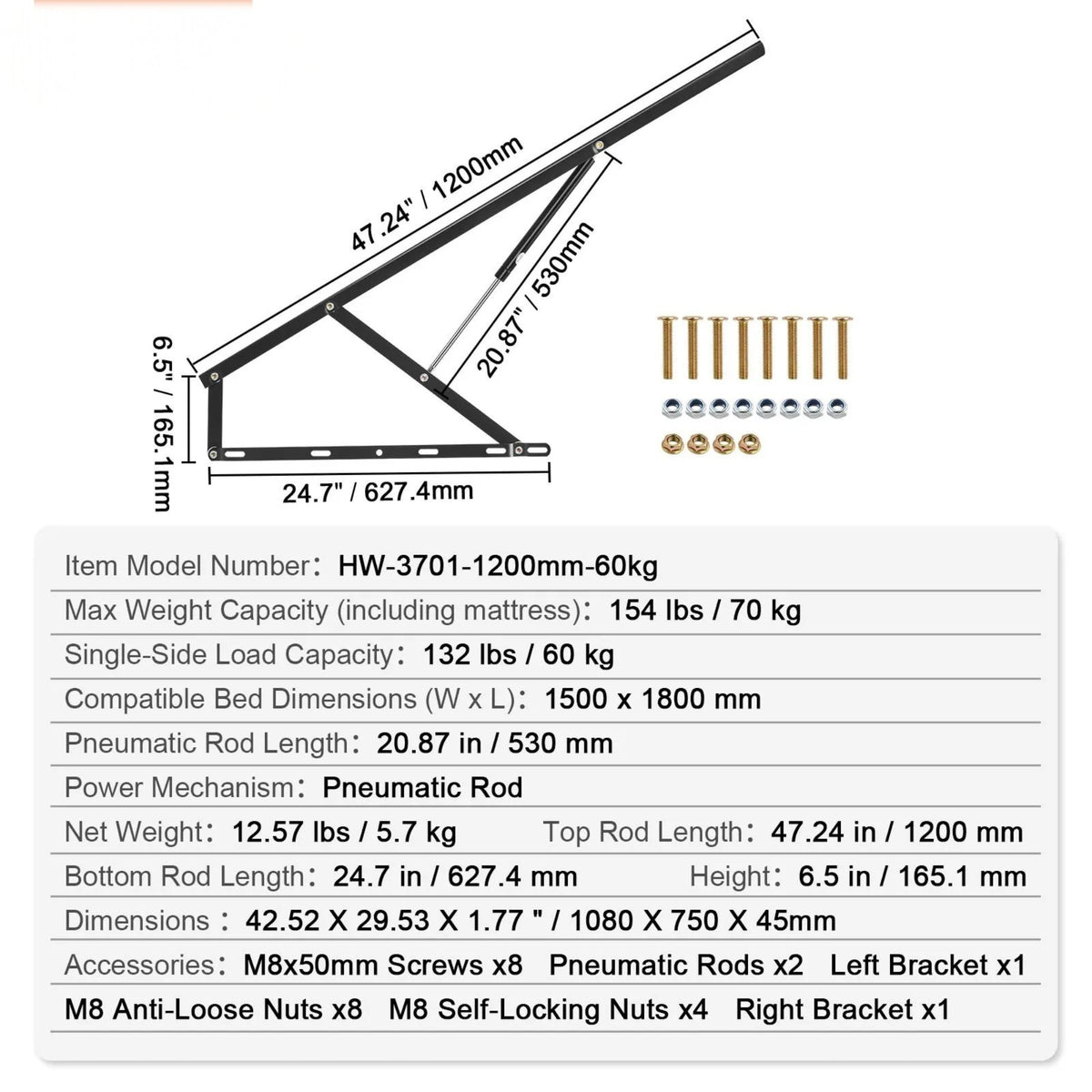

Key Specifications

Perfect For

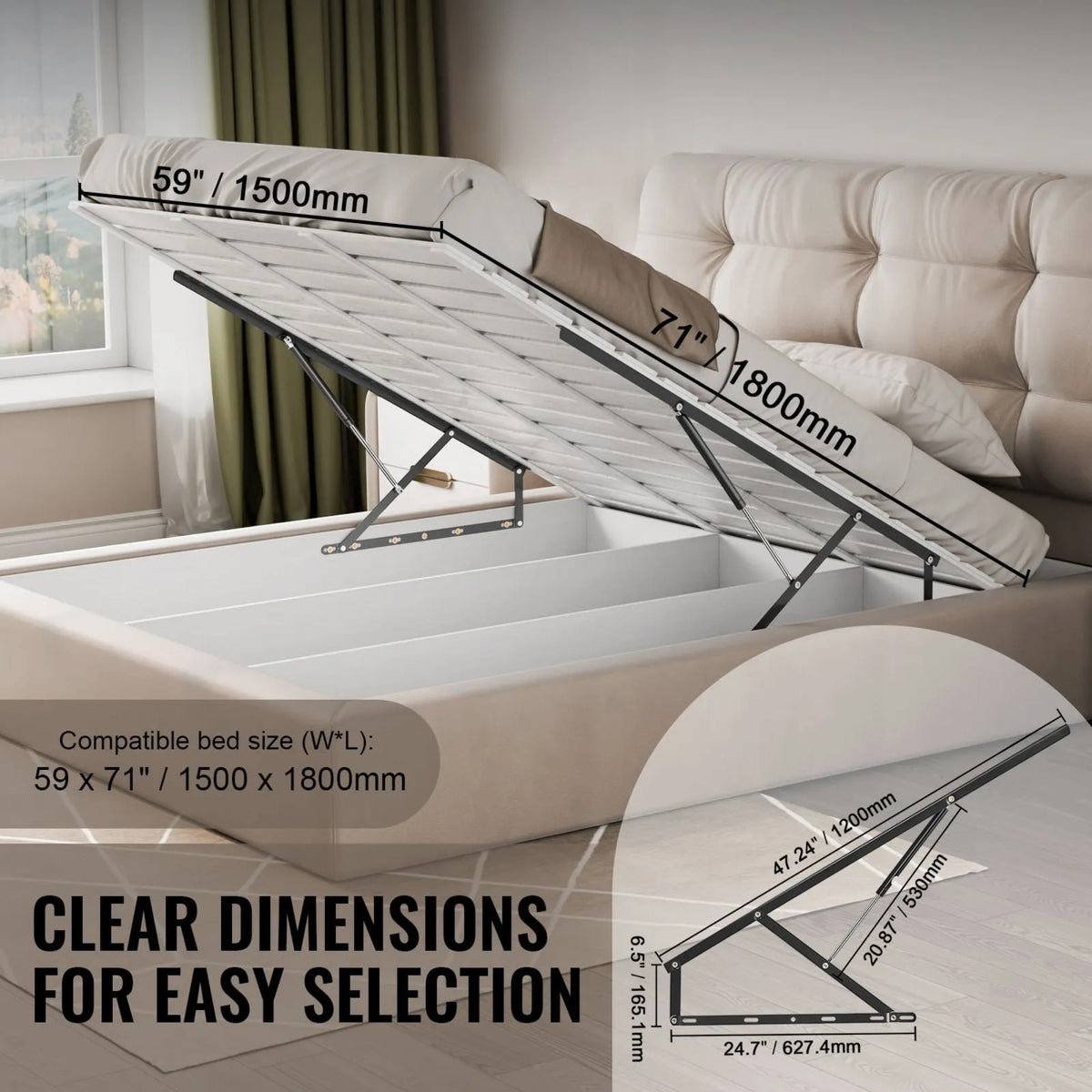

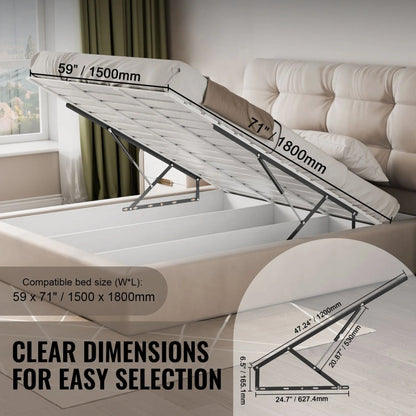

• Ottoman and lift-up storage beds with a platform of around 1500 × 1800 mm
• Small double and double DIY storage bed builds
• Replacing a worn full-frame lift mechanism of the same size

Check Compatibility Before You Order

• This is a foot-end opening mechanism. It is not suitable for side-opening beds.
• Choose by weight, not just bed size: the platform and mattress together must not exceed 70 kg.
• The bottom rails need solid side panels to fix to, and the top frames fix to the underside of the platform.
• Replacing an existing mechanism? Compare the frame length and hole positions with your old one first.

Not sure which set you need? Send us a photo of your bed frame and your current mechanism – we'll confirm the right option before you buy.

Need a Different Size?

• Heavy Duty 1500mm Set – up to 140kg (king size and larger)
• Compact hinge-style sets with 360mm struts: 750N Ottoman Bed Lift Mechanism Set · 1200N Ottoman Bed Lift Mechanism Set

Installation Tips

• Fit the mechanisms first, attach the platform, then fit the gas struts with the bed open.
• Install the gas struts with the piston rod facing down.
• Always test with the mattress fitted – the struts are balanced against its weight.
• Two people are recommended for fitting.

Dispatch & Delivery

Orders placed Monday to Sunday before 16:00 are dispatched the same day. Shipped via Royal Mail or Evri depending on parcel size.

Why Choose SpringFix UK?

UK-based specialist in gas struts and ottoman bed lift parts, with over 1,700 positive eBay feedbacks. UK stock and friendly technical help when you need it.
