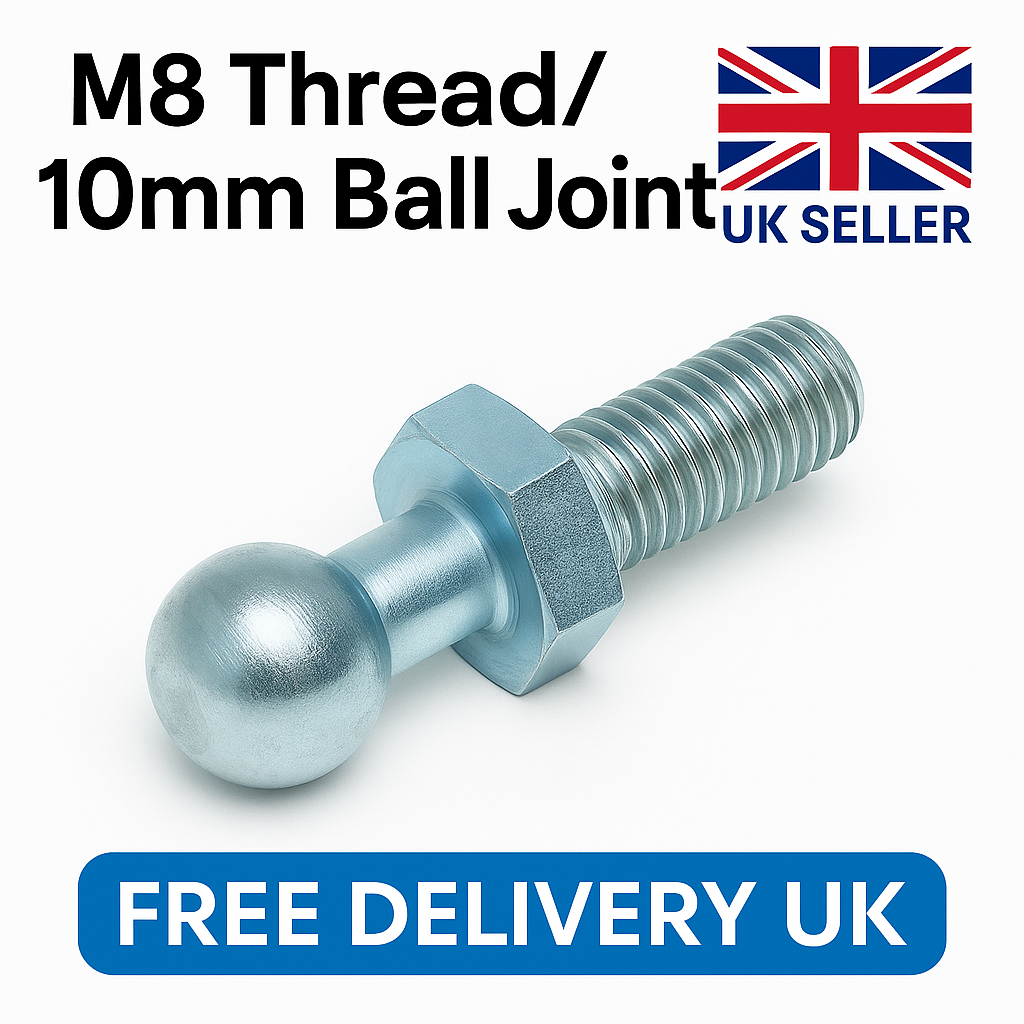

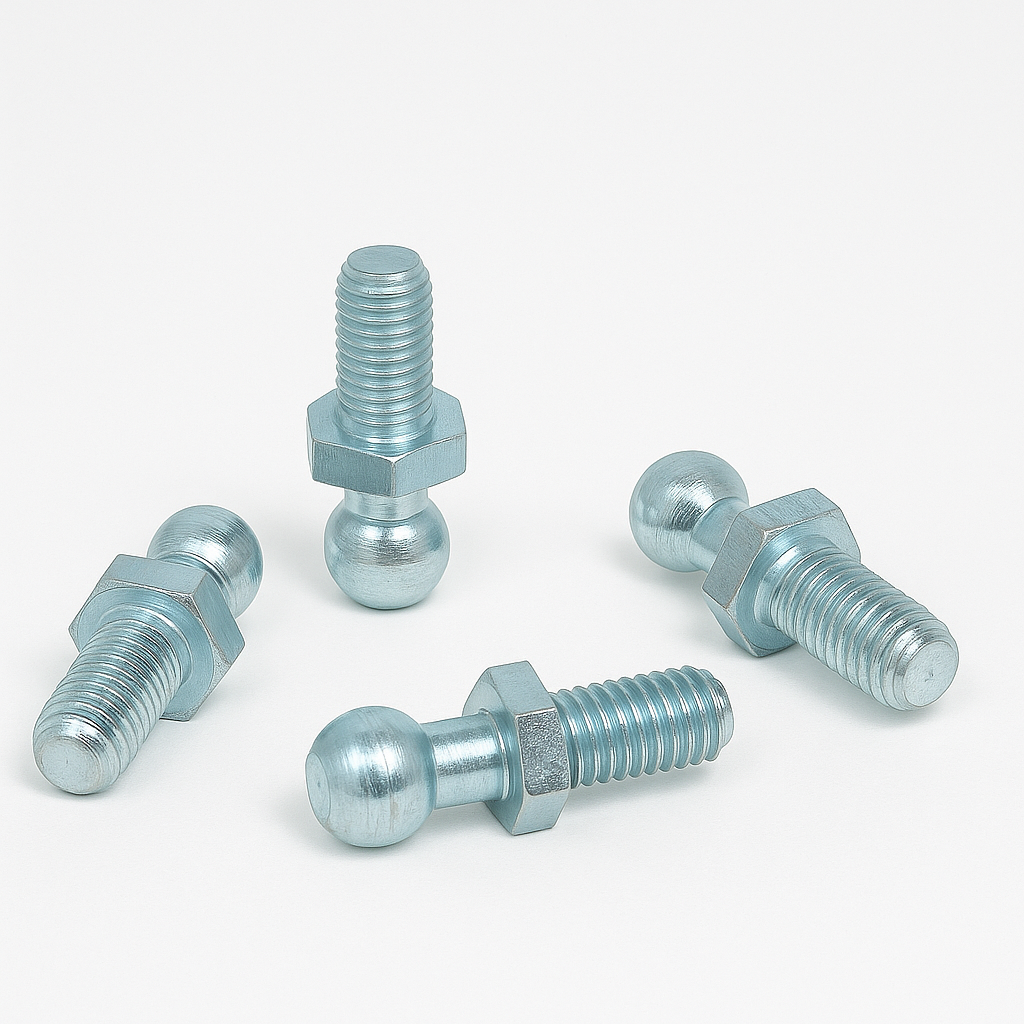

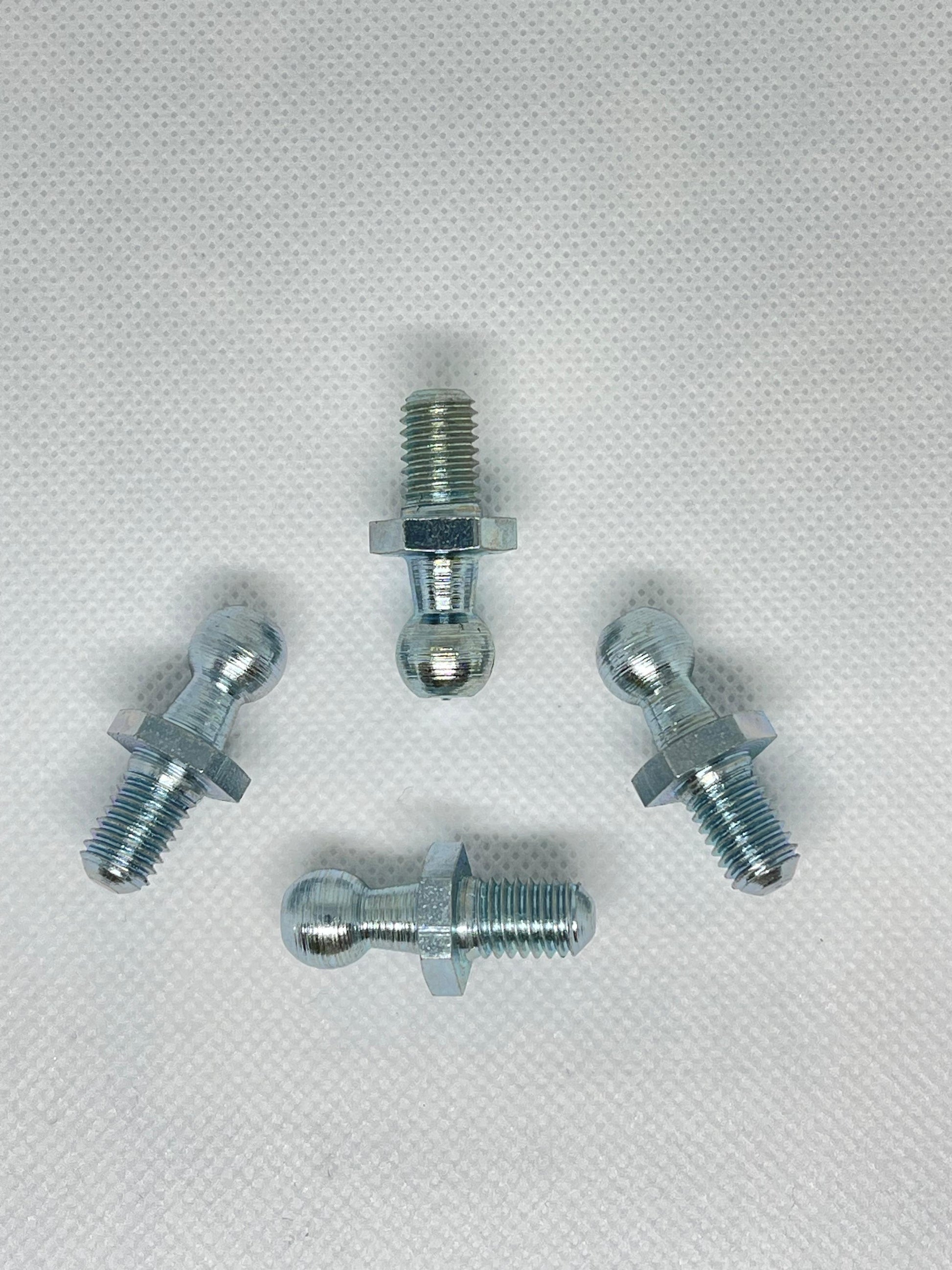

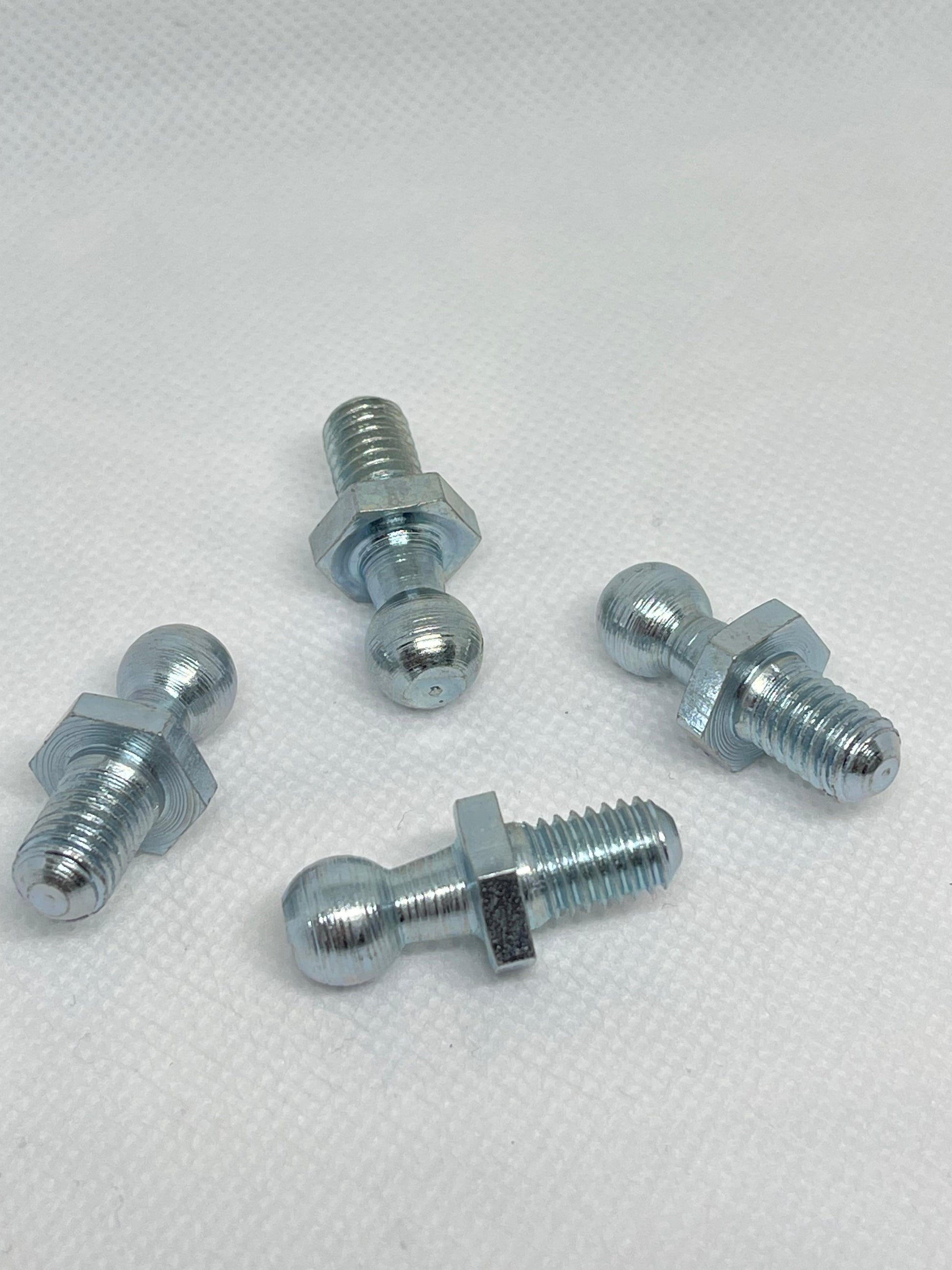

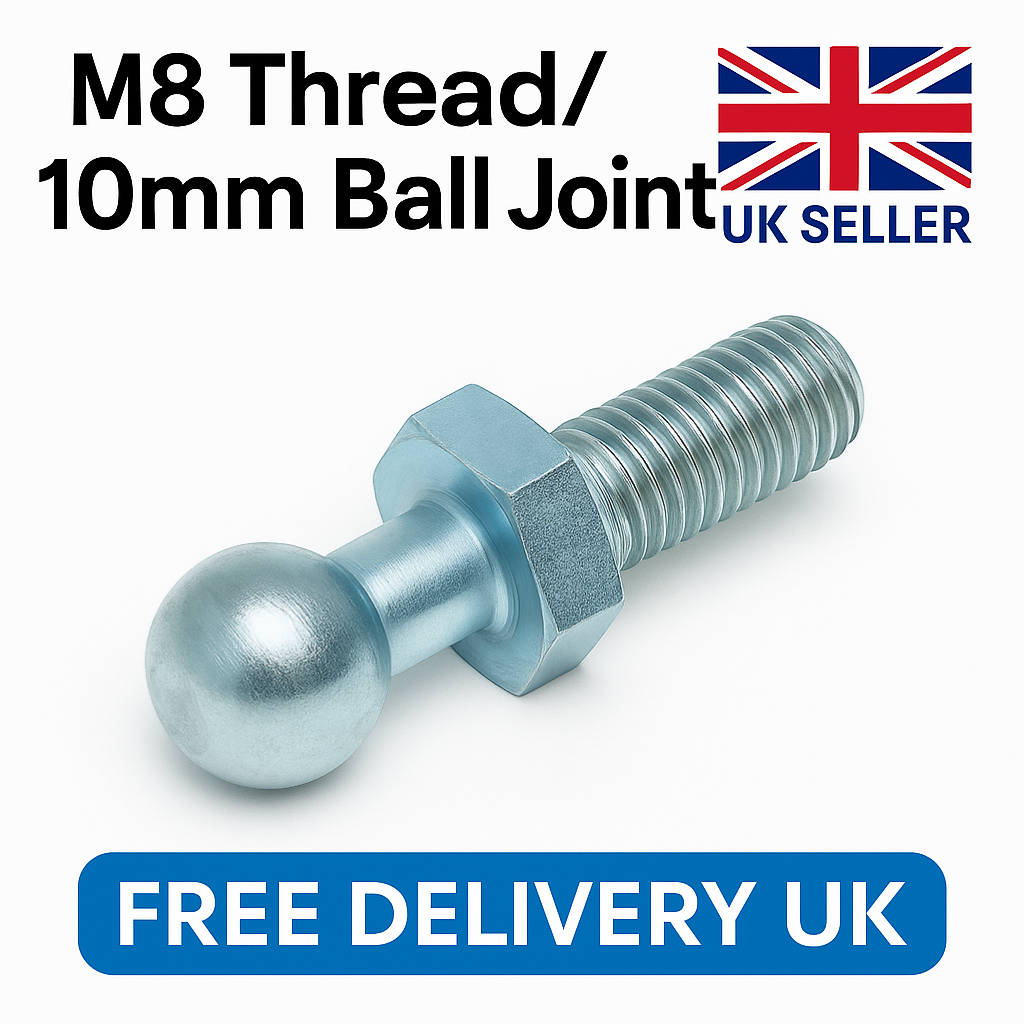

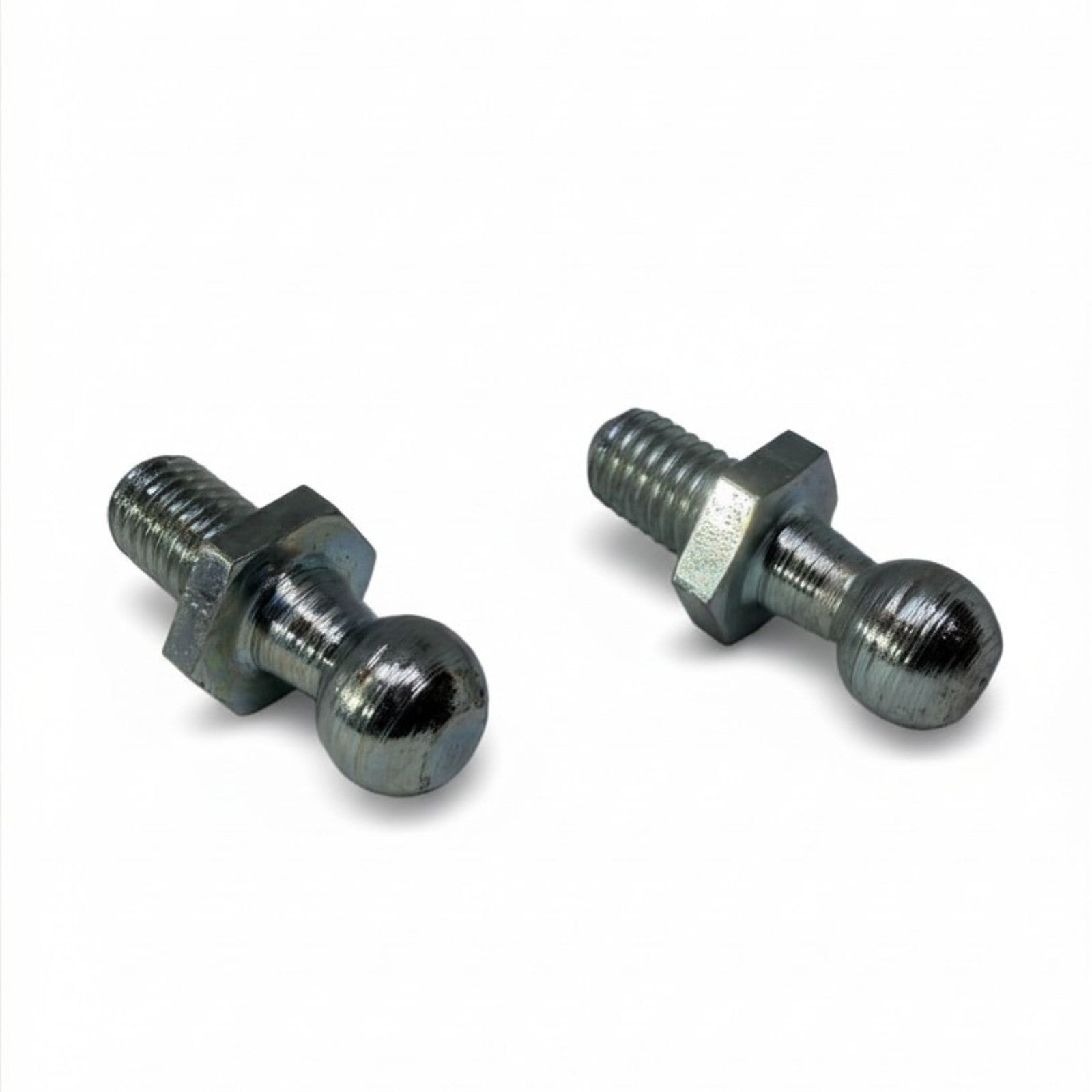

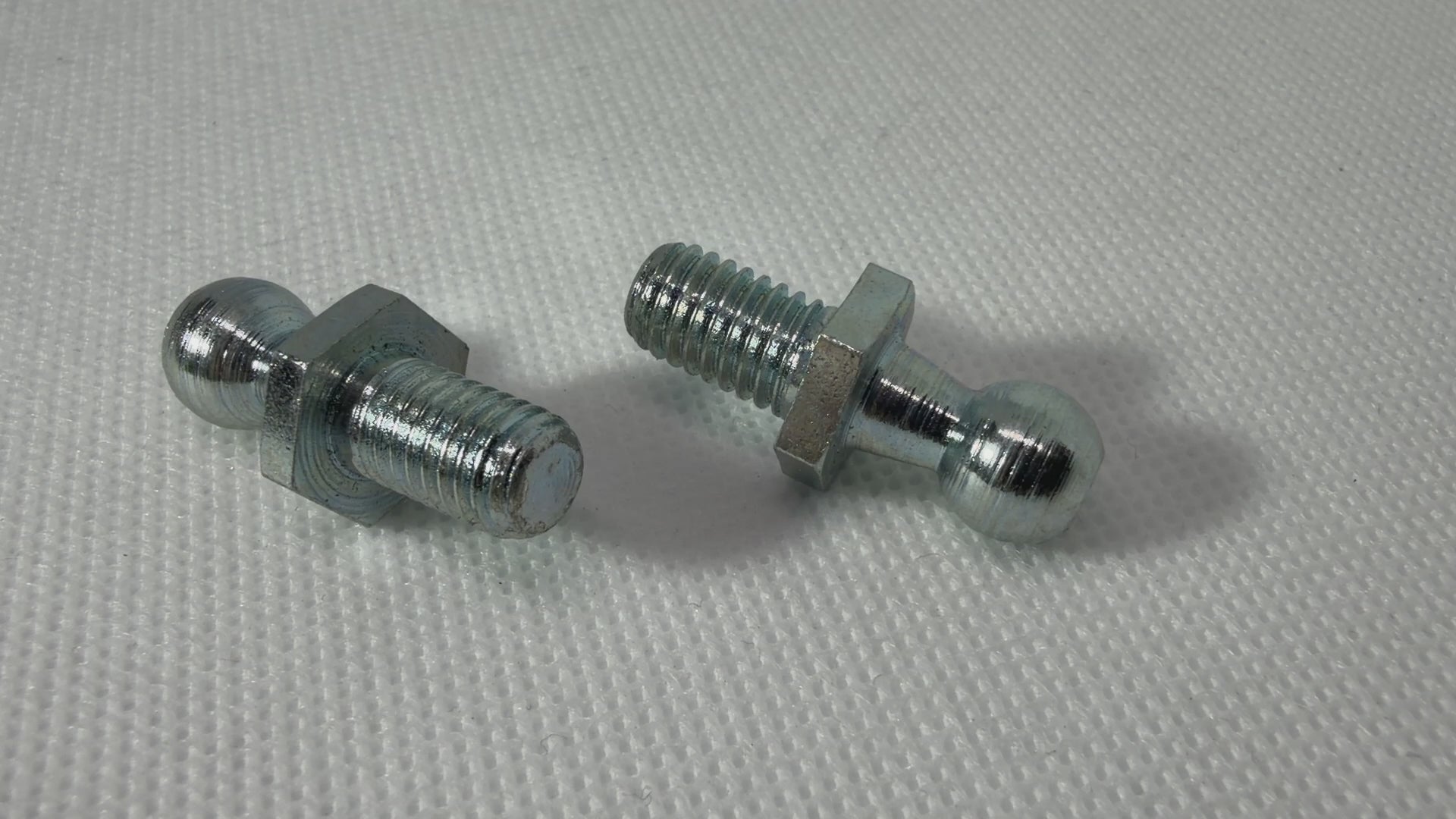

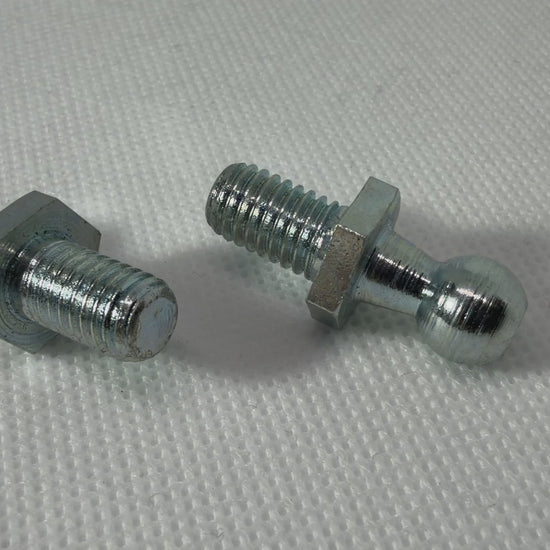

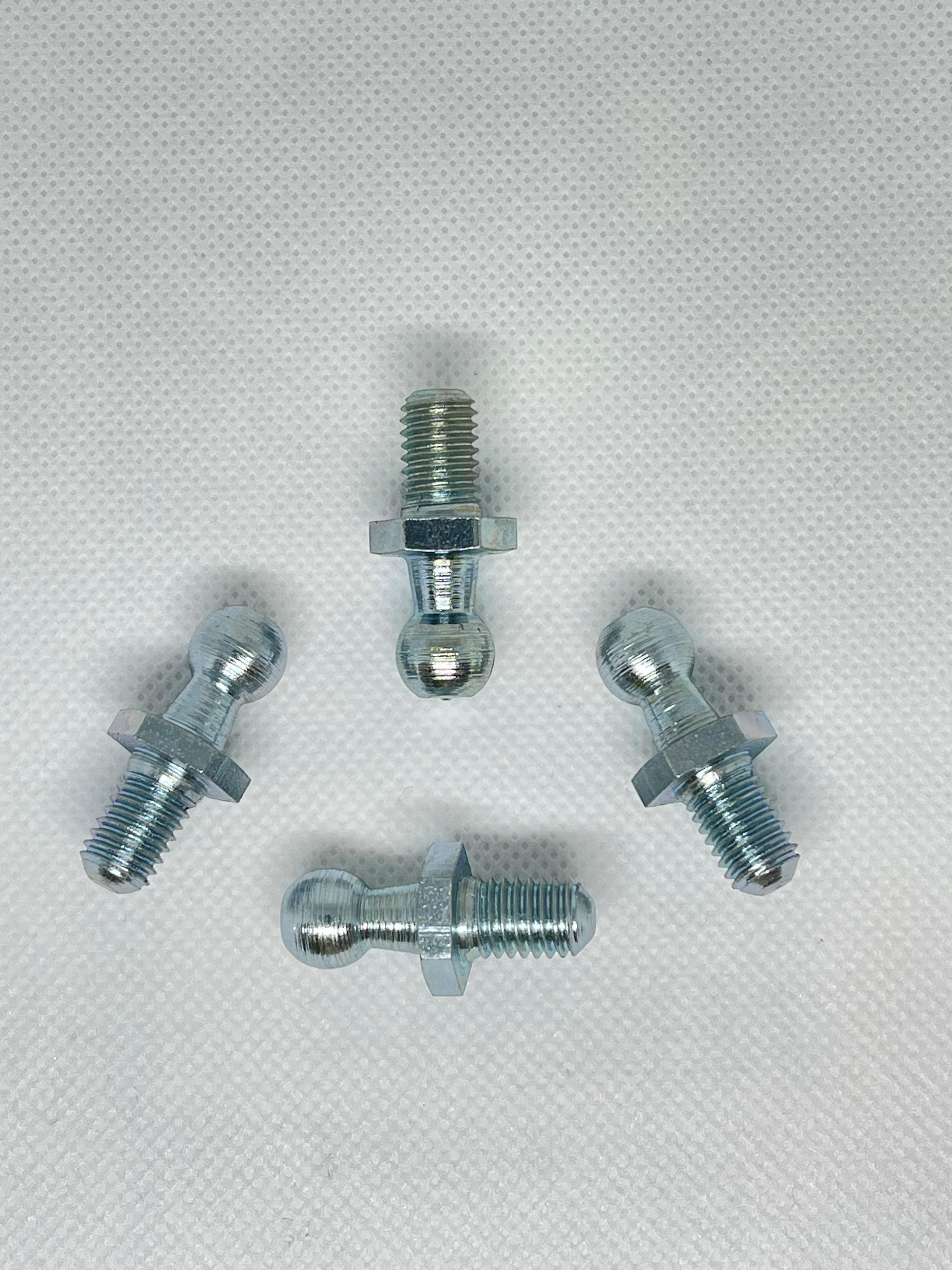

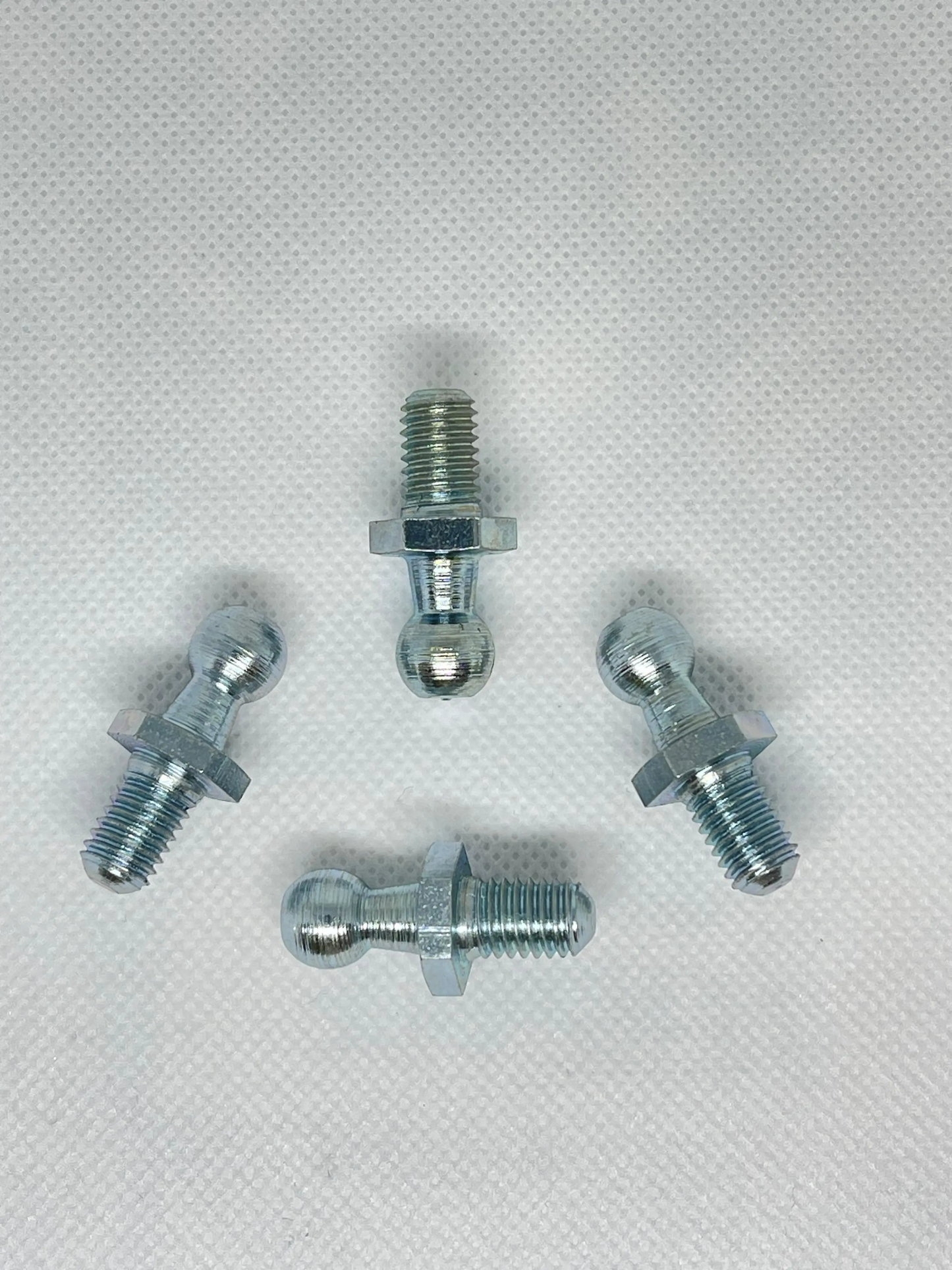

M8 Gas Strut Ball Stud Bolt — 2 Pack, 10mm Ball DIN 71803 Zinc Plated

The most common ball stud size in UK gas strut applications. Precision-turned M8 threaded studs with 10mm ball, ideal for ottoman beds, kitchen cabinets, automotive and marine gas strut installations.

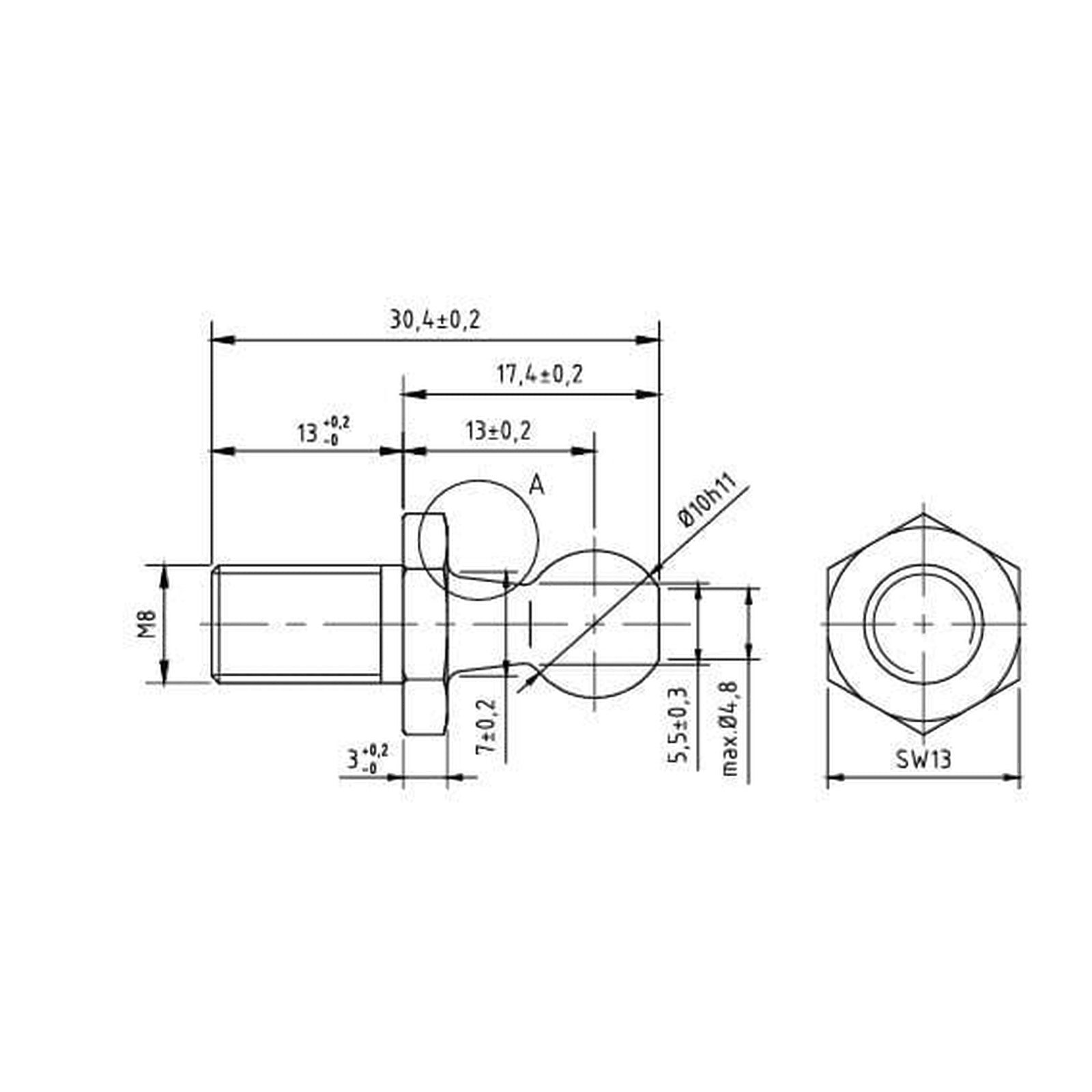

Key Specifications

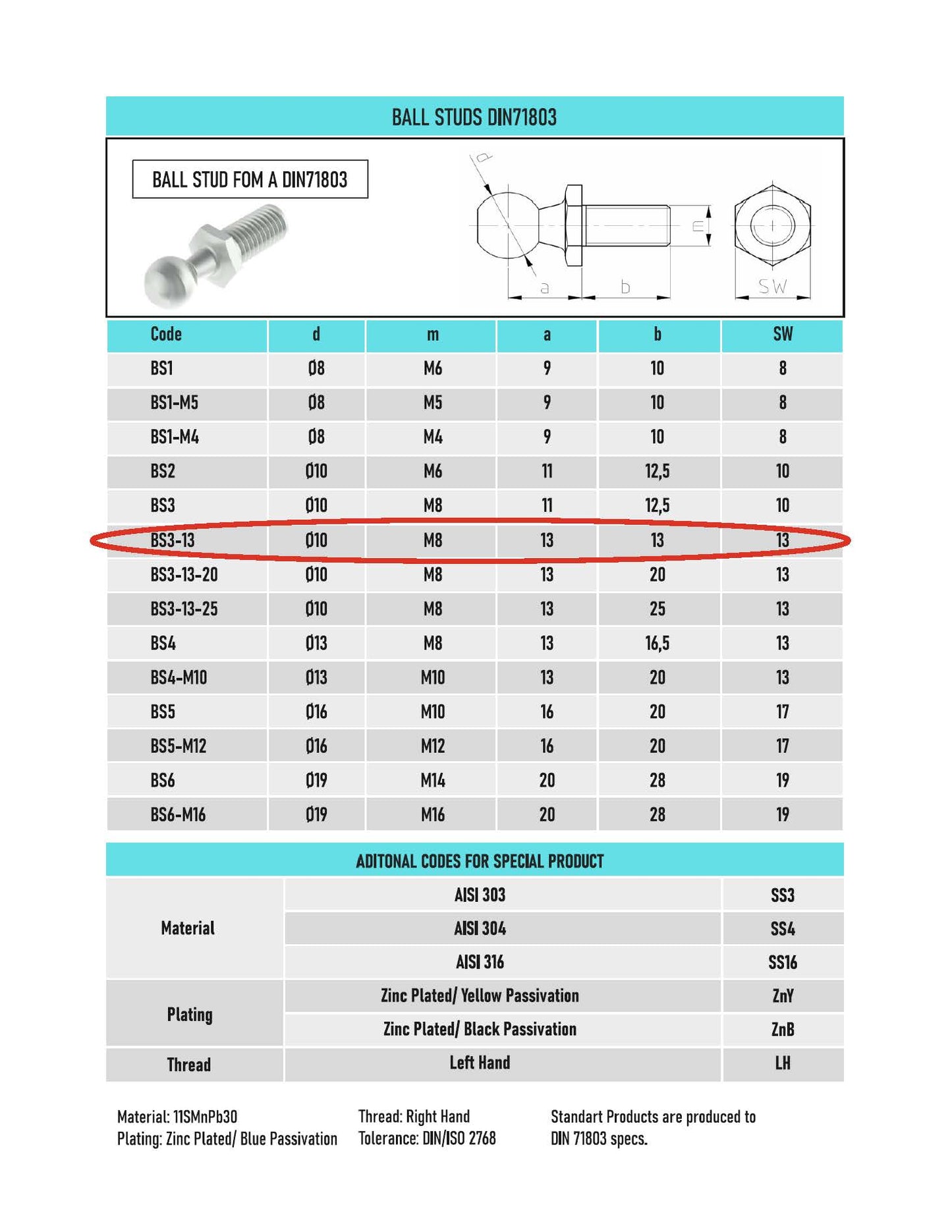

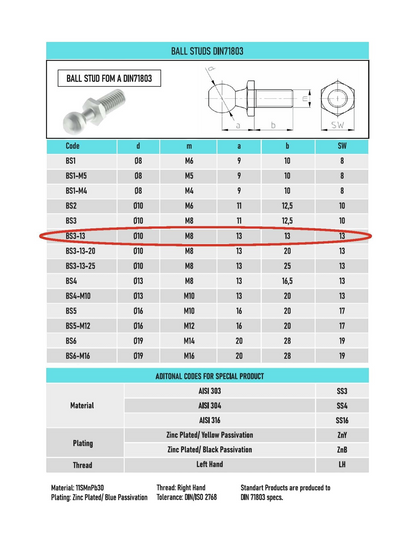

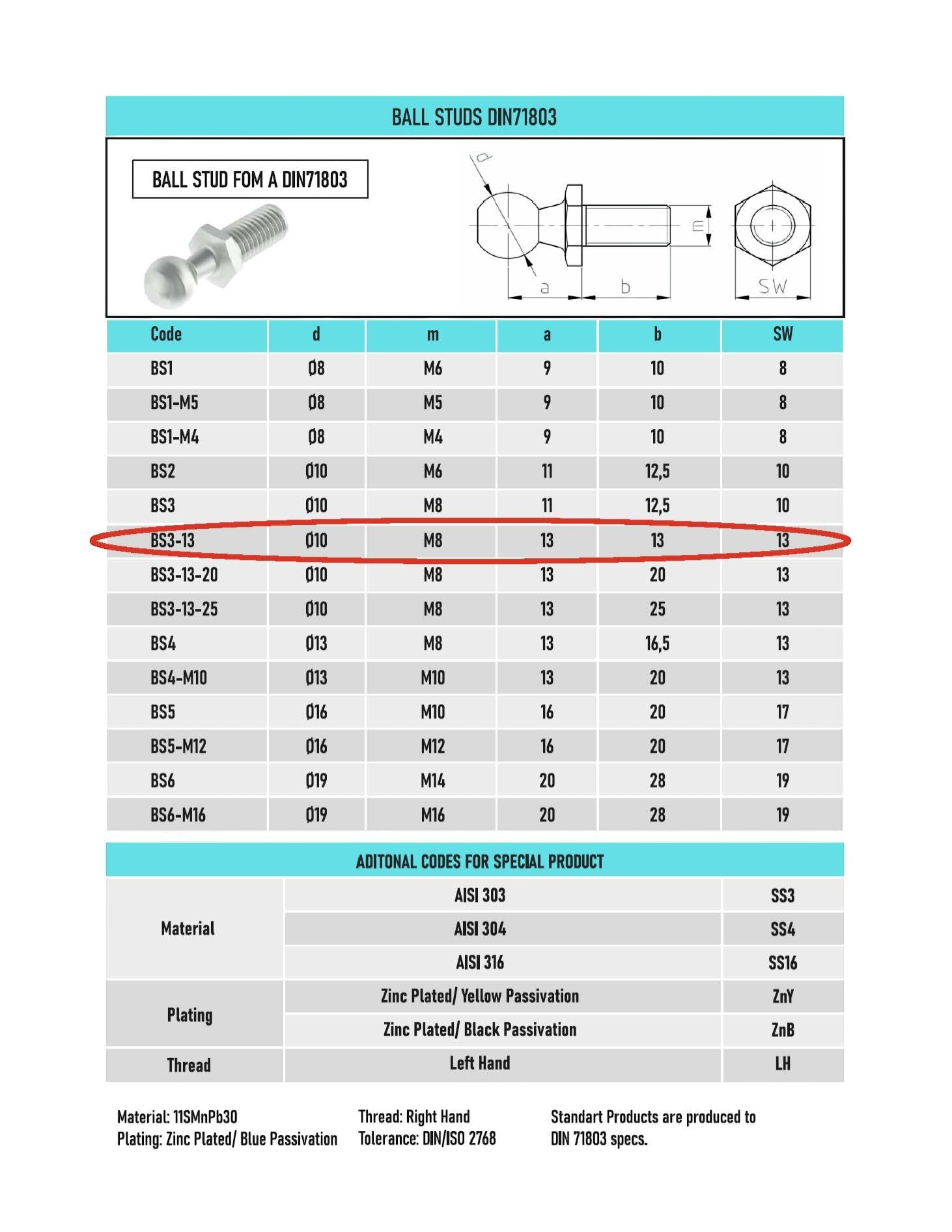

• Standard: DIN 71803
• Thread: M8 male
• Ball diameter: 10mm
• Construction: Zinc plated steel
• Finish: Precision-turned ball for smooth articulation

Perfect For

• Ottoman bed replacement mounting studs
• Automotive bonnet, boot and tailgate strut mounts
• Kitchen cabinet gas strut bracket points
• Marine hatch and locker installations
• Campervan storage compartment fixings
• Custom DIY gas strut projects

Compatibility

Pairs with our M8/10mm ball joint socket (BJ10-2588) — see the Gas Strut End Fittings collection.

Installation Tips

• Bolts through pre-drilled bracket with M8 nut and washer
• Use nyloc lock nut for vibration resistance (see M8 nyloc nuts)
• 10mm ball snaps into matching DIN 71802 socket
• Torque to 15-20Nm for typical applications
• Always install in pairs for balanced strut operation

Frequently Asked Questions

Is this the most common size? Yes — M8 thread with 10mm ball is the most widely used gas strut fitting in the UK, especially for beds, cabinets and light automotive.

Do I need a specific bracket? Any M8 clearance hole (8.5-9mm) works. See our bracket collection if you need matching brackets.

What if my strut socket is 13mm? Use our BS4 M8/13mm ball stud instead — sockets and balls must match exactly.

Is a locking nut included? No — nuts are sold separately. Nyloc lock nuts recommended.
