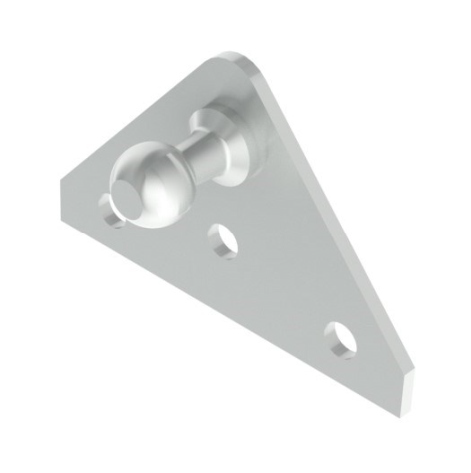

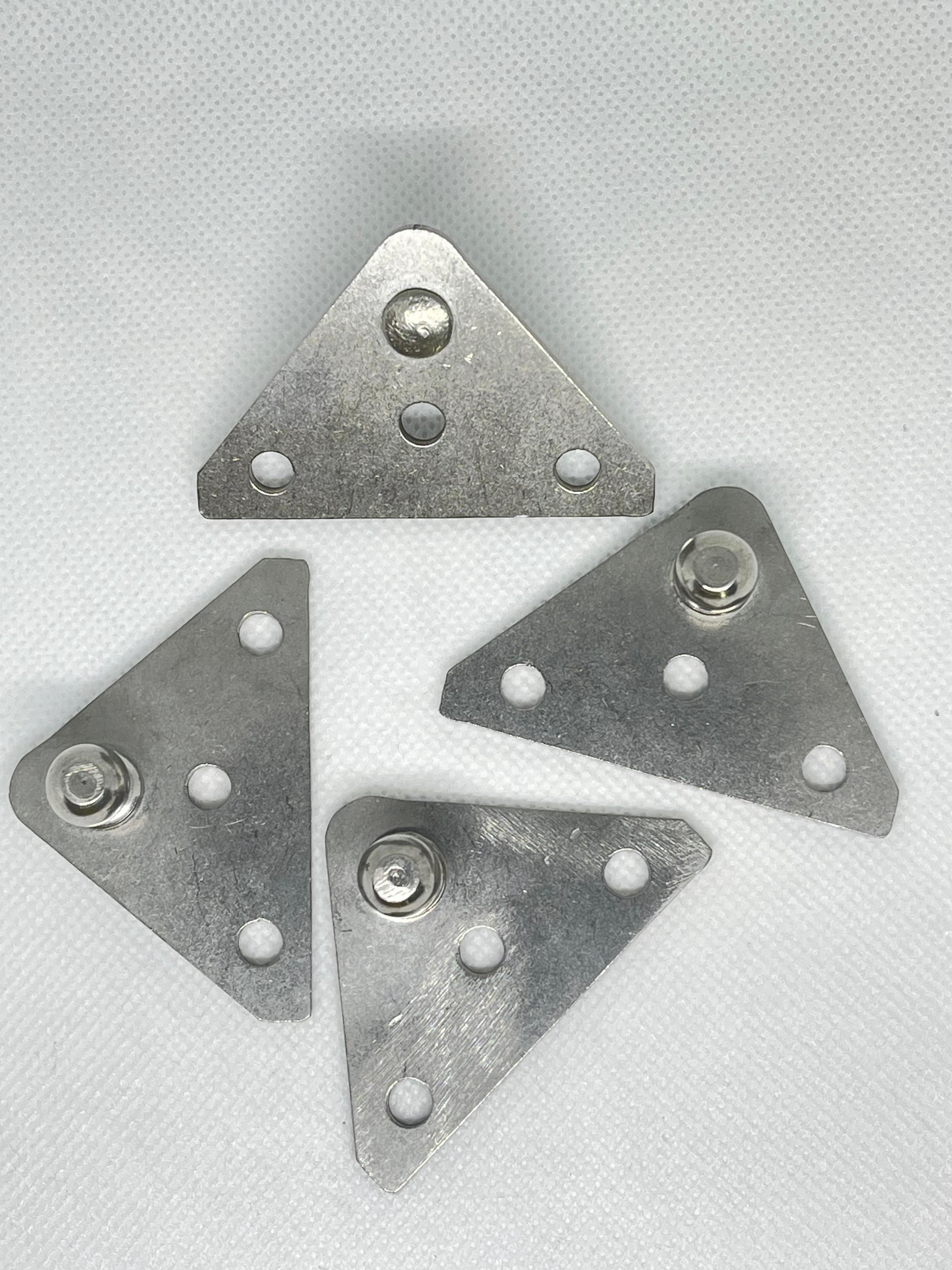

2x Stainless Steel Gas Strut Mounting Plates 10mm Ball Stud Brackets AISI 304

• Quantity: 2 brackets
• Material: AISI 304 stainless steel
• Ball size: 10mm fixed ball stud
• Bracket style: Triangular mounting plate
• Corrosion-resistant and weather-resistant
• Strong and stable mounting point for gas struts and gas springs
• Suitable for outdoor, toolbox, hatch, cabinet, canopy, lid and panel applications

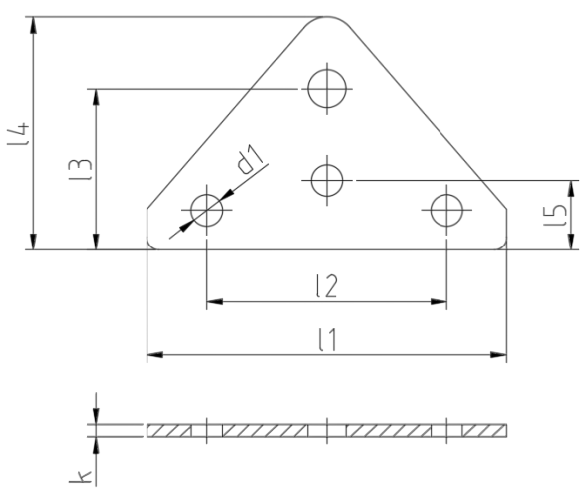

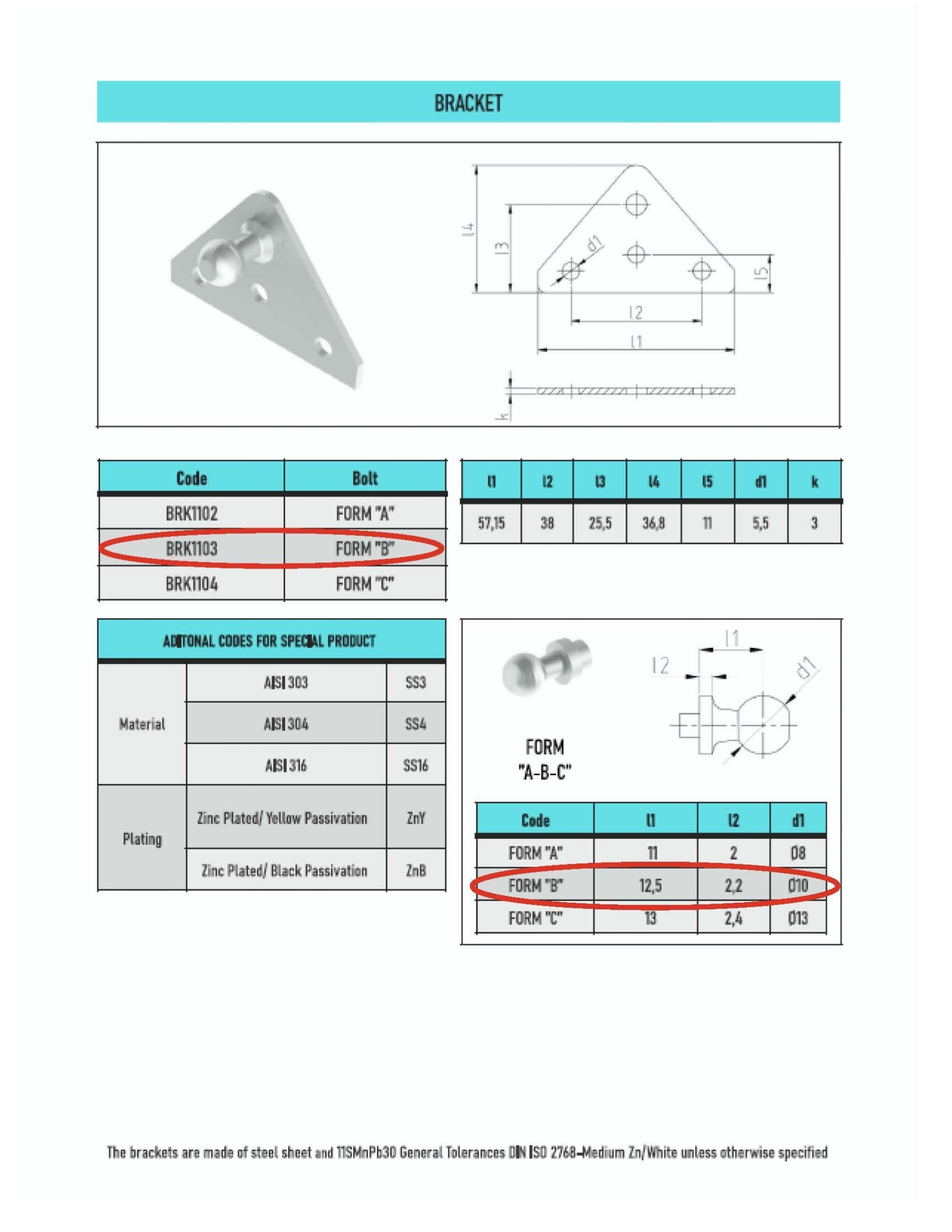

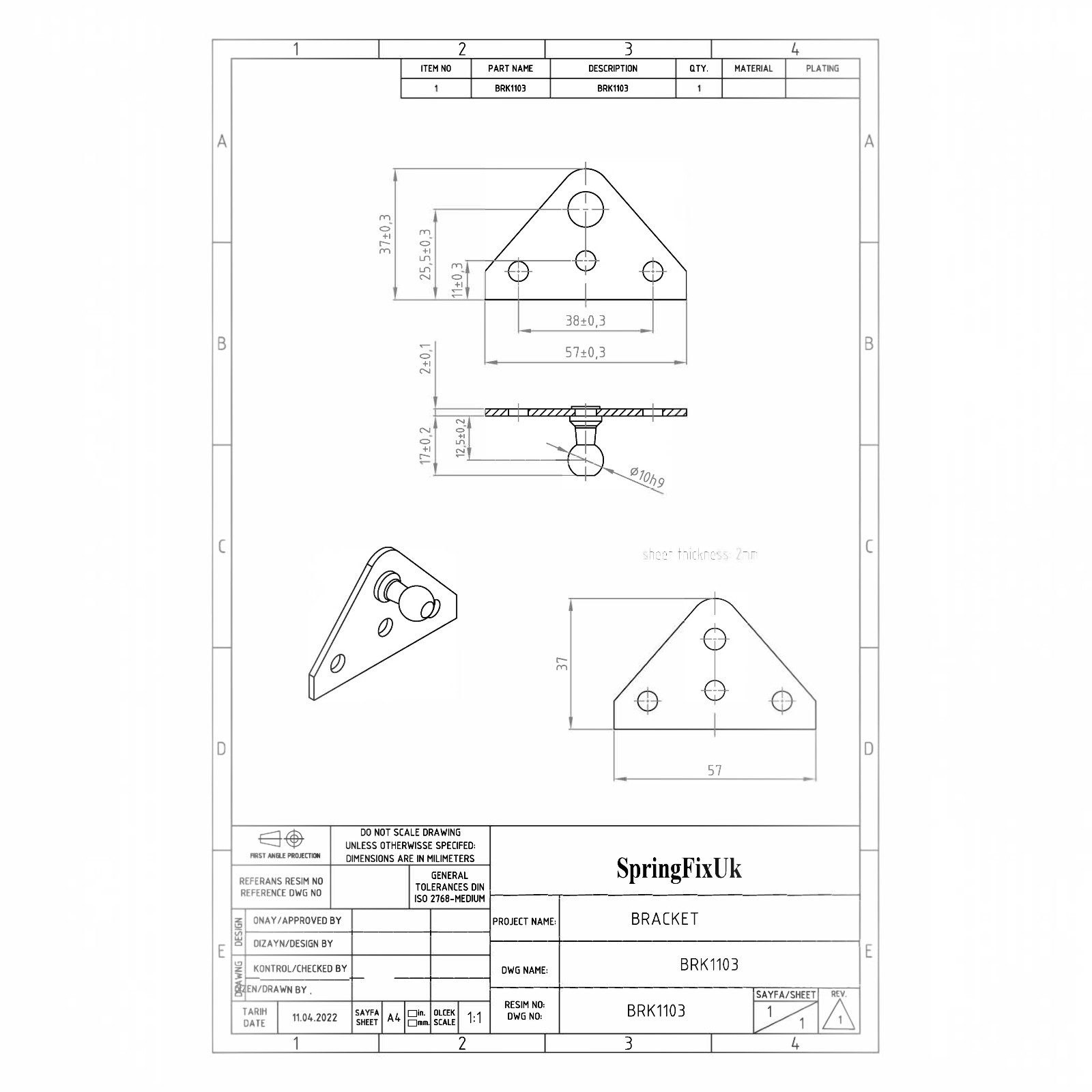

• Overall plate width (l1): 57.15mm
• Hole spacing (l2): 38mm
• Inner plate height (l3): 25.5mm
• Overall plate height (l4): 36.8mm
• Mounting hole offset (l5): 11mm
• Mounting hole diameter (d1): 5.5mm
• Plate thickness (k): 3mm
• Ball stud size (Form B): 10mm

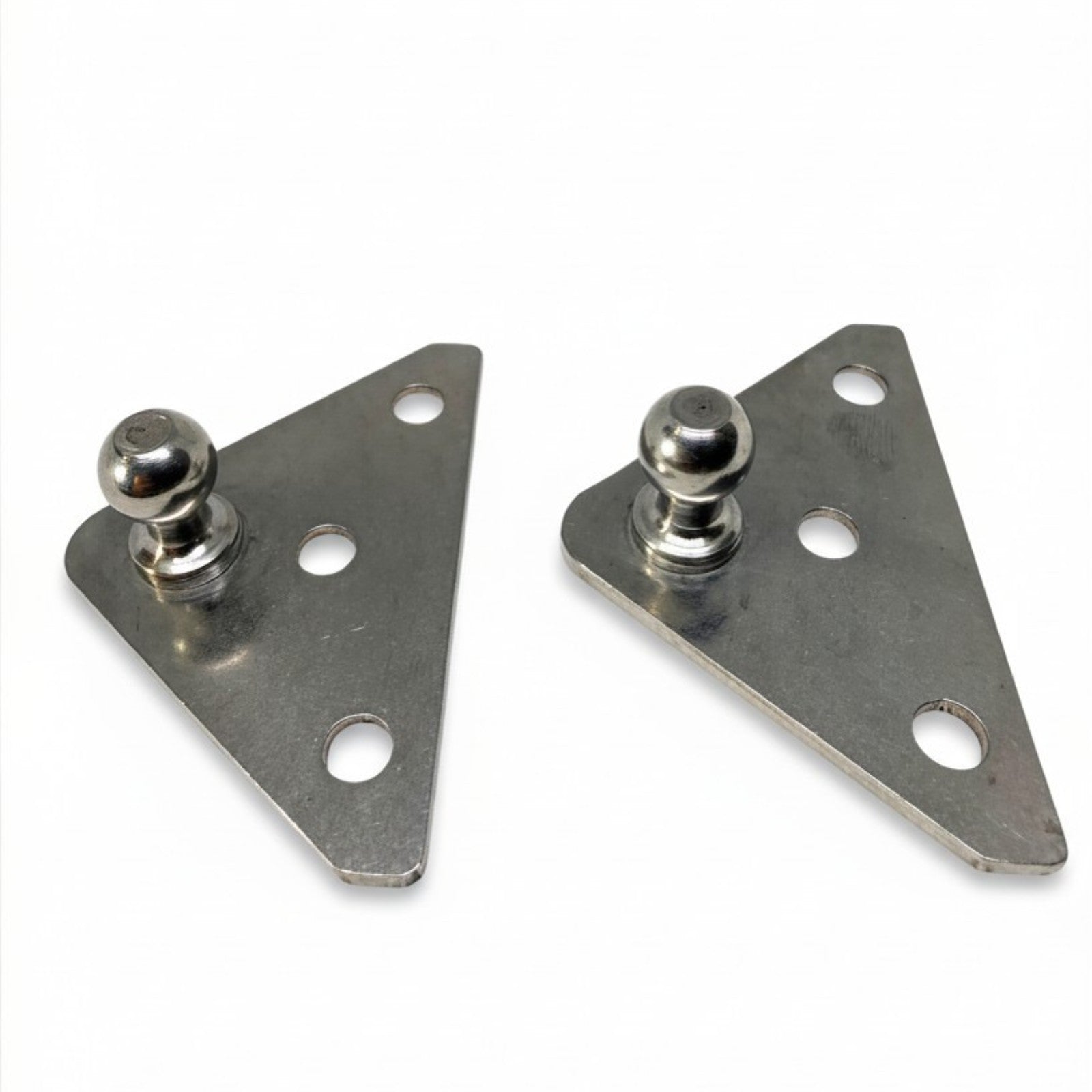

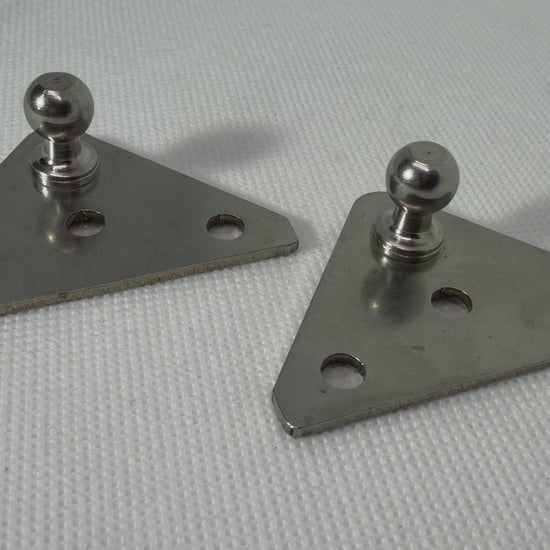

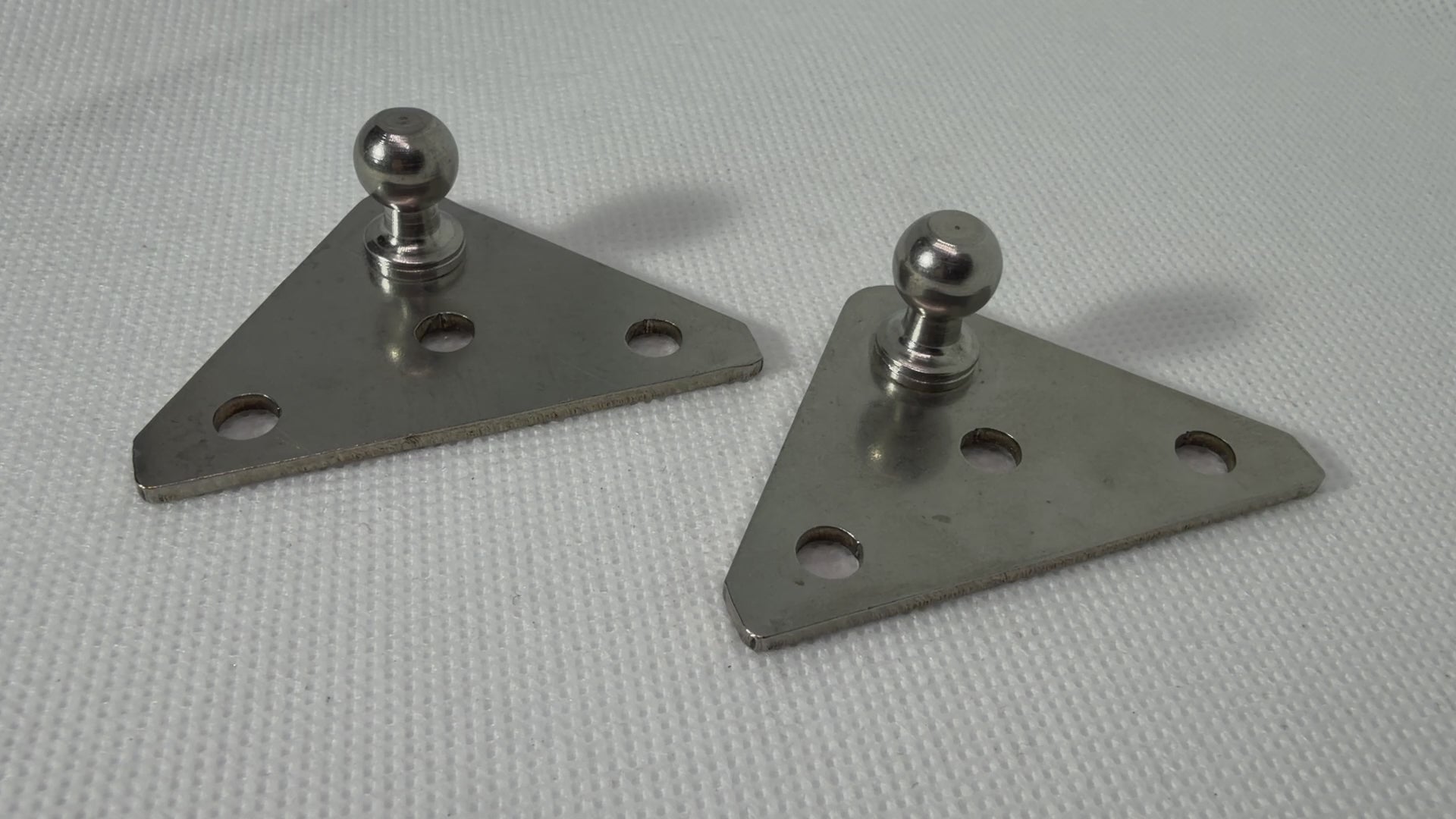

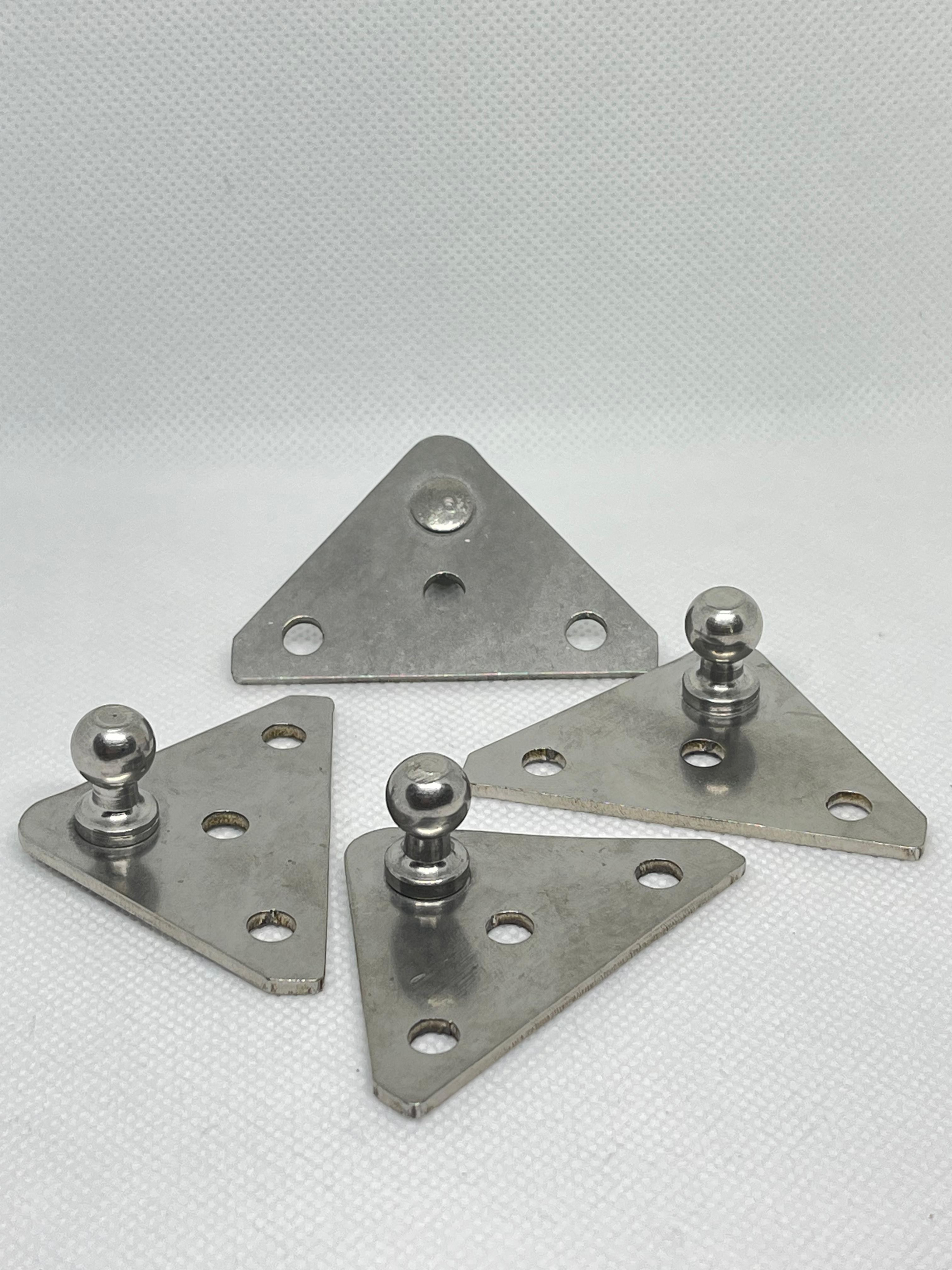

• 2 x stainless steel gas strut mounting plates with fixed 10mm ball studs
• Mounting screws or bolts are not included unless shown

• Designed for gas struts with 10mm ball socket ends
• Please compare the bracket shape, plate style and hole layout with the listing photos before ordering
• Not suitable for eyelet / hole-end gas struts
• Ideal where corrosion resistance is important

Suitable for marine hatches, lockers, deck lids, toolboxes, cabinets, storage lids, automotive panels, canopies, tailgates, industrial covers and general gas strut installations.

Orders placed before 16:00 are usually dispatched the same day.

If you are unsure, send us a clear photo of your current fitting and gas strut end and we’ll help confirm the correct part before you buy.
