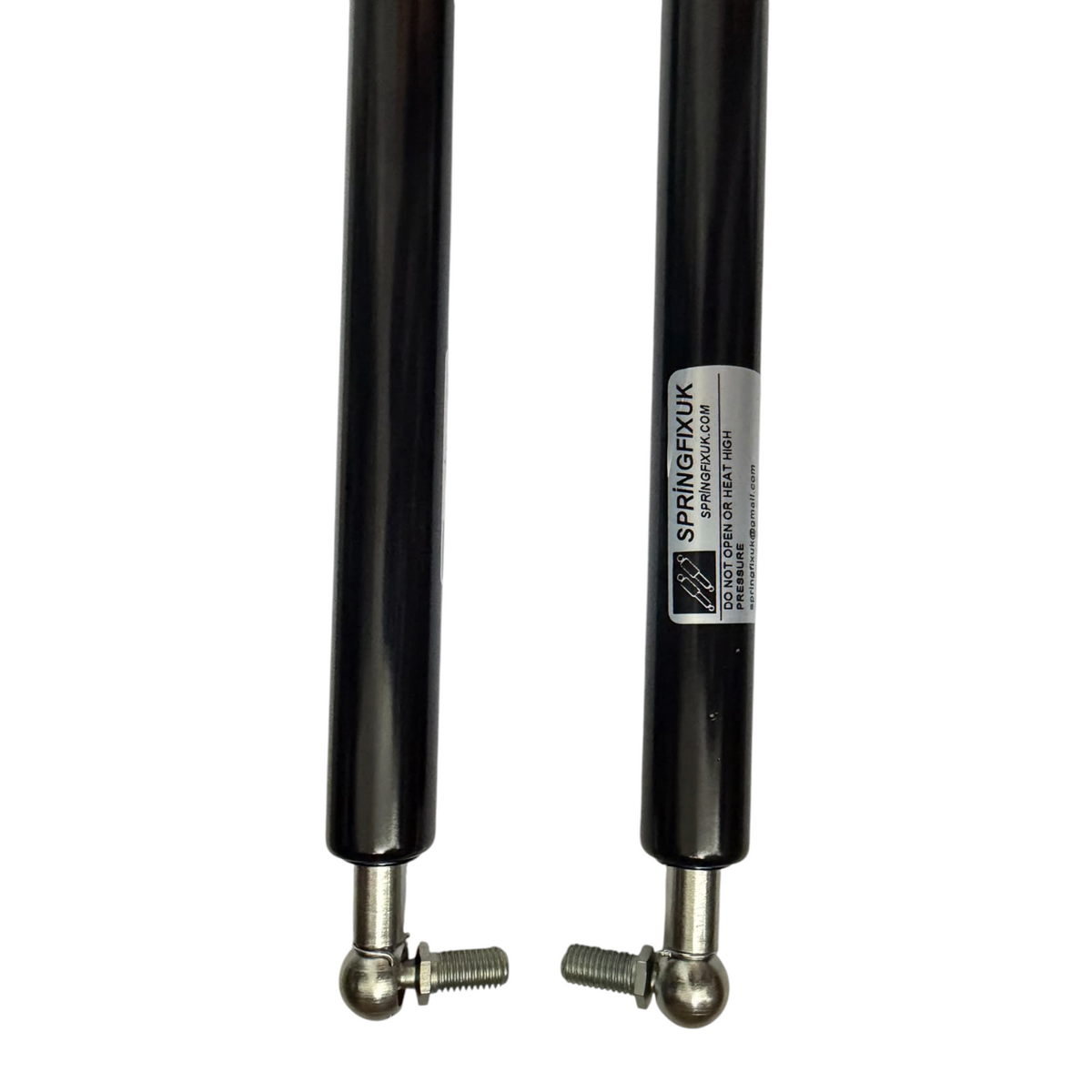

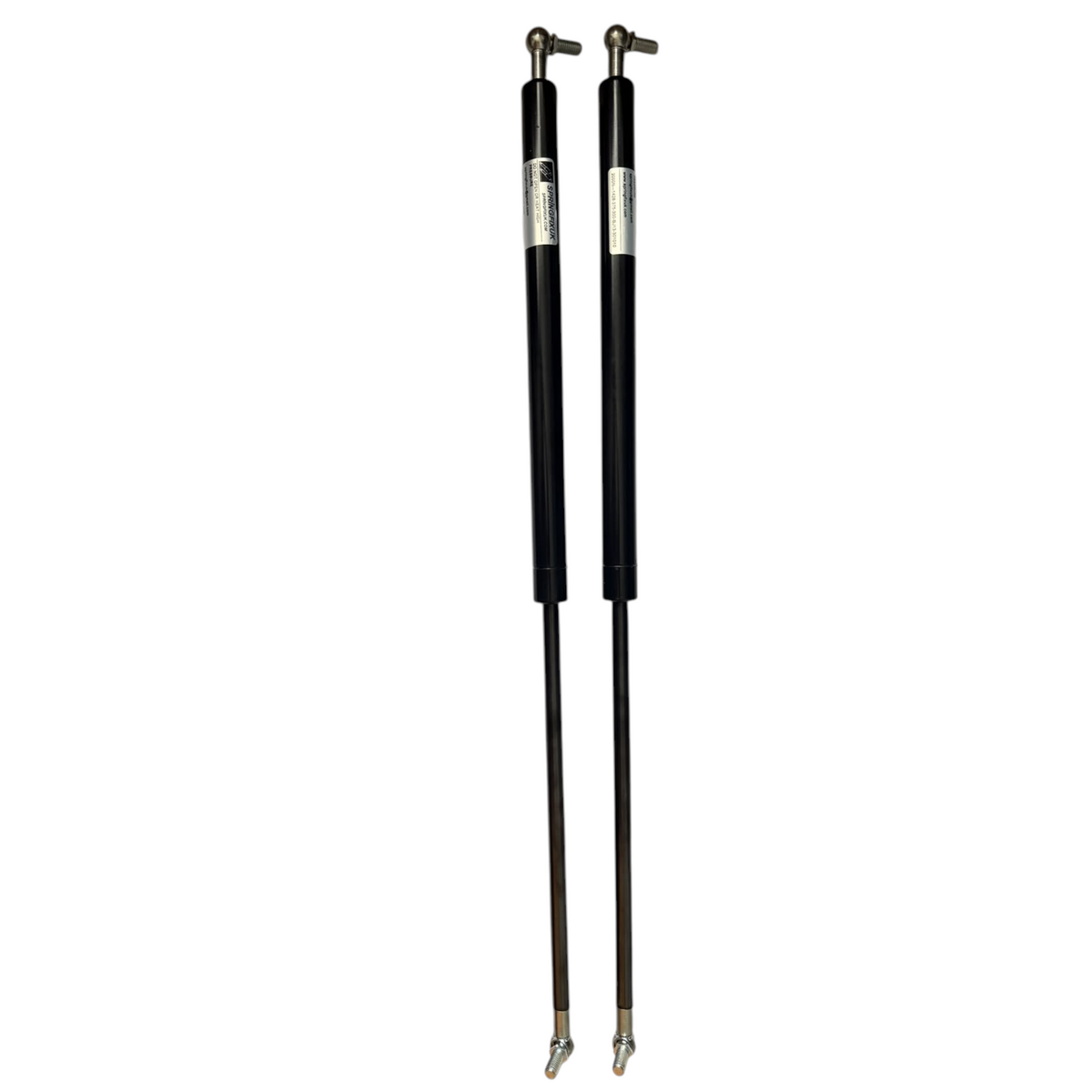

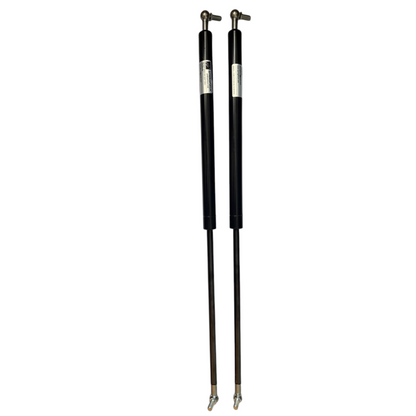

2000N Gas Struts – 735mm Extended, 300mm Stroke, Ball Joint End (2 Pack)

Heavy-duty 2000N gas struts with ball-joint end fittings, built for trailers, caravans, horseboxes, canopies, heavy toolbox lids and industrial or engineering applications that need extra lifting force and a secure, low-play connection. Extended length 735mm with a full 300mm stroke.

Key Specifications

• Force: 2000N
• Extended length: 735mm
• Stroke length: 300mm
• Tube diameter: Ø28mm
• Rod diameter: Ø14mm

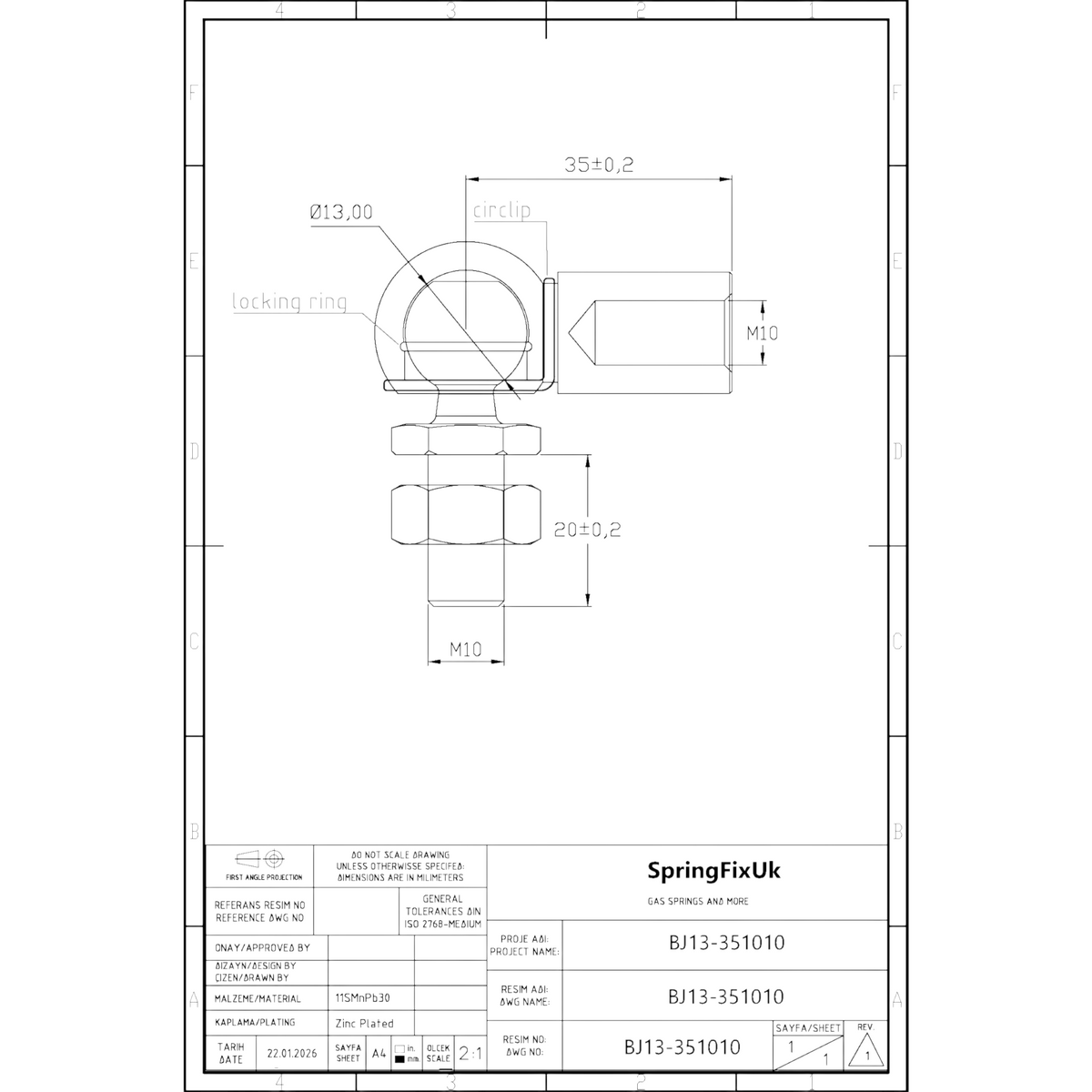

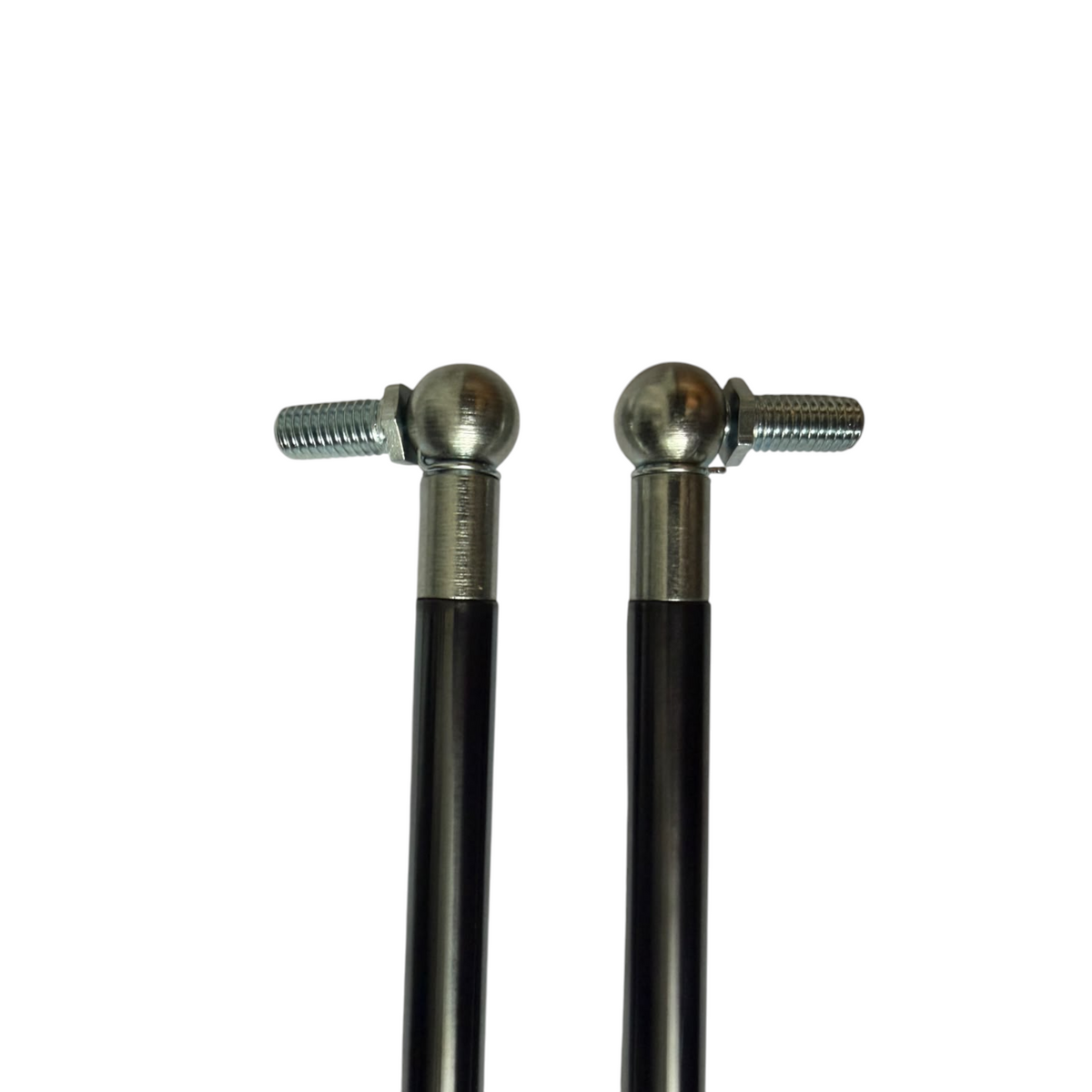

• End fitting: 13mm ball joint (BJ13-351010) on both ends, 35mm offset, M10 threaded stud, secured with circlip and locking ring
• Body finish: Black painted tube, black nitrated rod
• End fitting material: 11SMnPb30 steel, zinc plated for corrosion resistance
• Operating temperature: -30°C to +80°C
• Sold as a matched pack of 2

Where It's Used

Suited to heavier trailer ramps and doors, horsebox ramps, large canopy lids, caravan storage lockers, industrial access panels and machine guards – anywhere a higher-force strut with a ball-joint (rather than eyelet) connection is required. As a universal ball-joint gas strut, it fits any application where the extended length, stroke and ball socket size match your existing strut or mounting.

Before You Order

Please check your existing strut's extended length, stroke and ball socket diameter (or the corresponding measurements on your mounting brackets) against the specifications above and the drawing images provided, to ensure correct fit before ordering. This helps us get your order right first time and keeps returns to a minimum.

Dispatch & Delivery

Orders placed Monday to Sunday before 16:00 are dispatched the same day, shipped via Royal Mail or Evri depending on the item.

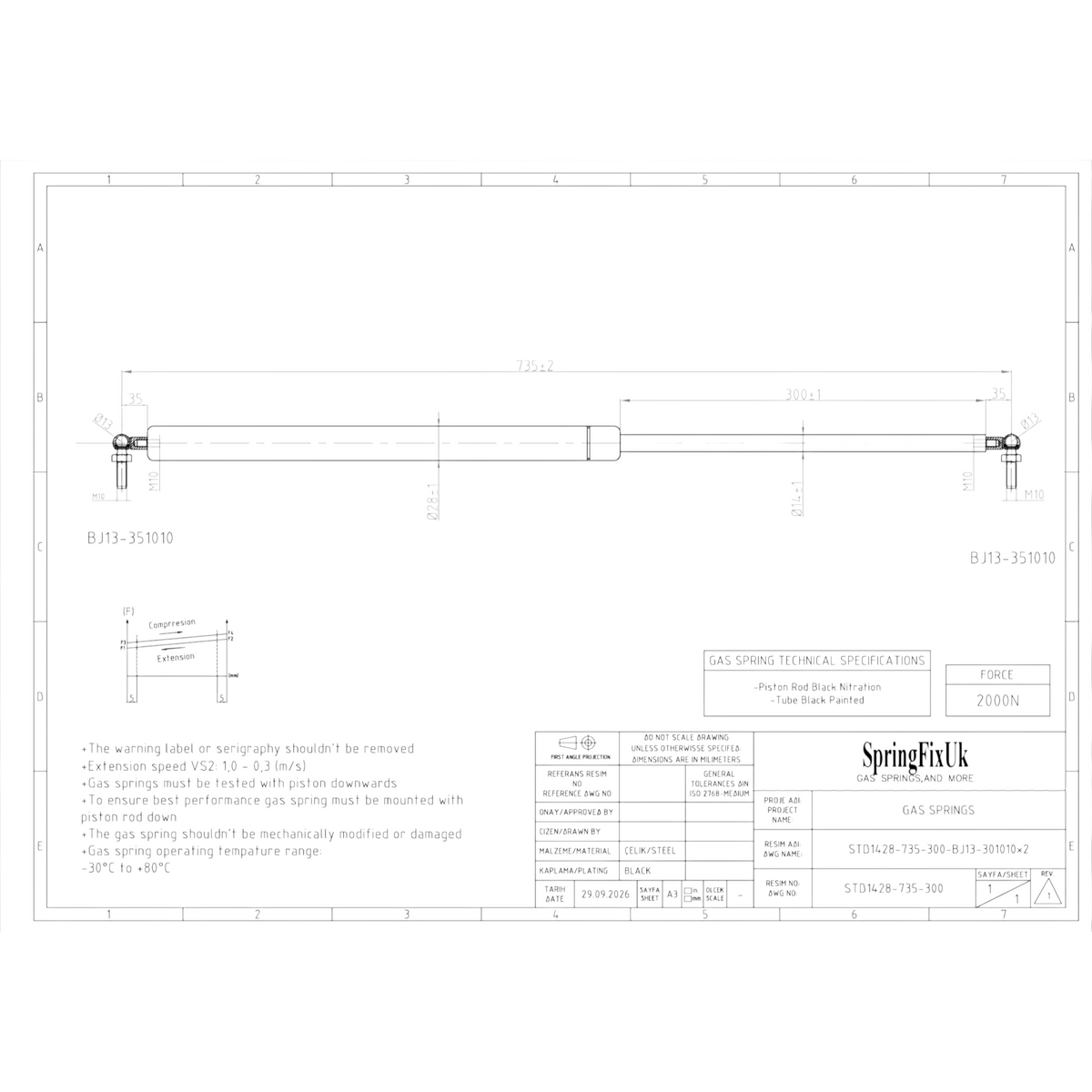

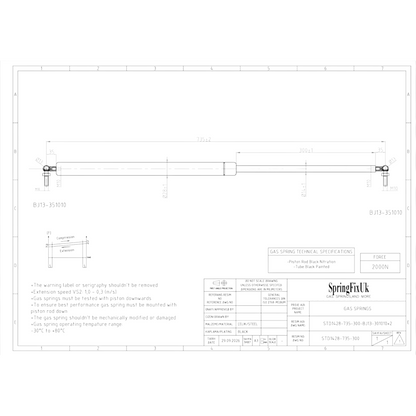

Product images currently show detailed technical drawings with full dimensions; real product photography will be added shortly.
