1000N Gas Struts – 735mm Extended, 300mm Stroke, 10mm Eye End (2 Pack)

Heavy-duty 1000N gas struts engineered for trailers, caravans, horseboxes, canopies, toolboxes and general engineering applications where a long-stroke, high-force gas spring is needed. Extended length 735mm with a full 300mm stroke – ideal wherever a compact 535mm/210mm strut is too short for the job.

Key Specifications

• Force: 1000N
• Extended length: 735mm
• Stroke length: 300mm
• Tube diameter: Ø28mm
• Rod diameter: Ø14mm

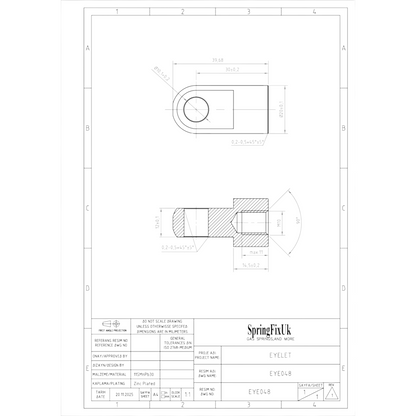

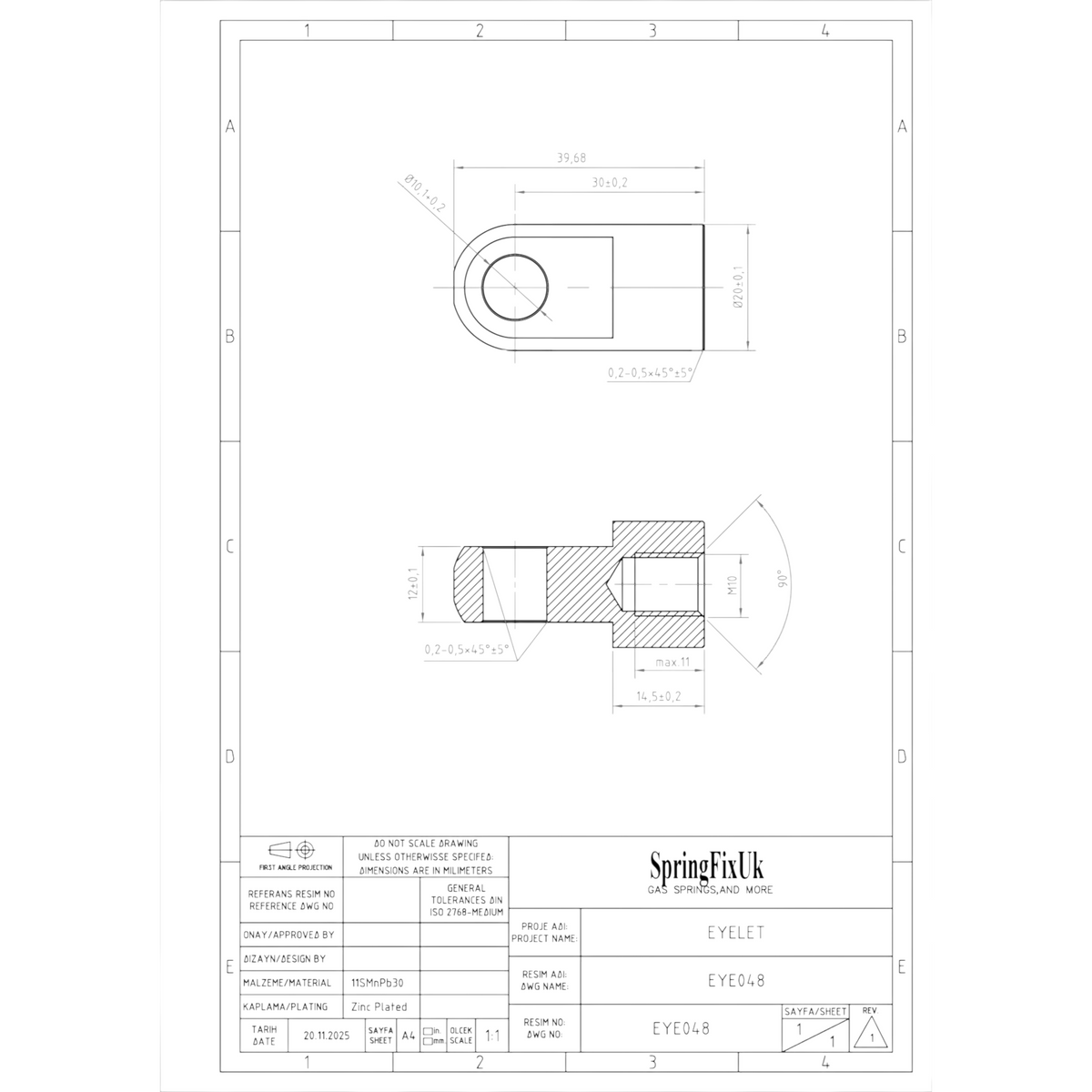

• End fitting: 10mm eyelet (EYE048) on both ends, M10 threaded stem
• Body finish: Black painted tube, black nitrated rod
• End fitting material: 11SMnPb30 steel, zinc plated for corrosion resistance
• Operating temperature: -30°C to +80°C
• Sold as a matched pack of 2

Where It's Used

Commonly fitted to trailer ramps and ramp doors, ATV/ute canopies, horsebox partitions and ramps, caravan lockers, toolbox lids, and general engineering or machinery access panels. As a universal 10mm-eye gas strut rather than a vehicle-specific part, it suits any application where the extended length, stroke and eye hole size match your existing strut or opening.

Before You Order

Please measure your existing strut (eye-to-eye extended length and eye hole diameter) or the opening you're fitting, and compare against the specifications above and the dimensions shown in the drawing images, to make sure this is the correct size for your application. This helps us get your order right first time and keeps returns to a minimum.

Dispatch & Delivery

Orders placed Monday to Sunday before 16:00 are dispatched the same day, shipped via Royal Mail or Evri depending on the item.

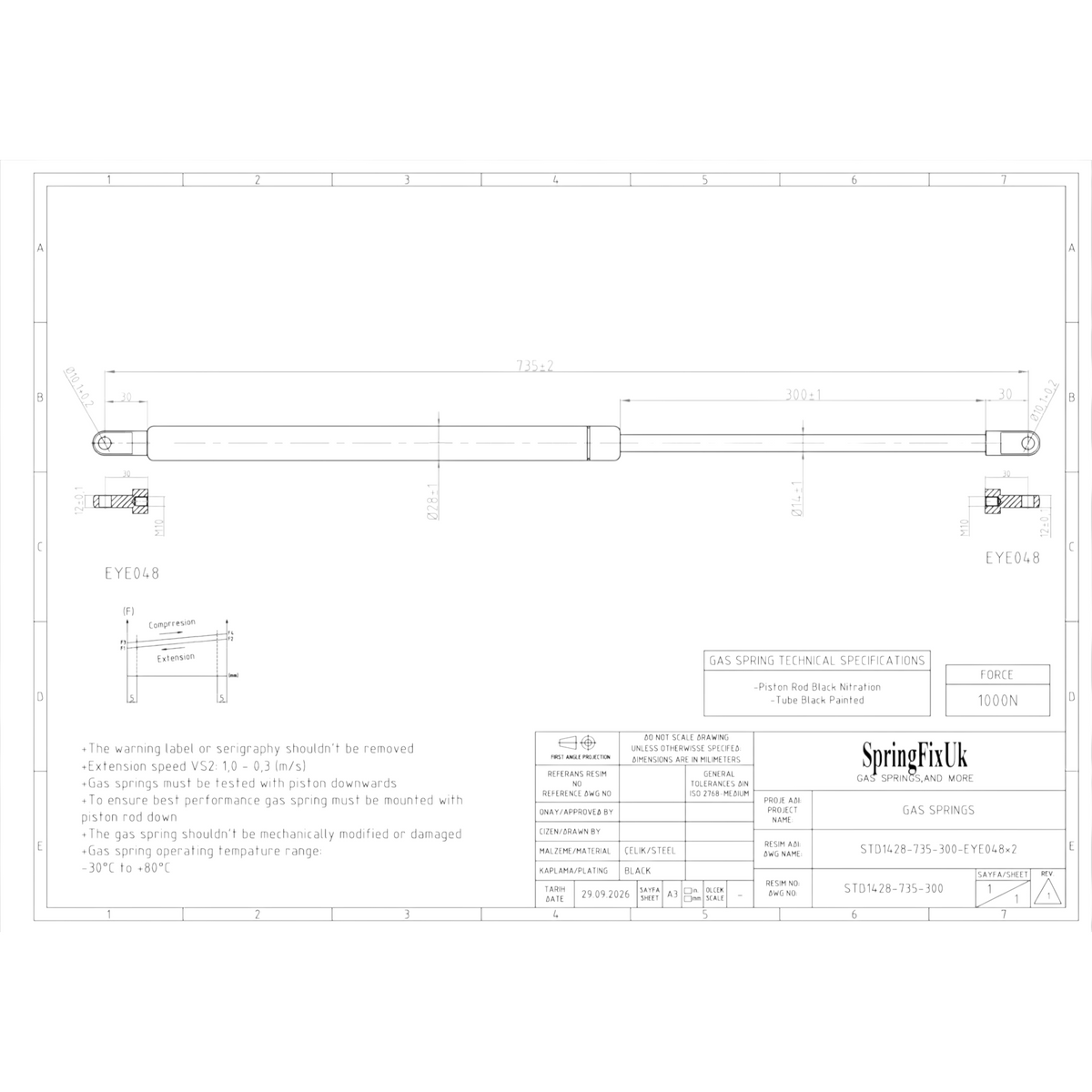

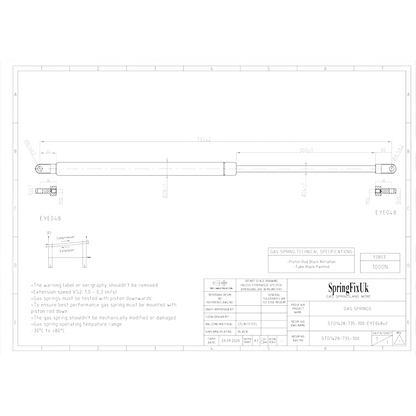

Product images currently show detailed technical drawings with full dimensions; real product photography will be added shortly.
