Hydraulic Gate Closer Arm Set M10 300N Heavy Duty Soft Close Automatic Gates

🔧 M10 Hydraulic Gate Closer Arm – 300N Force, Heavy-Duty Soft Close for Swing Gates

Upgrade your gates with this premium hydraulic gate closer arm set. Designed with M10 elbow joints and a 300N force output, it provides a controlled and automatic soft-close action – preventing slamming, reducing noise, and improving safety.

Made from weather-resistant materials and built for frequent outdoor use, this gate closer is ideal for residential, garden, and commercial swing gates.

✅ Key Features

• Soft-Close Function – prevents gate slamming & ensures safe passage

• 300N Force Output – reliable for medium-weight swing gates

• End Fittings: M10 Elbow Joints with protective plastic rod tube

• Heavy-Duty Black Finish – corrosion-resistant & outdoor ready

• Universal Design – compatible with metal, wood & composite gates

• Easy Installation – includes brackets, fixings & user guide

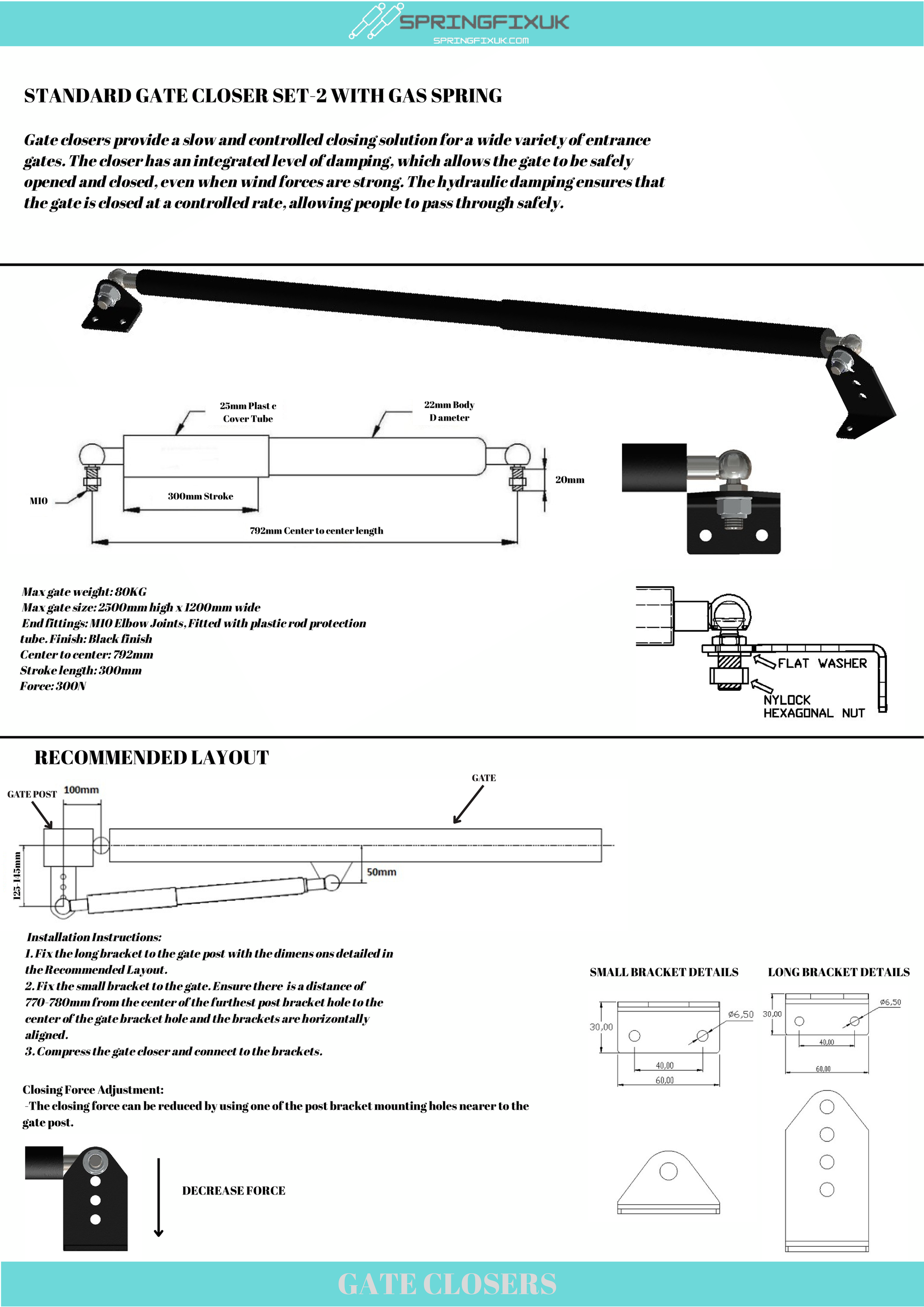

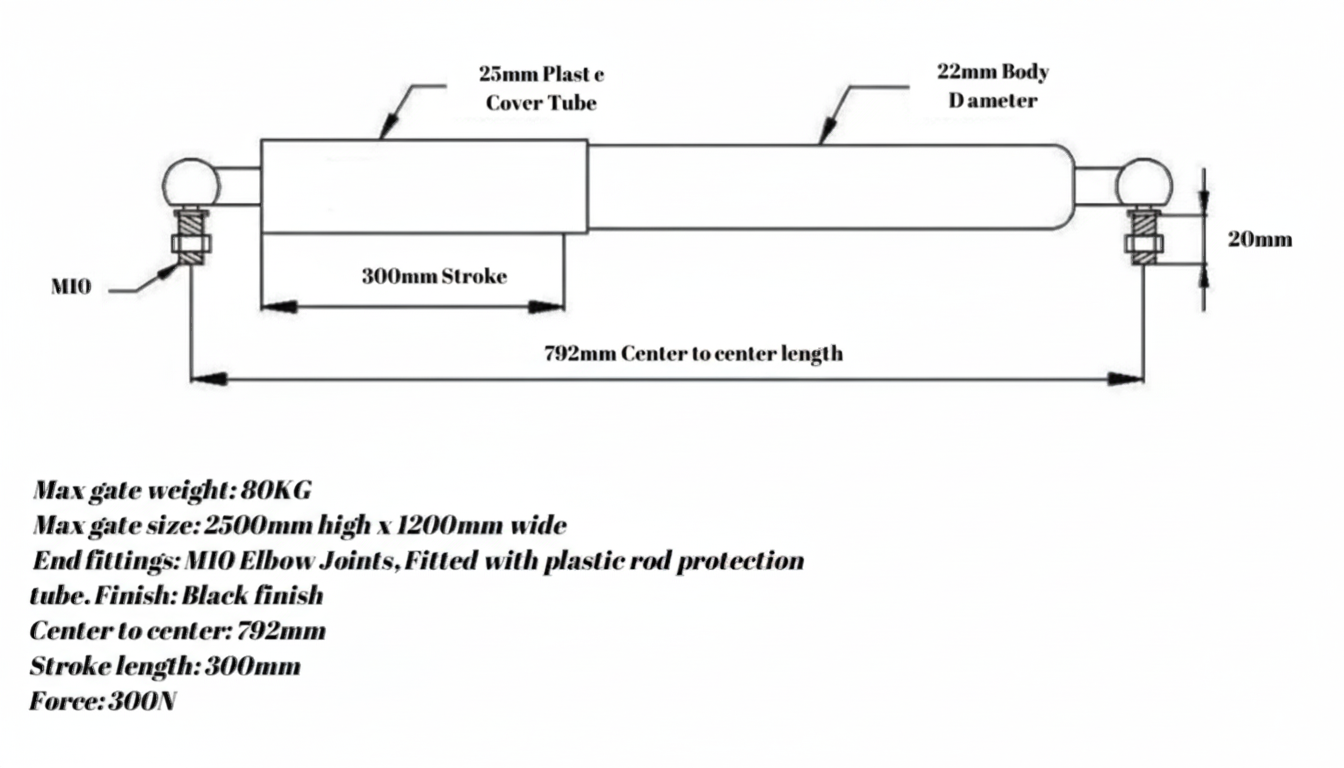

📐 Technical Specifications

• Force: 300N

• Thread Size: M10

• Stroke Length: 300 mm

• Center-to-Center Length: 792 mm

• Body Diameter: 22 mm

• Rod Diameter: 20 mm

• Plastic Cover Tube Diameter: 23 mm

• Max Gate Weight: 80 kg

• Max Gate Size: 2500 mm (H) × 1200 mm (W)

• Finish: Black, weather-resistant coating

📦 Package Includes

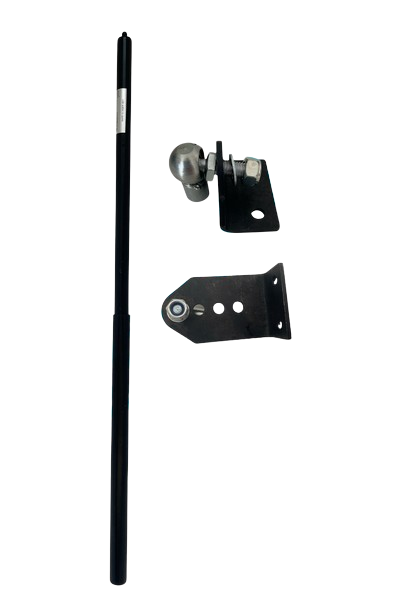

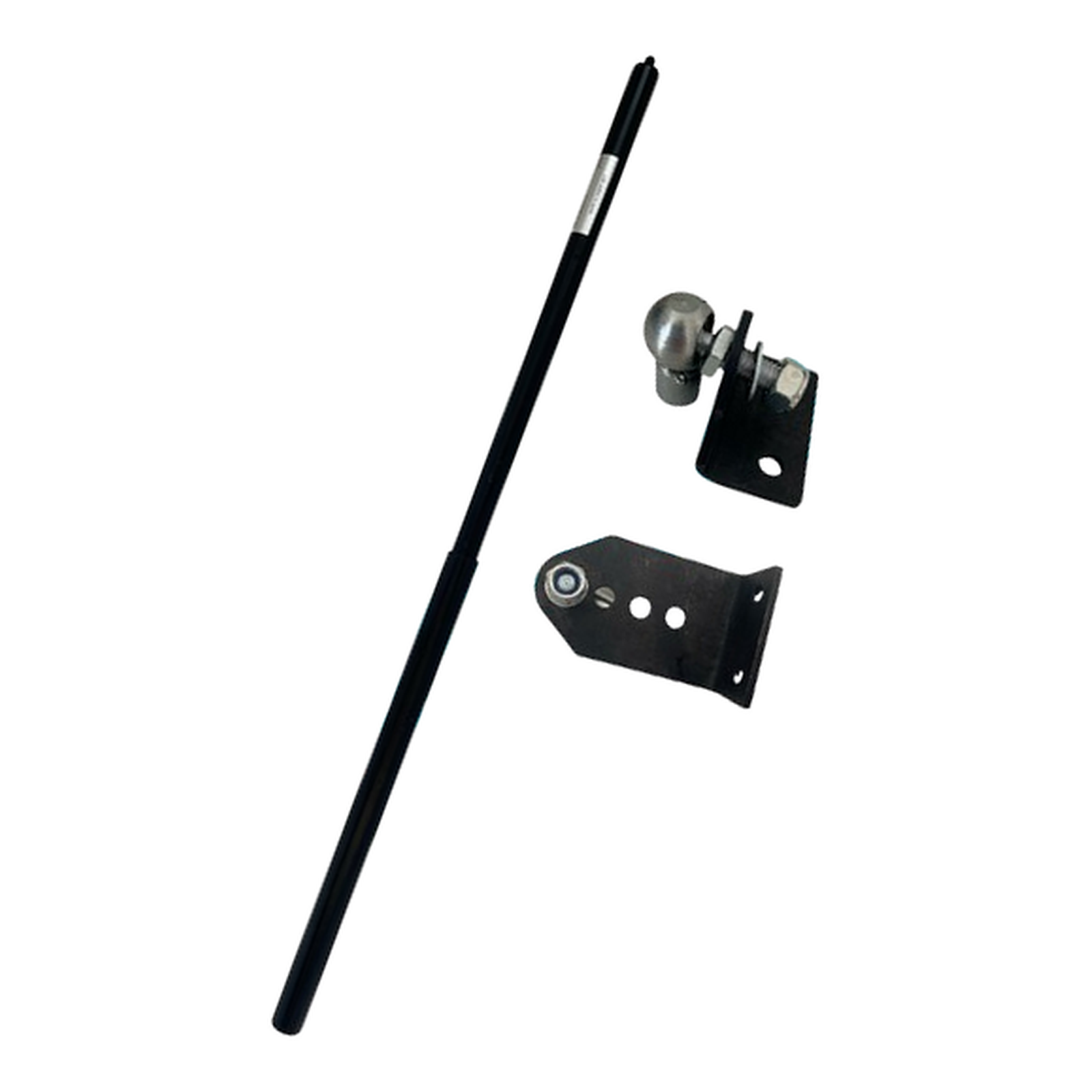

• 1 × Hydraulic Gate Closer Arm (M10 fittings)

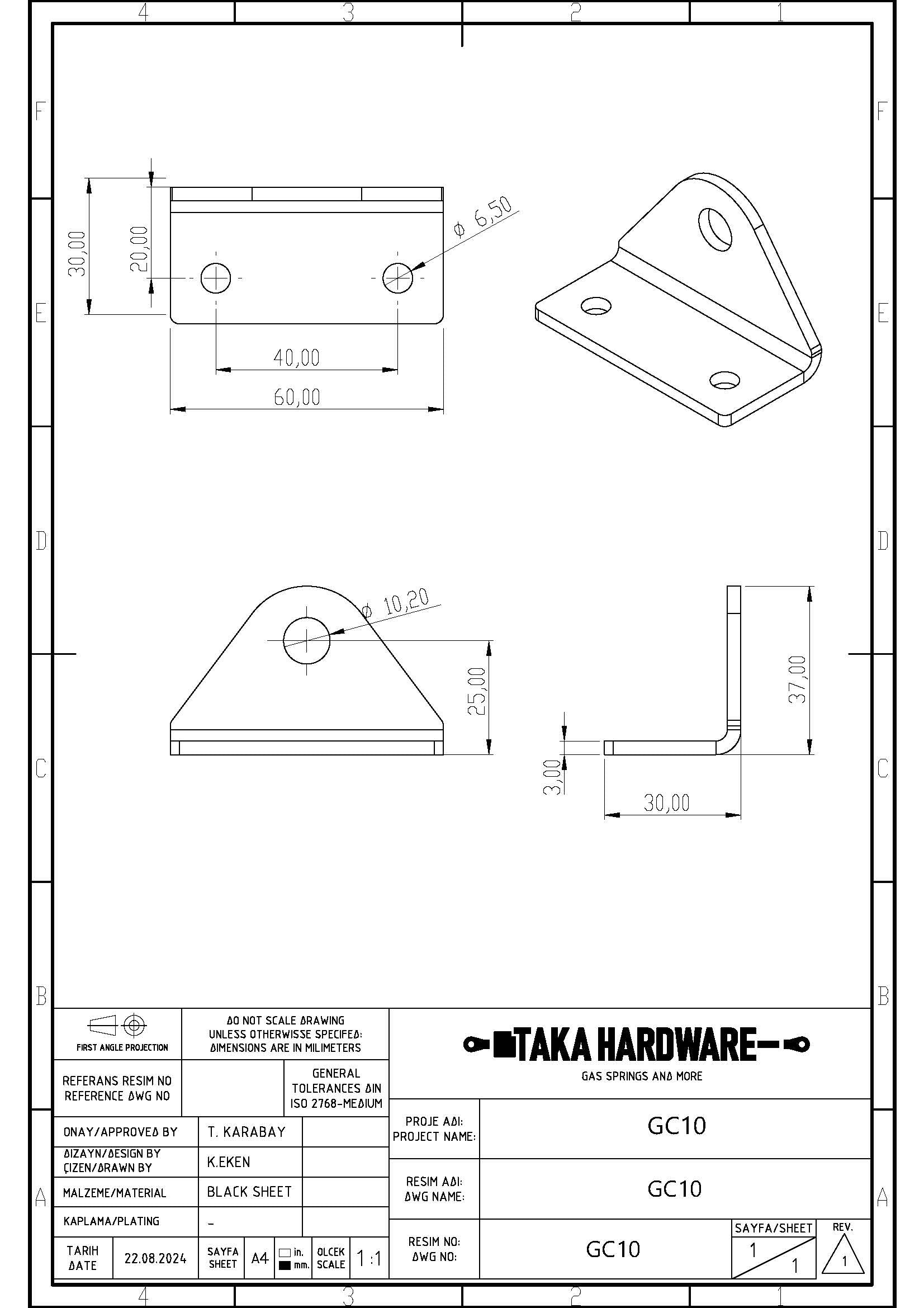

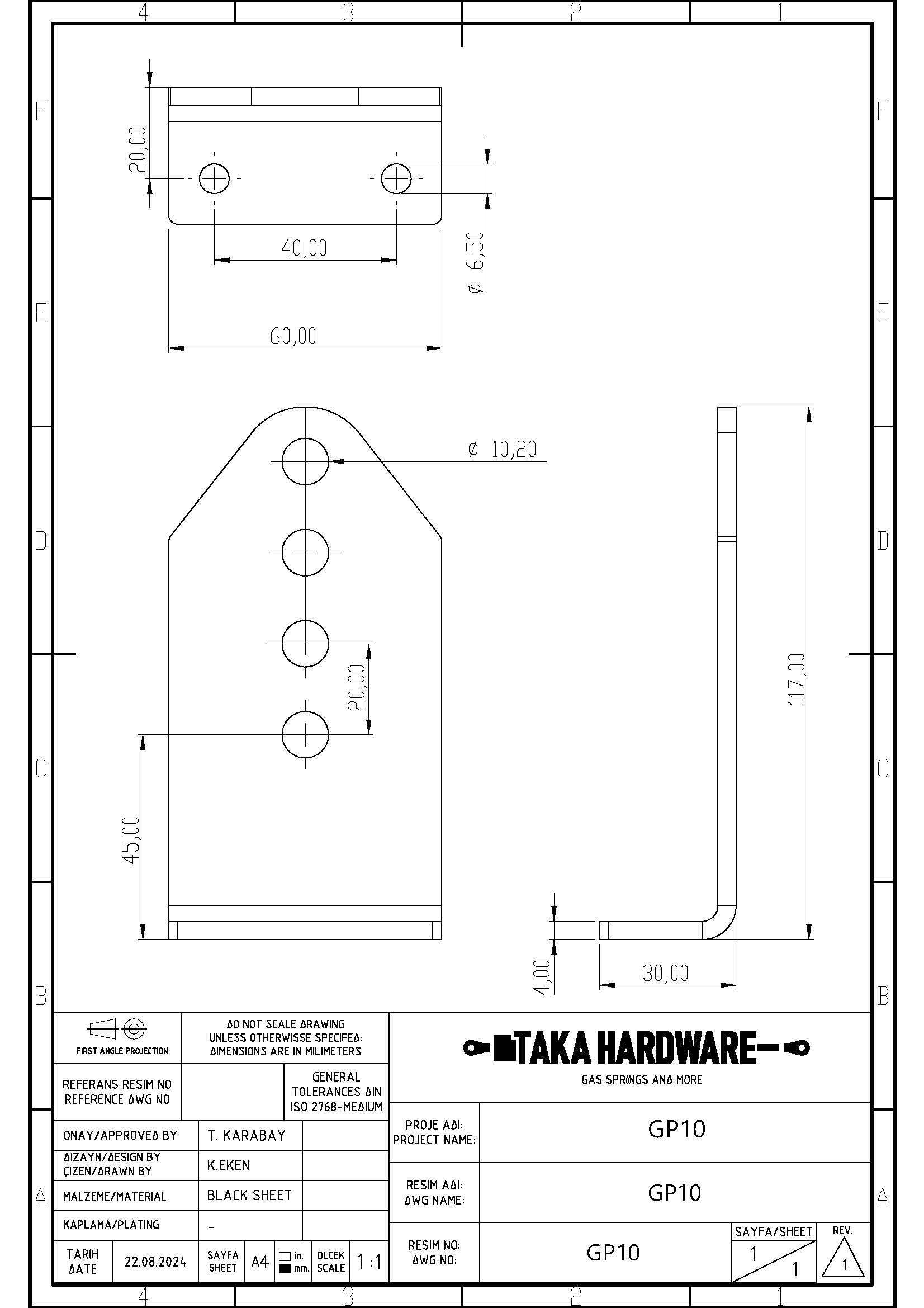

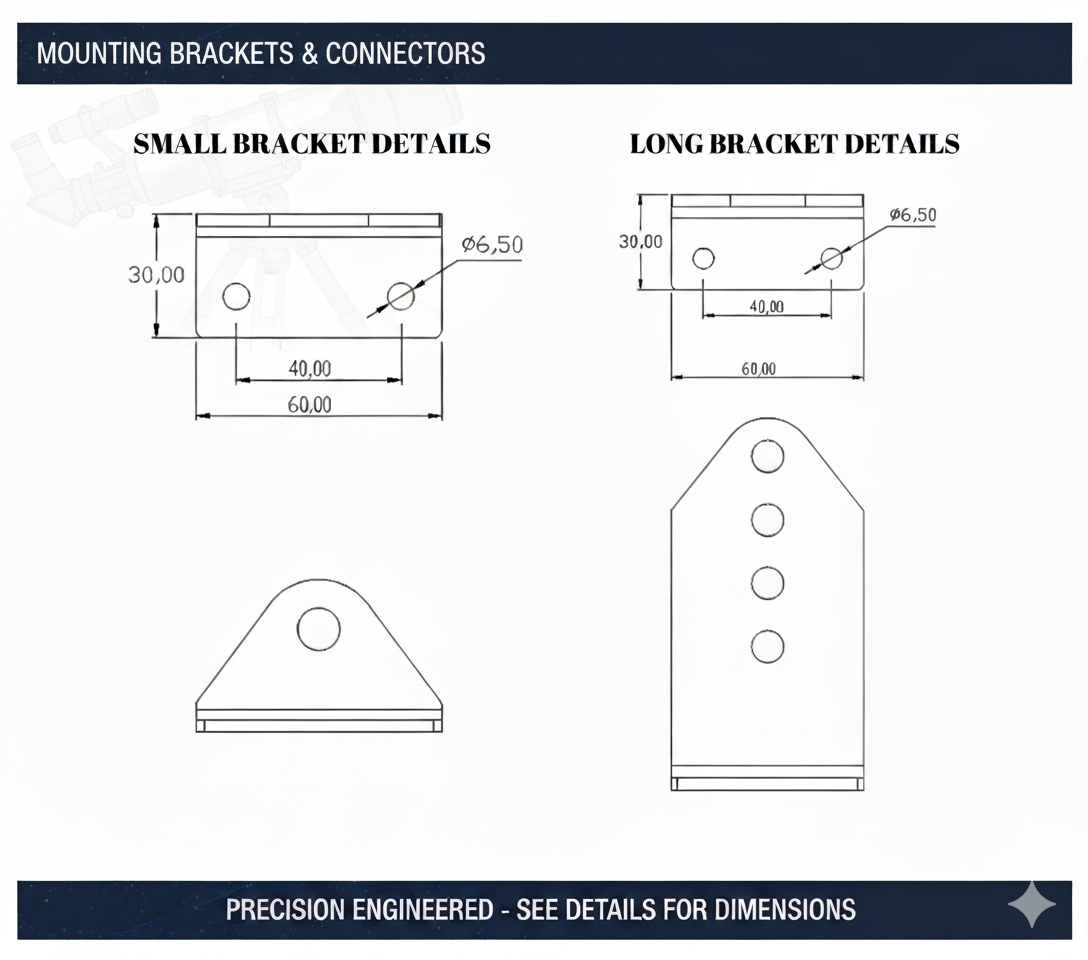

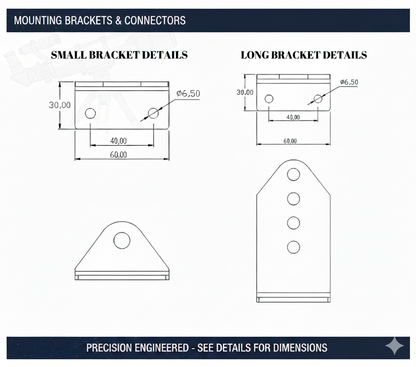

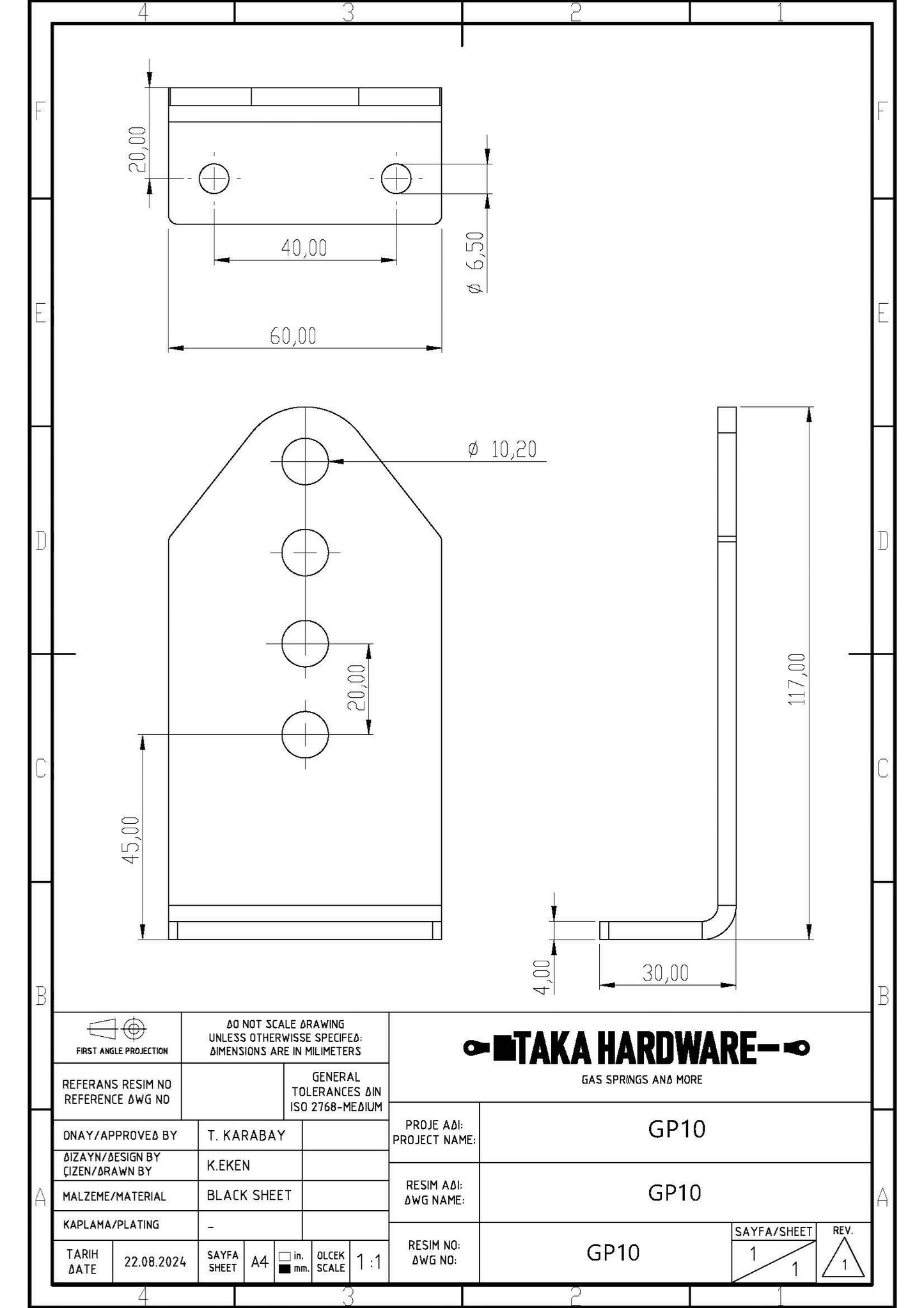

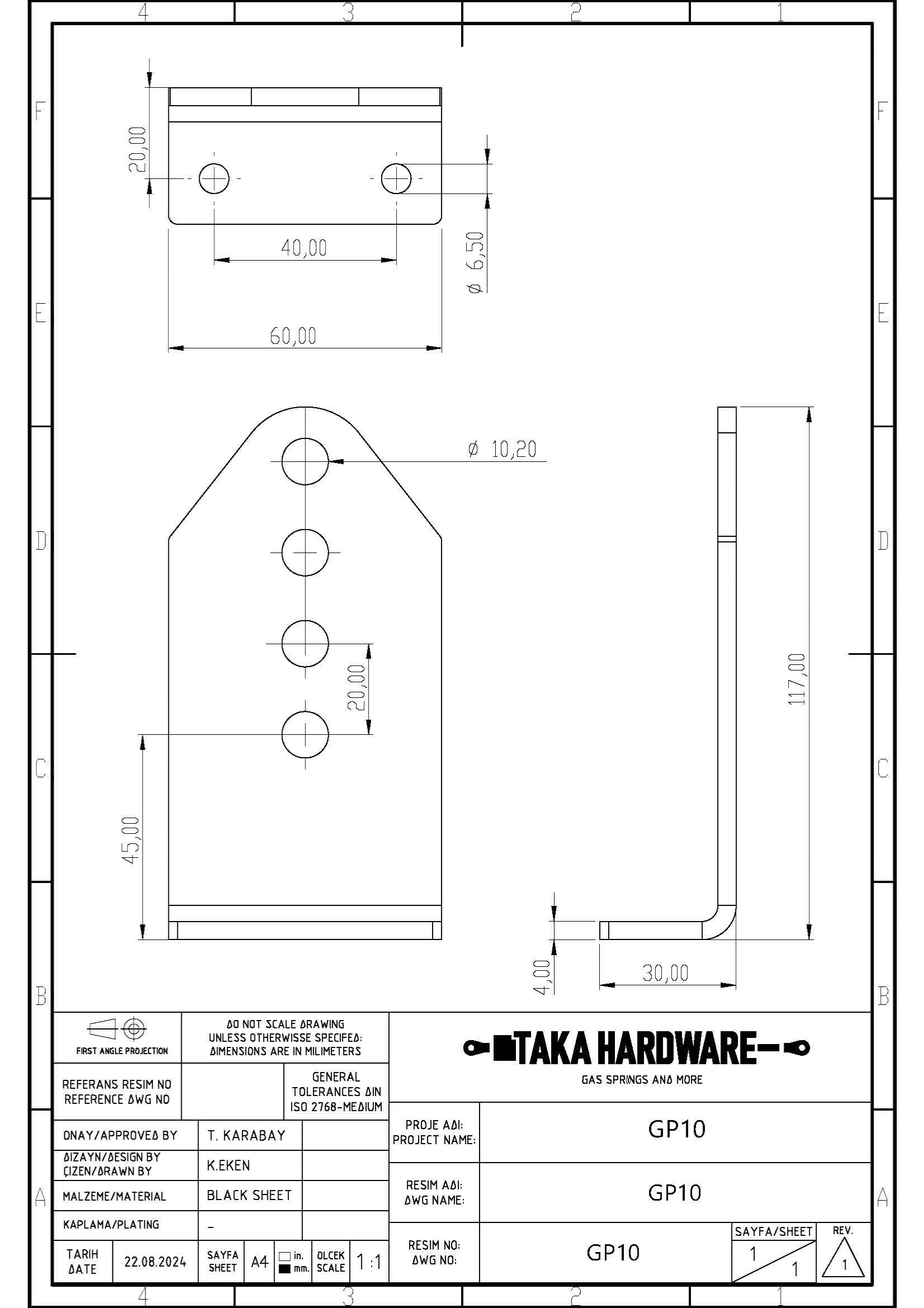

• Mounting Brackets

• Fixing Screws

• User Installation Guide

🧰 Ideal For

• Residential medium-weight gates

• Garden & side entry gates

• Commercial swing entrances

• Gate systems requiring controlled automatic soft-close

🚨 Important Note
This M10 gate closer is designed for gates generating a return force of 30–40 kg.
If the gate is too light or hinges are stiff, the soft-close function may not fully activate.
👉 Unsure about compatibility? Contact us – we’re happy to help.
