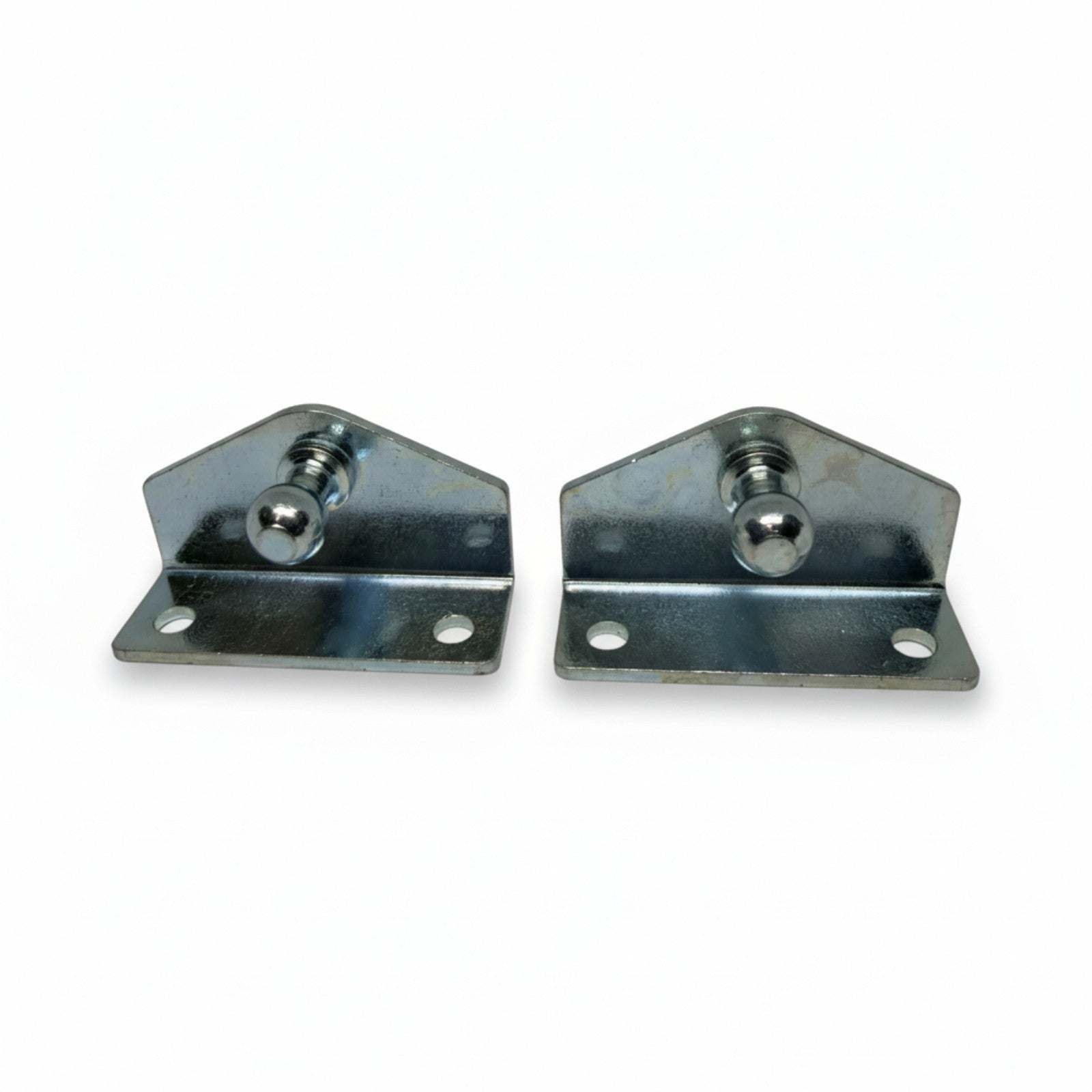

90° Side Mount Gas Strut Bracket — 2 Pack, 10mm Ball Stud L-Shape Zinc

Versatile 90-degree L-shape mounting bracket for gas struts requiring perpendicular attachment. The right-angle design lets you mount a strut where surfaces meet at 90° — ideal for corner installations, cabinet interiors and vehicle bulkheads.

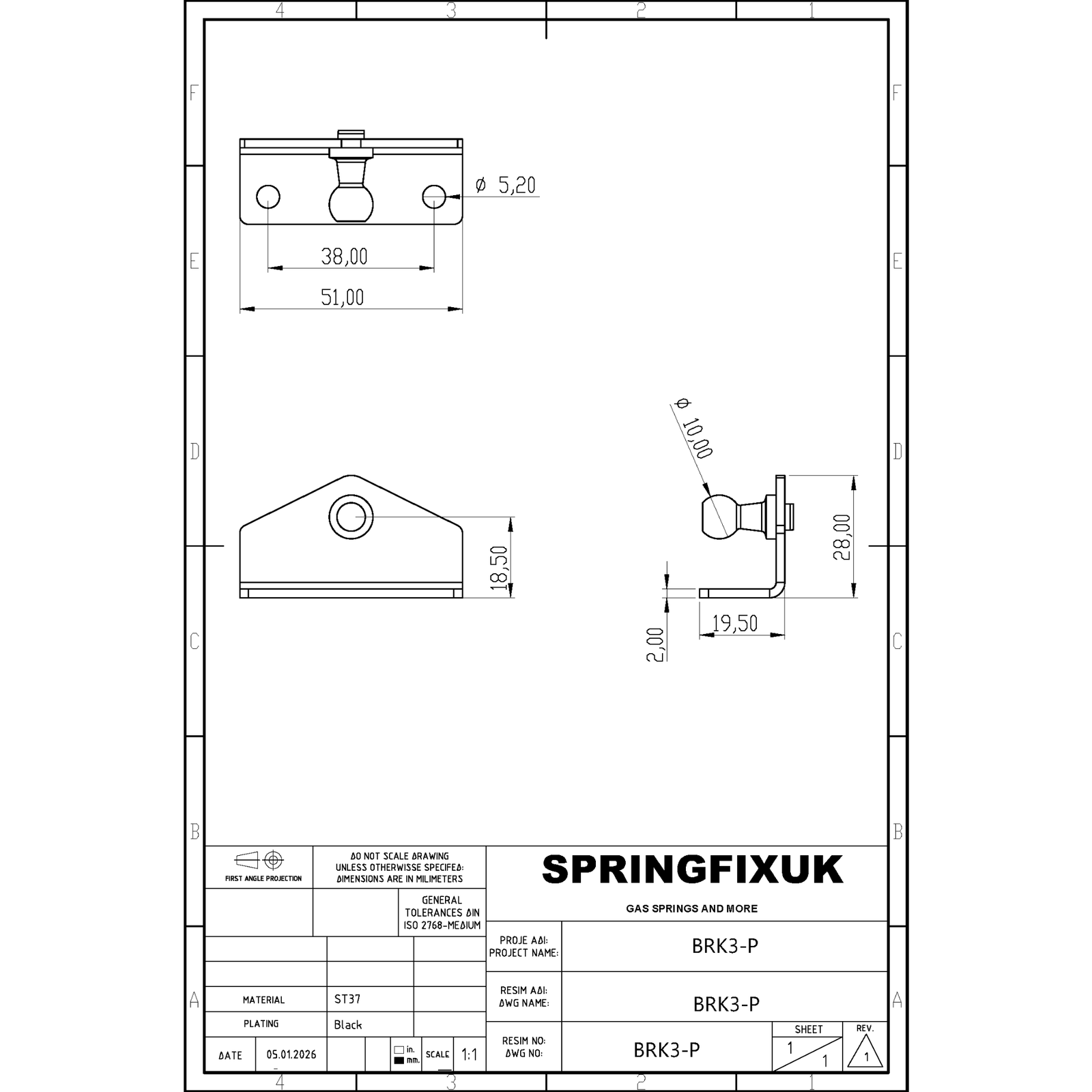

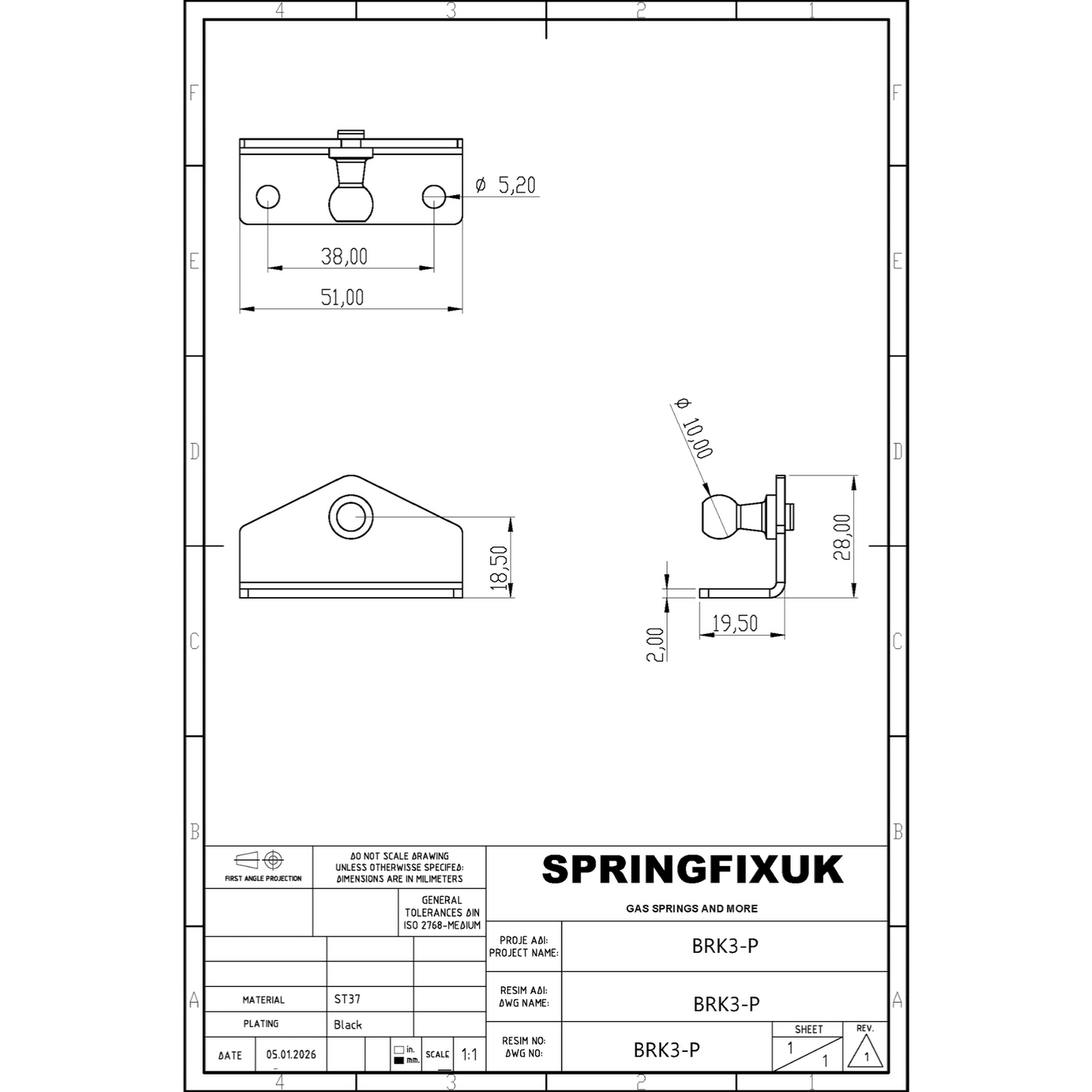

Key Specifications

• Design: 90° L-shape side mount with 10mm ball stud
• Ball size: 10mm (fits DIN 71802 socket)
• Construction: Zinc plated steel
• Angle: Precision 90° bend
• Mounting: Pre-drilled holes on both faces

Perfect For

• Cabinet corner installations
• Vehicle bulkhead mounting points
• Ottoman bed frame corner attachments
• Marine bulkhead and locker corner mounts
• Custom fabrication requiring right-angle mounting
• Applications where a flat plate won't fit

Compatibility

Ball stud fits any 10mm DIN 71802 socket. See our matching sockets in Gas Strut End Fittings collection.

Installation Tips

• Bolt one face to the horizontal surface, the other to the vertical
• Use M5-M6 bolts appropriate for your substrate
• The 90° geometry maintains strut angle consistency
• Always install as a matched pair for balanced operation

Frequently Asked Questions

When would I choose this over a flat plate? When your mounting point is at a corner — where two surfaces meet at 90°. The L-shape provides secure fixing on both surfaces.

Is the 90° angle adjustable? No — this is a fixed-angle bracket. Bending would compromise strength.

Load capacity? 10mm ball rated for gas struts up to ~1000N.

Are fixings included? No — use M5-M6 bolts appropriate to your substrate.
