2x Gas Strut Pivot Hinge Brackets 8mm Pin M6 Bolt Side Mount Zinc Plated
2x Gas Strut Pivot Hinge Brackets 8mm Pin M6 Bolt Side Mount Zinc Plated
Regular price
£6.49 GBP
Regular price
£9.99 GBP
Sale price
£6.49 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.

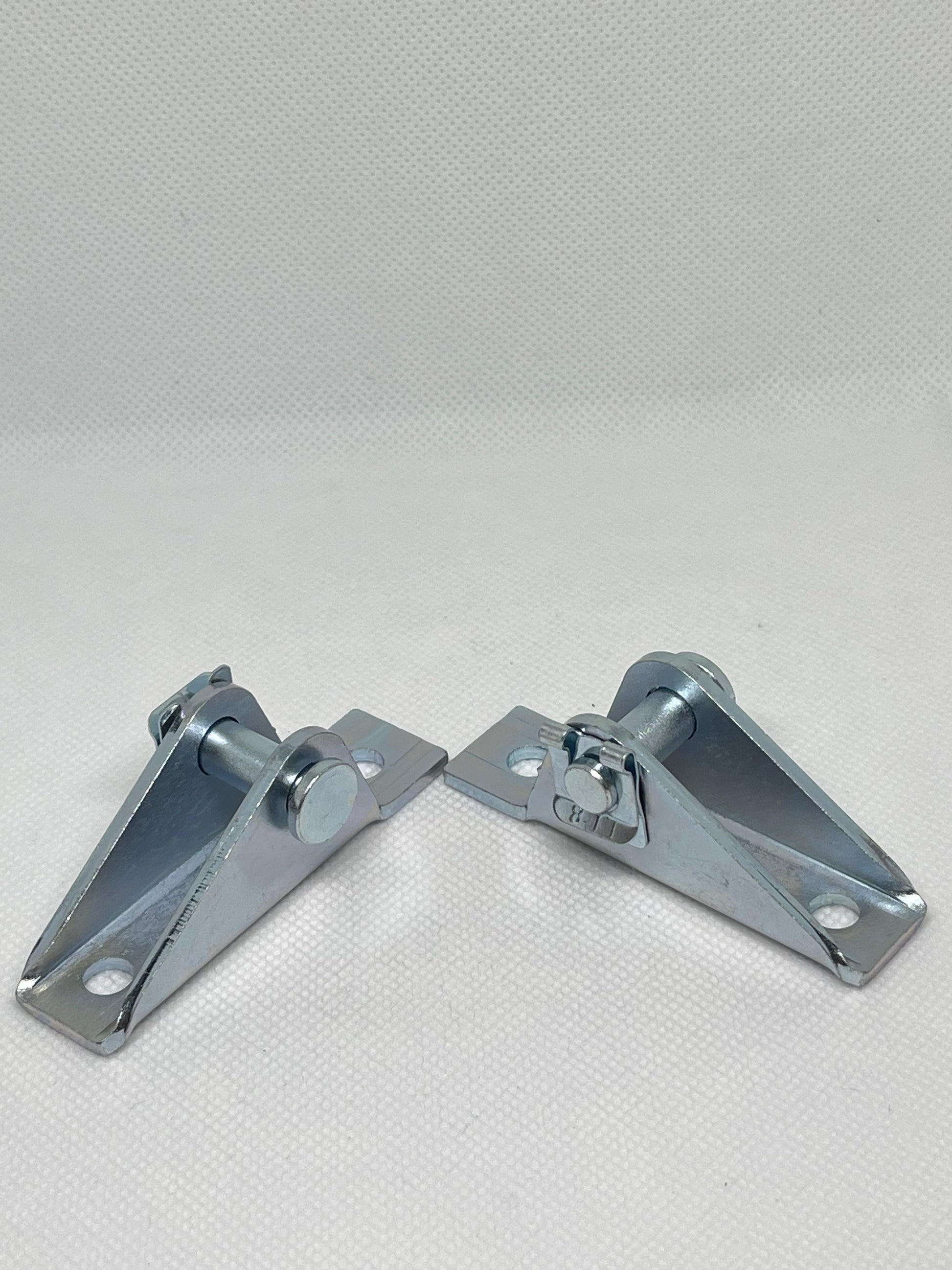

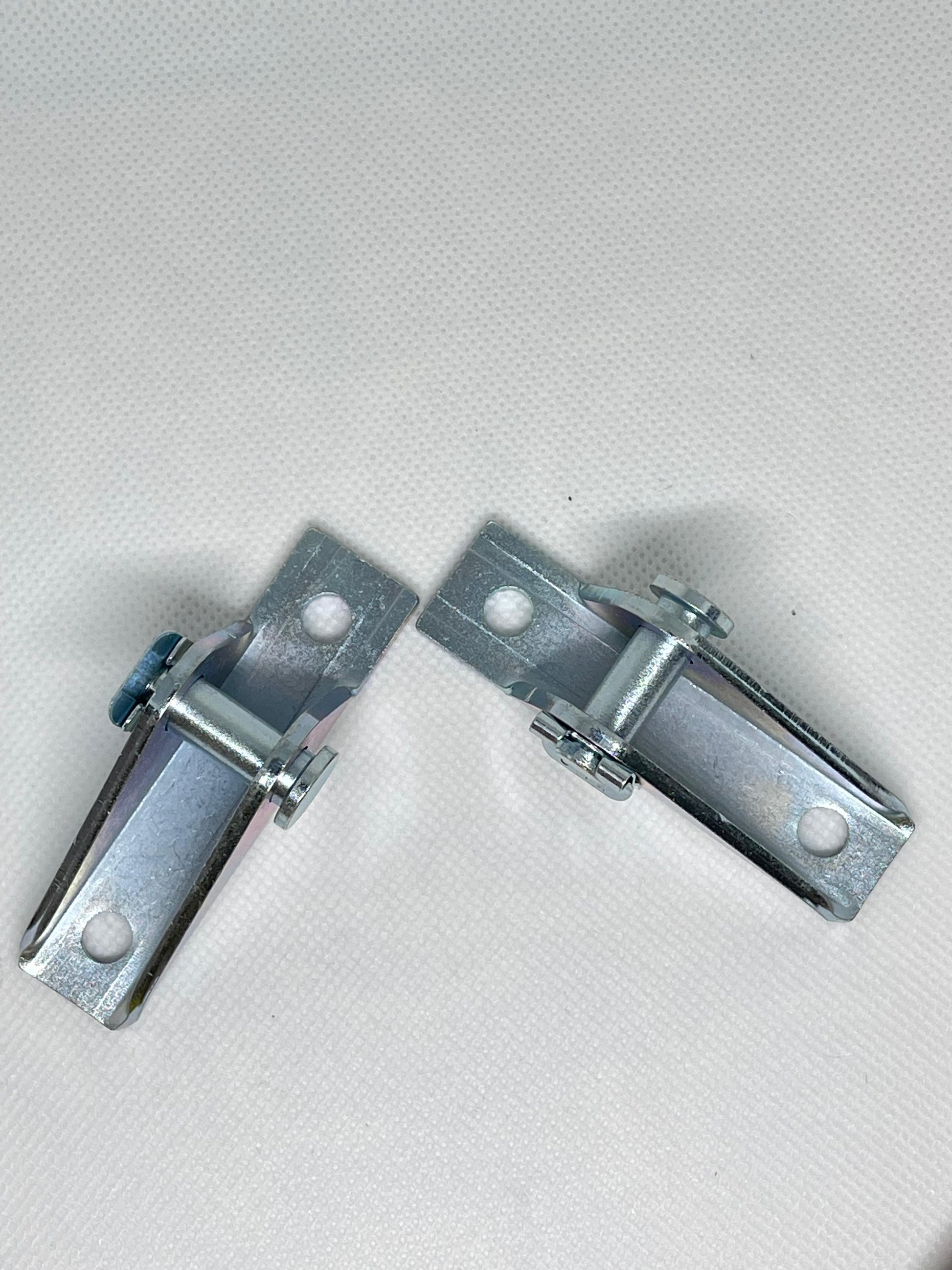

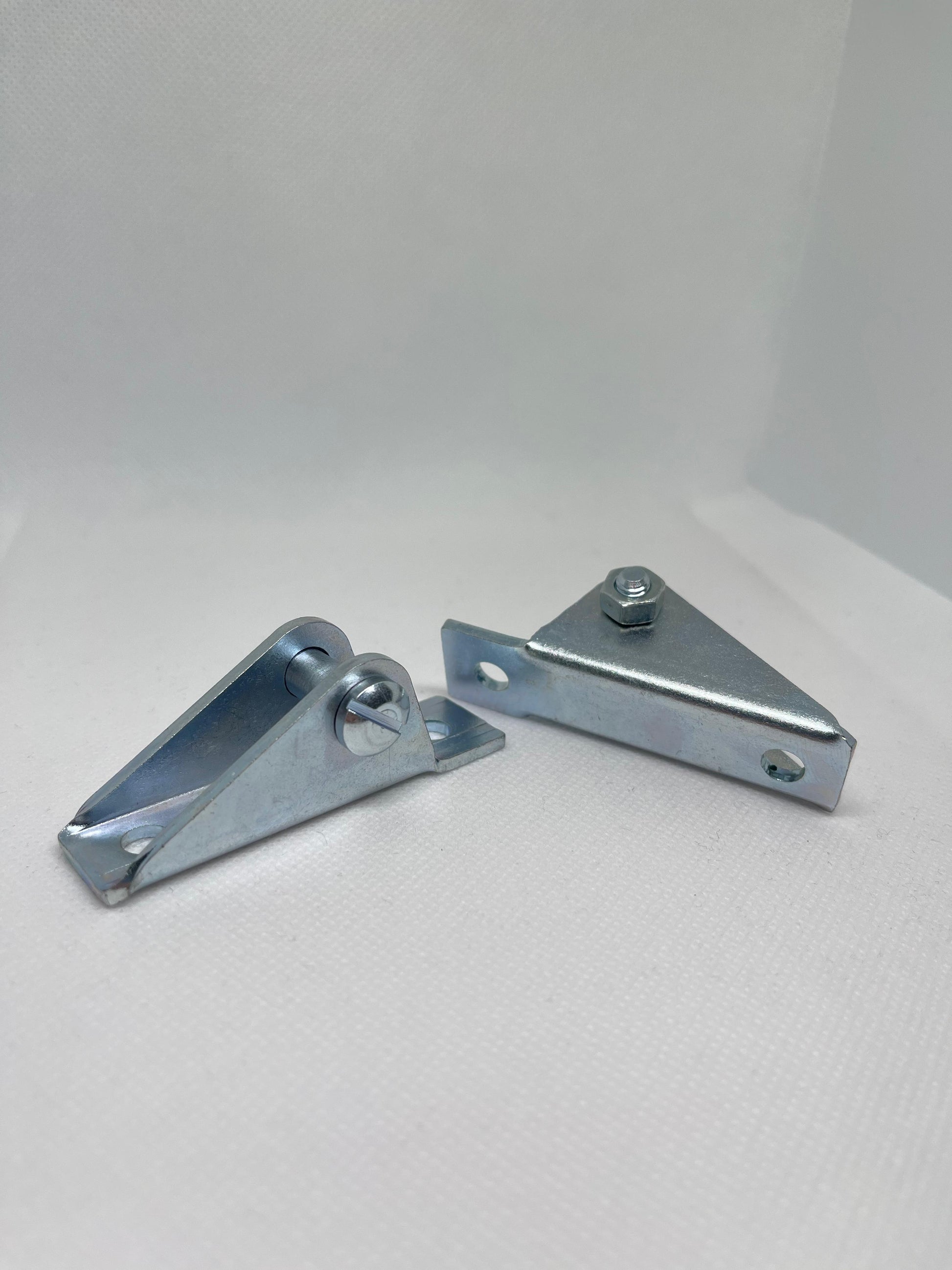

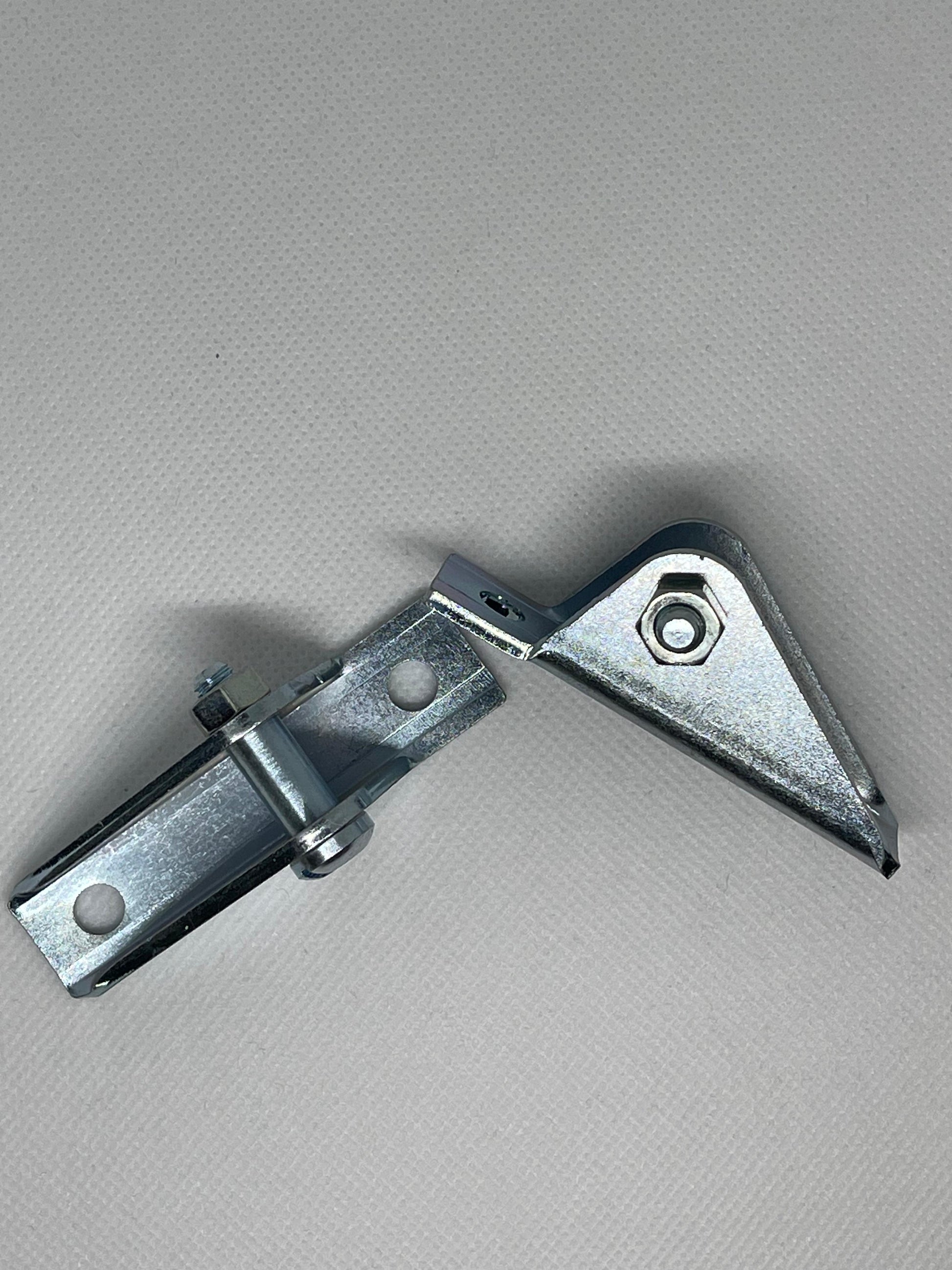

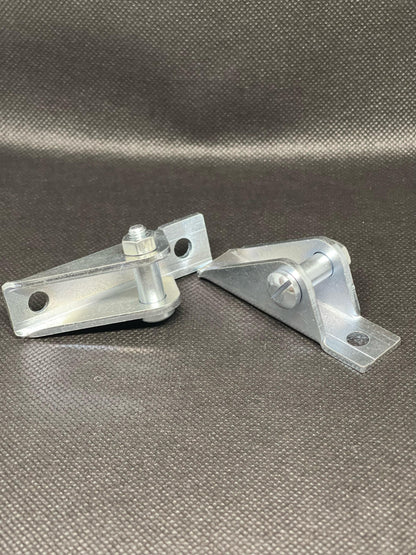

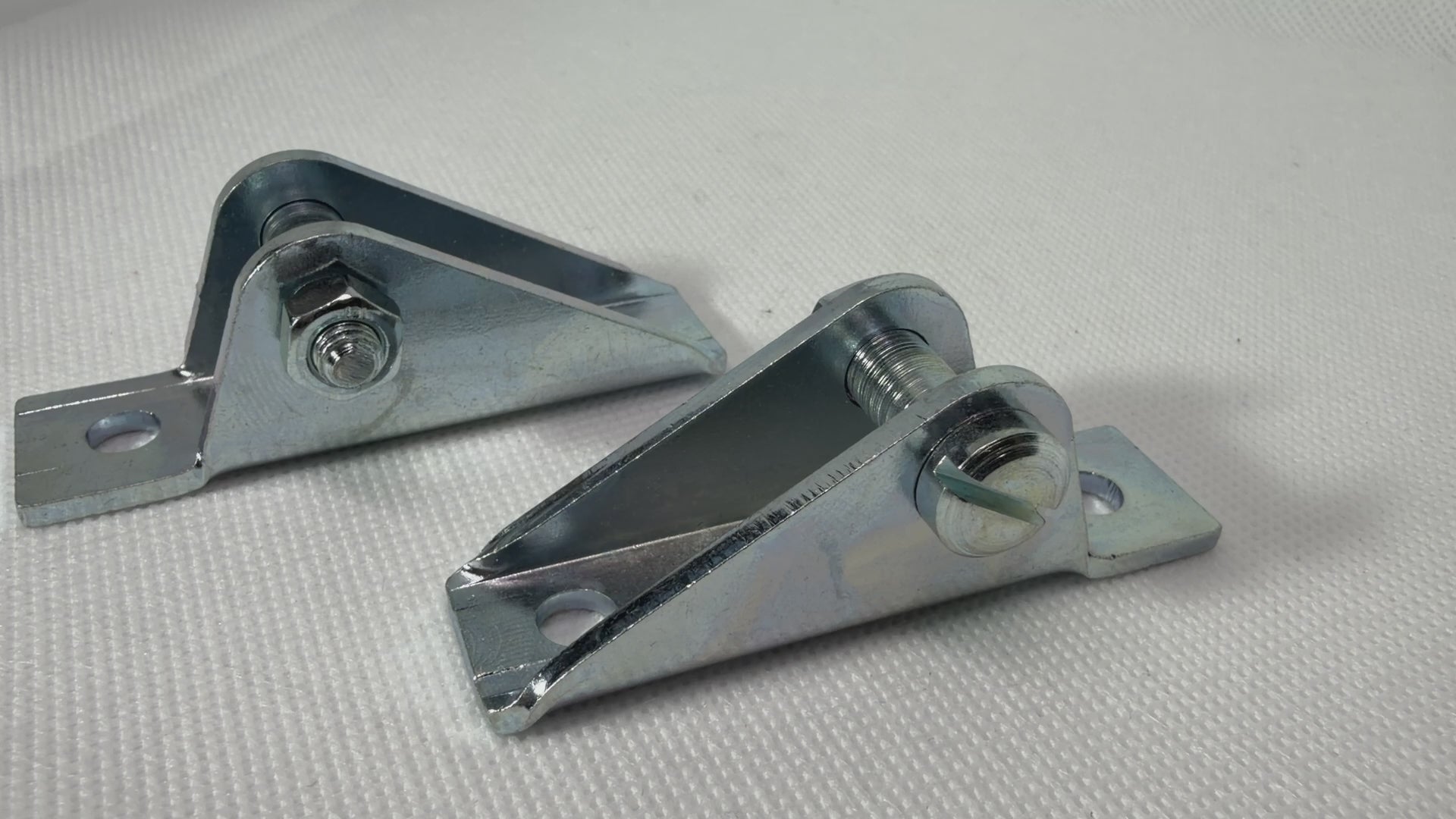

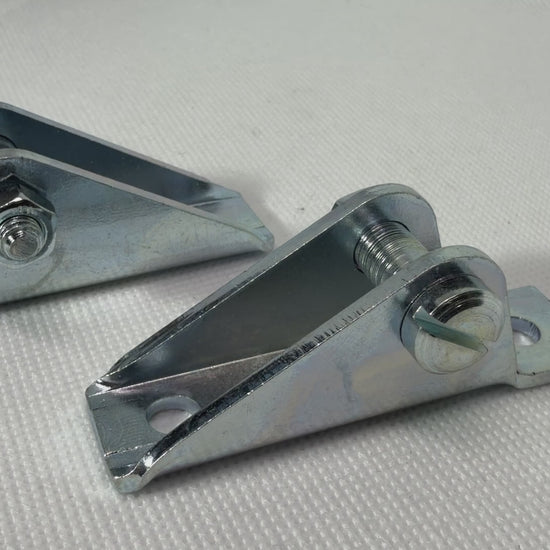

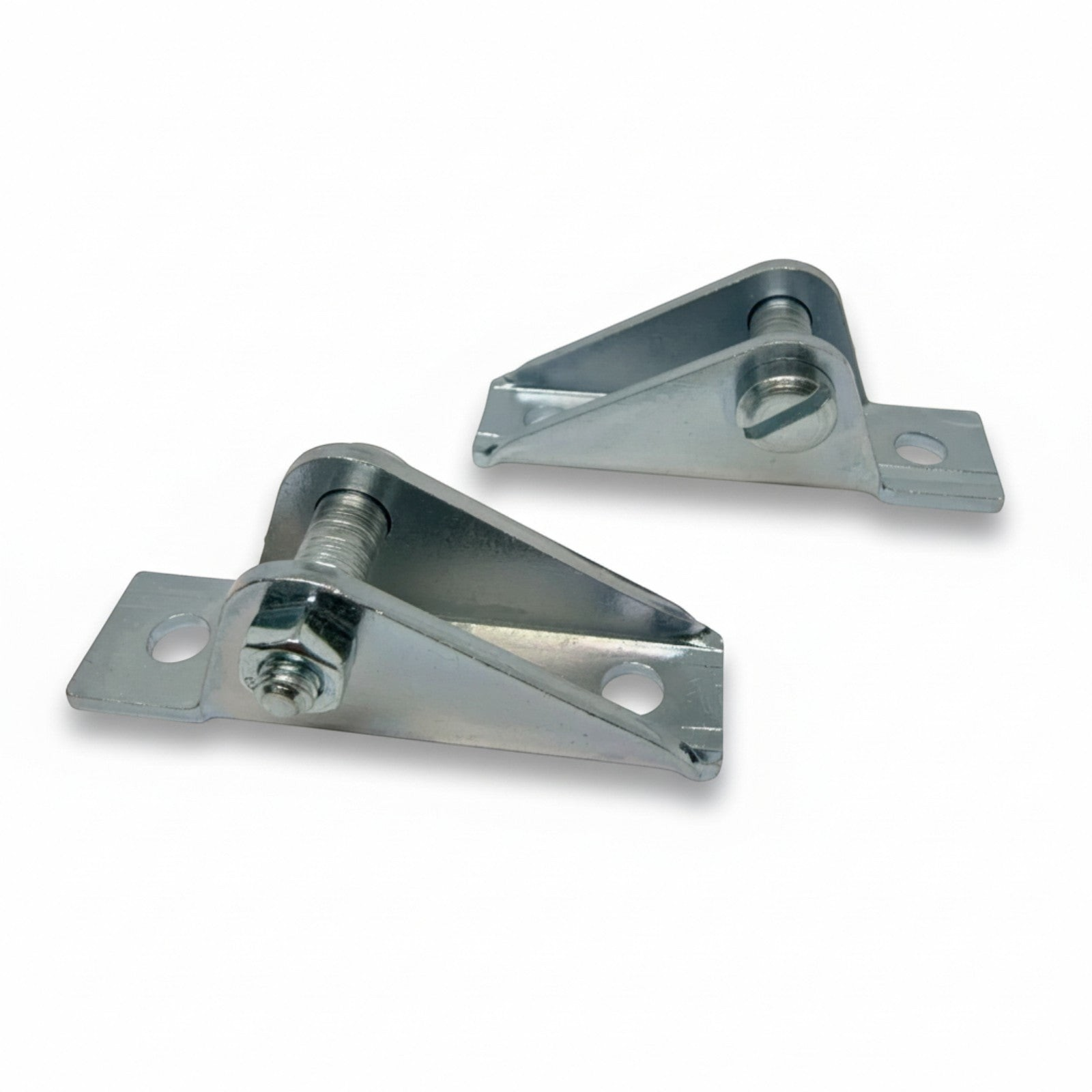

2x zinc plated gas strut pivot hinge mounting brackets with 8mm pin and M6 bolt type fixing. Form A side mount design with hex nut for a strong and reliable mounting point. Suitable for gas struts with eyelet or hole-end fittings that fit onto an 8mm pin. Ideal for lids, hatches, panels, toolboxes, cabinets and general gas strut mounting applications.
2x Gas Strut Pivot Hinge Brackets – 8mm Pin – M6 Bolt Type – Side Mount – Zinc Plated
Replace worn or damaged gas strut mounting brackets with this pair of BRK5011 pivot hinge brackets. These brackets use an 8mm pin with M6 bolt type fixing and hex nut, providing a strong, reliable and corrosion-resistant mounting solution for compatible gas strut applications.
Key Features
- Quantity: 2 brackets
- Type: Gas strut pivot hinge mounting bracket
- Mounting style: Side mount
- Pin size: 8mm
- Bolt type: M6 Form A with hex nut
- Material: Zinc plated steel
- Strong, durable and corrosion resistant

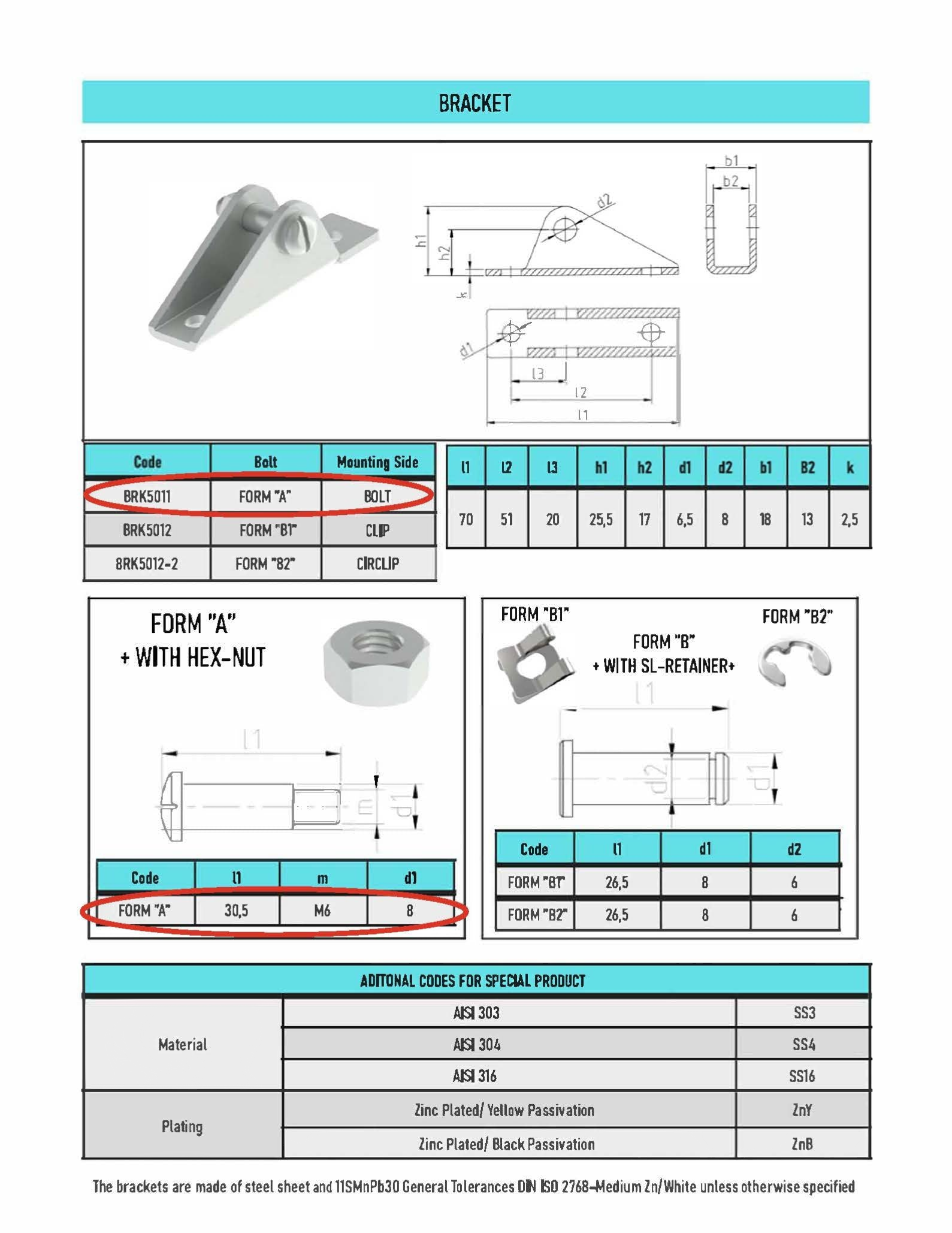

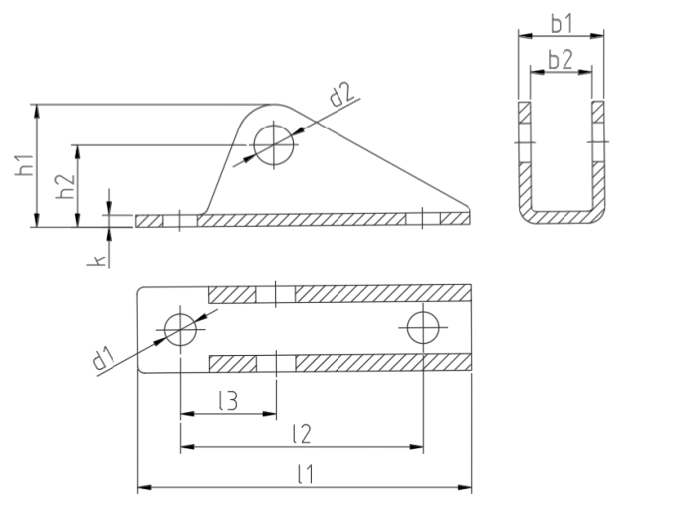

Dimensions
- Overall length (l1): 70mm
- Mount length (l2): 51mm
- Front section (l3): 20mm
- Overall height (h1): 25.5mm
- Body height (h2): 17mm
- Mounting hole diameter (d1): 6.5mm
- Pin diameter (d2): 8mm
- Outer width (b1): 18mm
- Inner width (b2): 13mm
- Material thickness (k): 2.5mm
What You’ll Receive
- 2 x BRK5011 gas strut pivot hinge brackets
- M6 bolt / hex nut parts fitted as shown
- Fixing screws or bolts for mounting the bracket to your surface are not included unless shown
Important Compatibility Check
- Designed for gas struts that fit onto an 8mm pin
- Suitable for eyelet / hole-end gas strut fittings that match this bracket design
- Not suitable for ball socket gas strut ends
- Not suitable for clip-on / quick release bracket type fittings
- Please compare the bracket shape, hole layout, pin size and dimensions with your existing part before ordering
Dispatch
Orders placed before 16:00 are usually dispatched the same day.
Need help?
If you are unsure, send us a clear photo of your current bracket and gas strut end fitting and we’ll help confirm the correct part before you buy.
