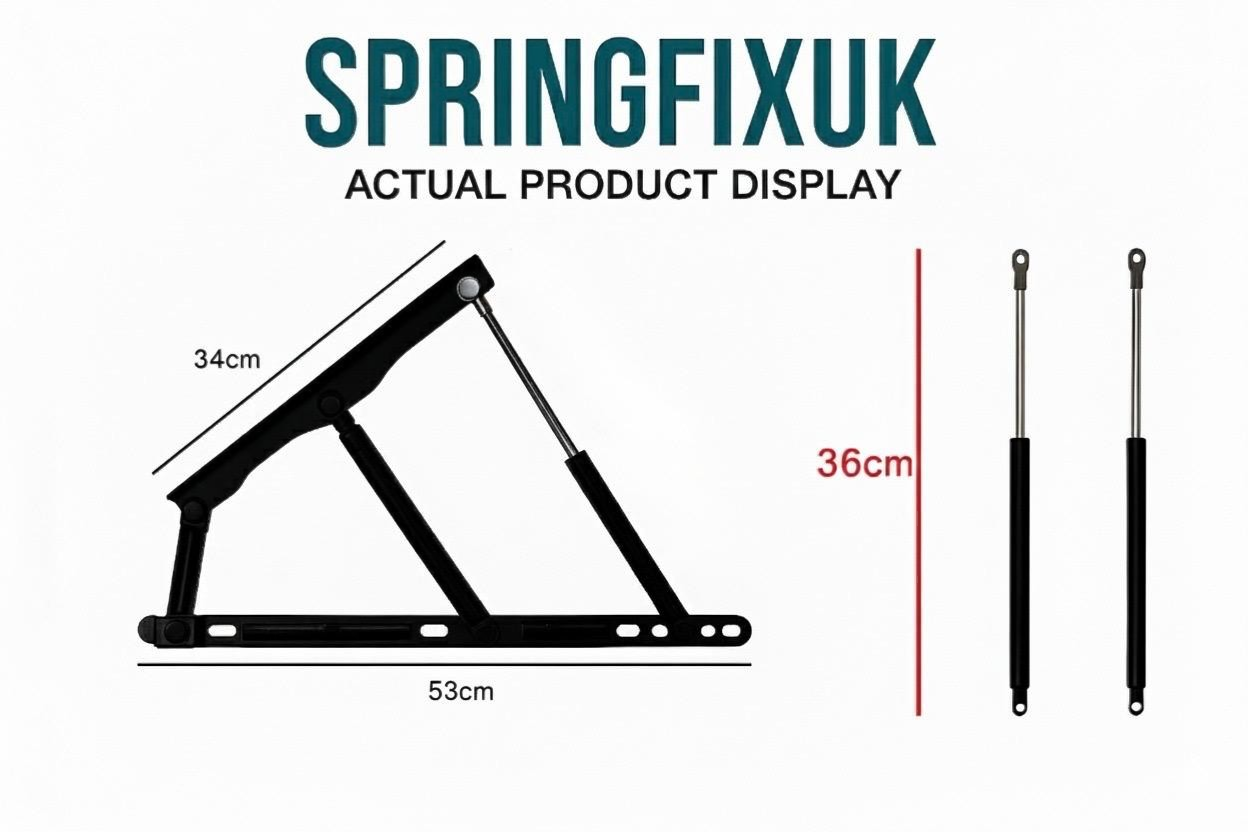

2x 750N Ottoman Bed Lift Mechanism Set – Hinges & 360mm Gas Struts (8mm Eye Ends)
Restore smooth and controlled lifting to your ottoman storage bed with this complete left and right lift mechanism set. Supplied with matching 750N gas struts, this kit is ideal for medium-weight ottoman beds requiring reliable support and stable operation.
IMPORTANT – PLEASE READ BEFORE BUYING
This kit is NOT universal. To avoid returns, your existing setup must match ALL of the following:
- 750N printed on your current gas struts
- Approx. 360mm eye-to-eye length when fully extended
- 8mm eye-end (round hole) fittings

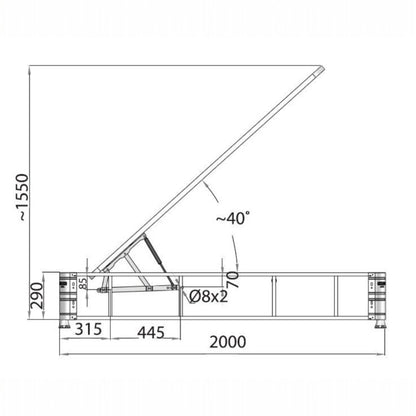

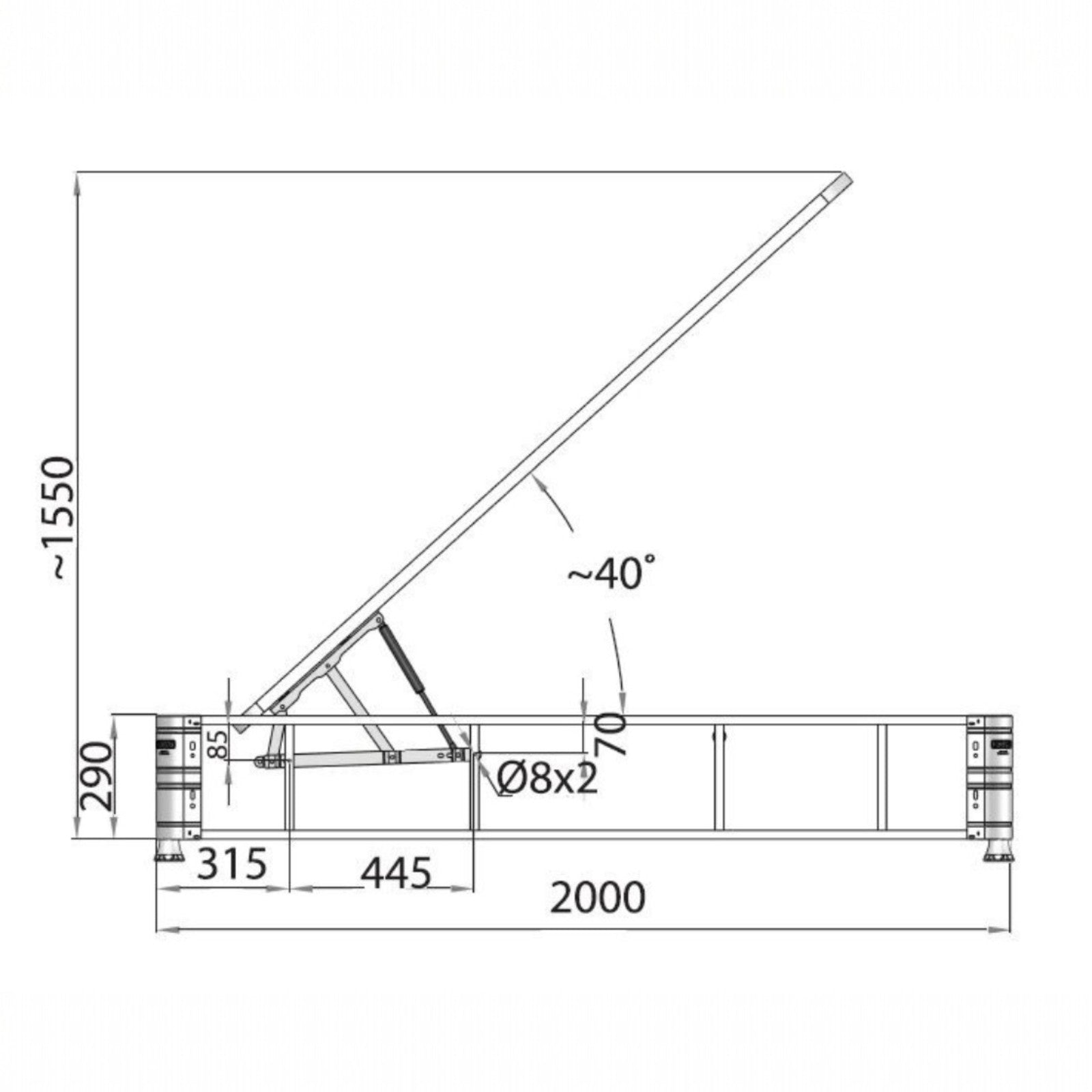

- Similar hinge shape and mounting layout (see photos)
DO NOT BUY if your current struts are:
600N / 800N / 900N / 1000N / 1200N
DO NOT BUY if your fittings are ball joints or fork/clevis type
Key Features

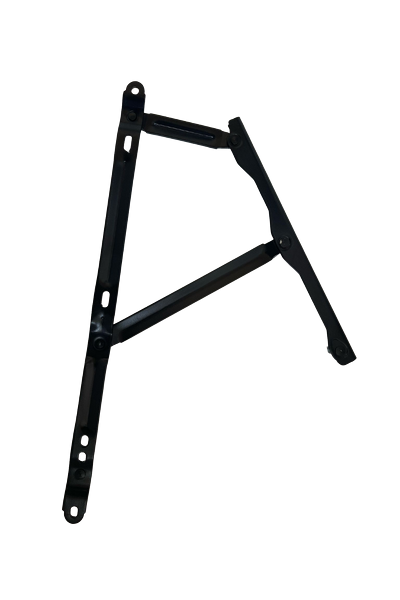

- Complete left & right ottoman bed lift mechanism set

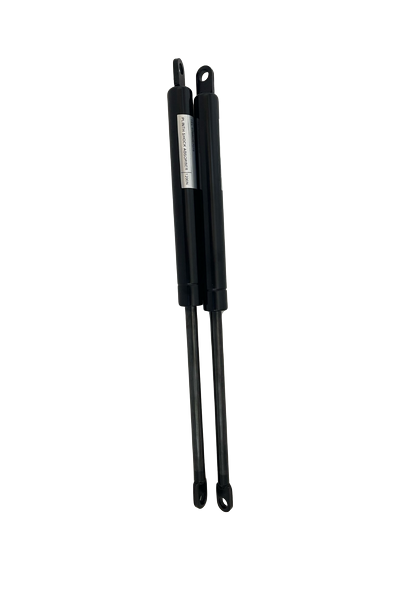

- Includes 2 × 750N gas struts

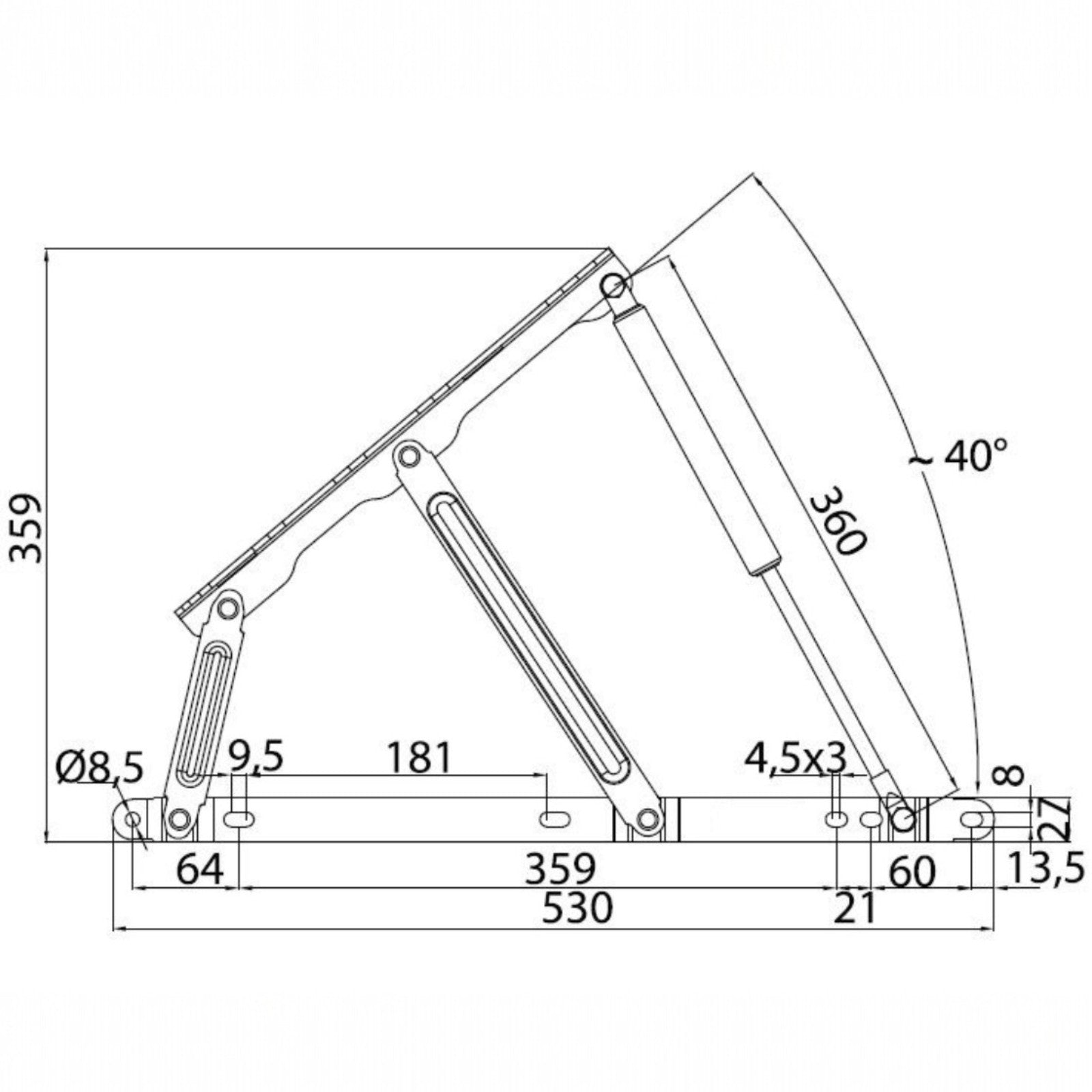

- 360mm extended length (eye-to-eye)
- 8mm eye-end fittings (round hole type)
- Strong steel hinge frame with black finish
- Smooth lift action with controlled closing
- Designed for standard and medium-weight ottoman beds

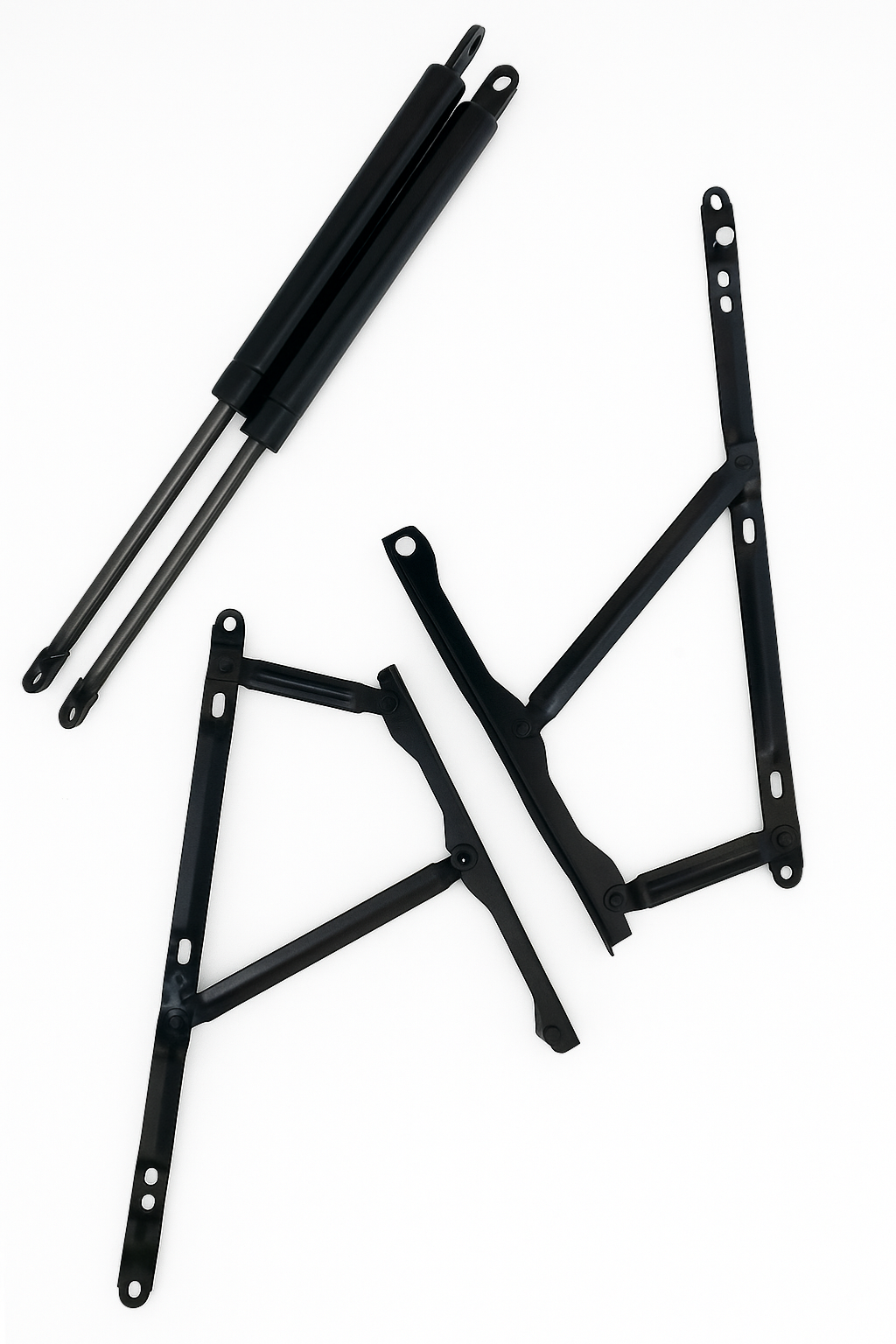

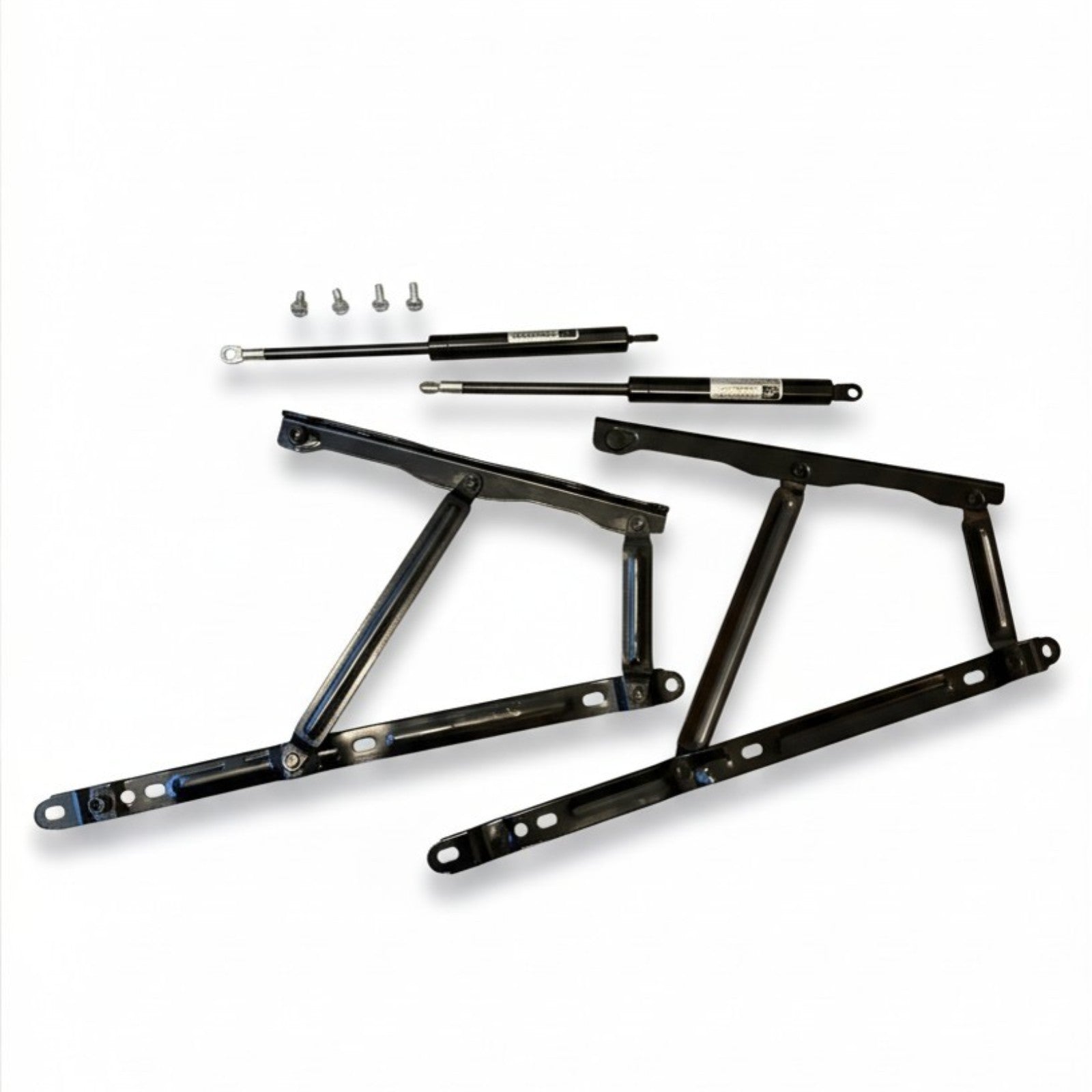

Package Includes
- 2 × lift mechanisms (left & right)
- 2 × 750N gas struts
- Fixing screws (as shown)
Typical Applications

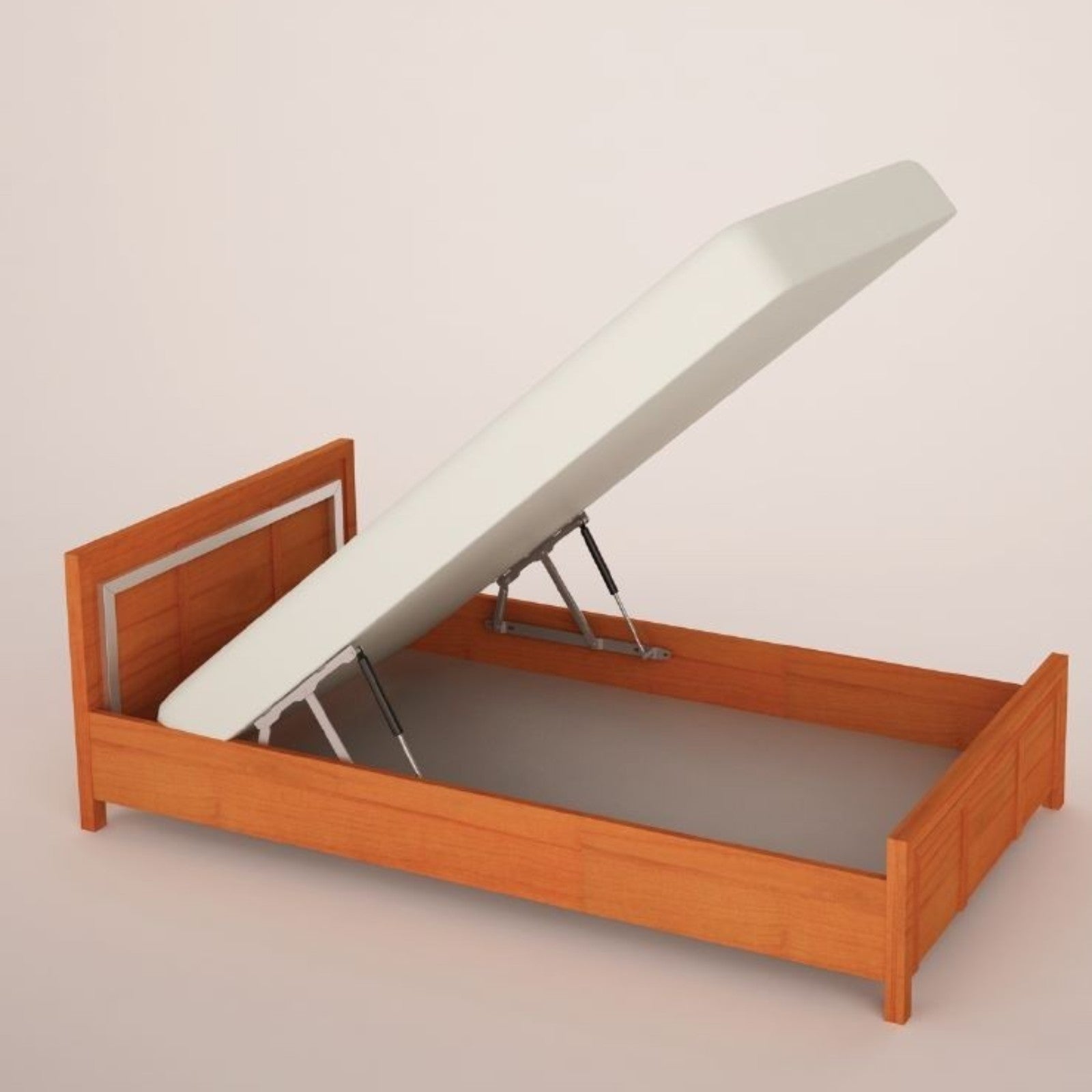

- Ottoman storage beds
- Lift-up bed bases
- Furniture lift mechanisms
- Storage lid lifting systems
Installation Notes
- Always replace both sides together
- Fit struts with piston rod facing down when closed
- Use correct fixings for your specific bed frame
Fitment Advice
- Confirm 750N is printed on your current struts
- Confirm approx. 360mm extended length
- Confirm 8mm eye-end fittings (NOT ball joints)
If unsure, send us photos of your current hinges and struts and we will confirm compatibility before you buy.
Dispatch
Orders placed before 16:00 are dispatched the same day.
Need help? Message us anytime – we’re happy to help before purchase.
