2x 1200N Ottoman Bed Lift Mechanism Set – Hinges & 360mm Gas Struts (8mm Eye Ends)
Restore powerful and controlled lifting to your ottoman storage bed with this complete left and right lift mechanism set. Supplied with matching 1200N gas struts, this kit is designed for large and heavy beds requiring strong, stable lifting support.
IMPORTANT – PLEASE READ BEFORE BUYING
This kit is NOT universal. To avoid returns, your existing setup must match ALL of the following:
- 1200N printed on your current gas struts
- Approx. 360mm eye-to-eye length when fully extended
- 8mm eye-end (round hole) fittings

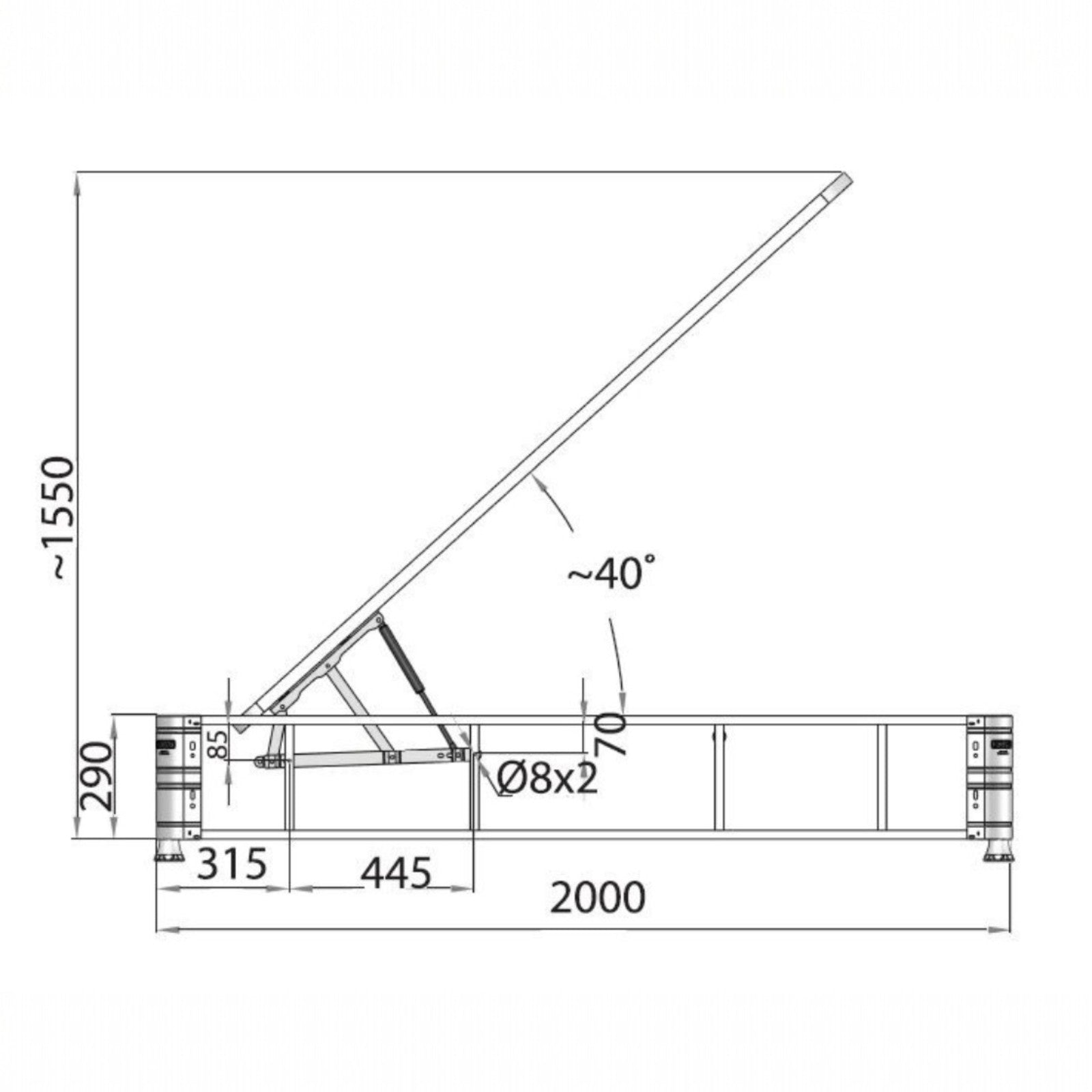

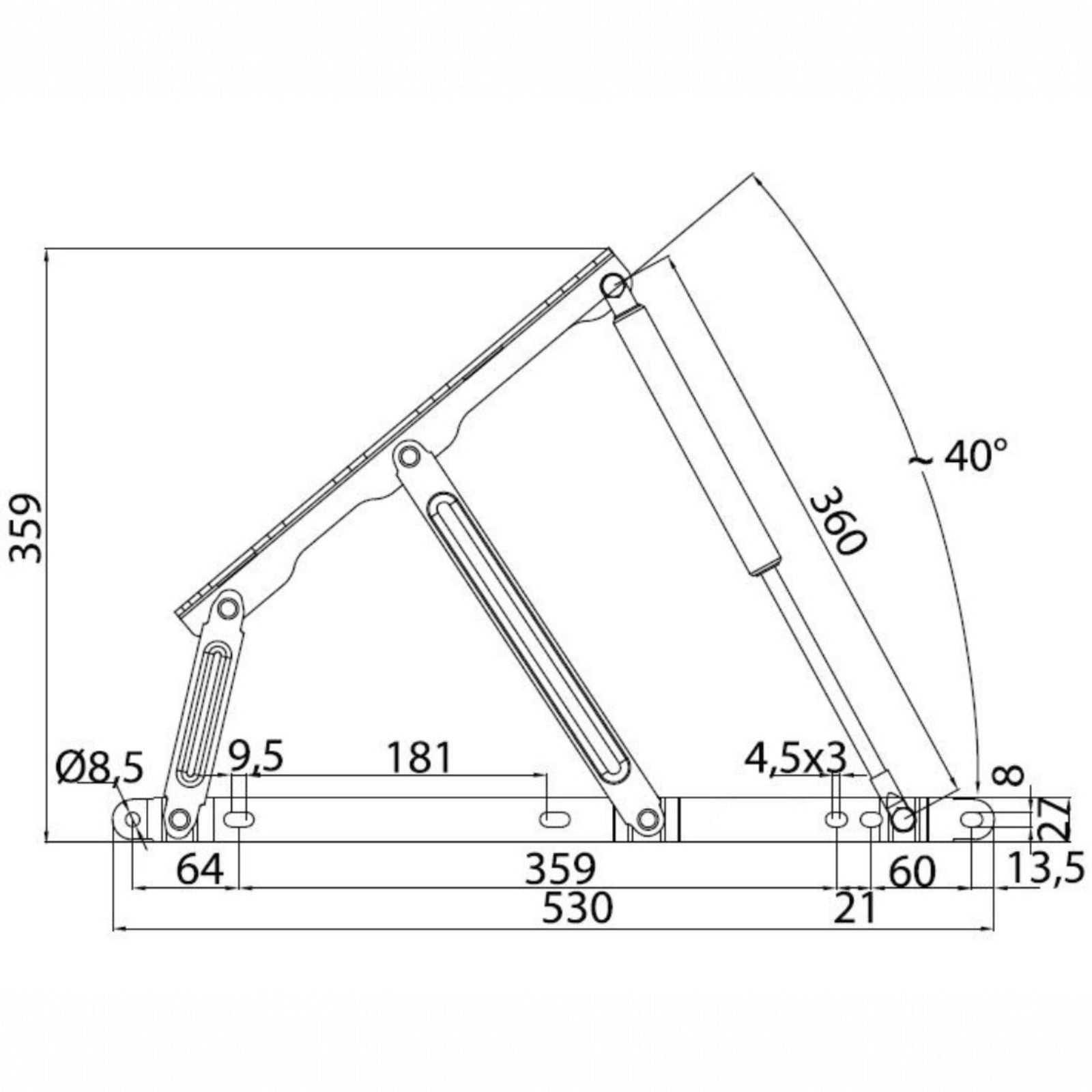

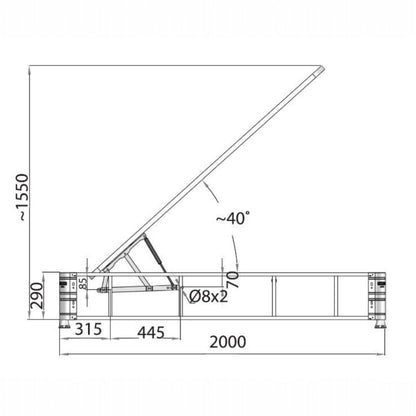

- Similar hinge shape and mounting layout (see photos)
DO NOT BUY if your current struts are:
600N / 700N / 800N / 900N / 1000N / 1100N
DO NOT BUY if your fittings are ball joints or fork/clevis type
Key Features
- Complete left & right ottoman bed lift mechanism set

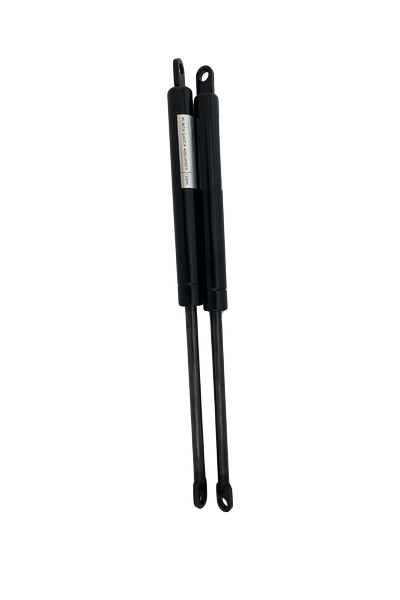

- Includes 2 × 1200N heavy duty gas struts
- 360mm extended length (eye-to-eye)
- 8mm eye-end fittings (round hole type)
- Strong steel hinge frame with black finish
- Smooth lift with controlled closing action
- Designed for large and heavy ottoman beds

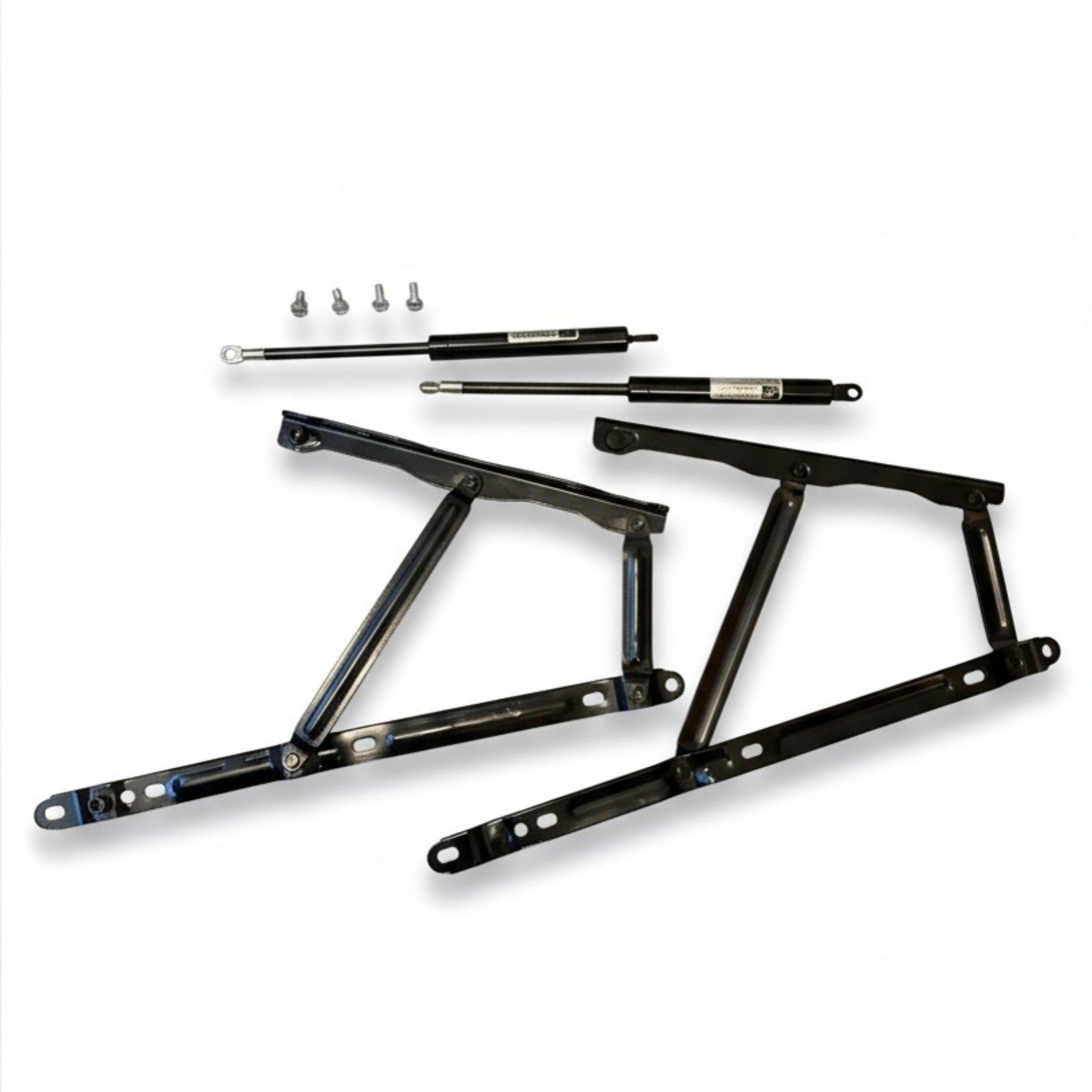

Package Includes
- 2 × lift mechanisms (left & right)
- 2 × 1200N gas struts
- Fixing screws (as shown)
Typical Applications

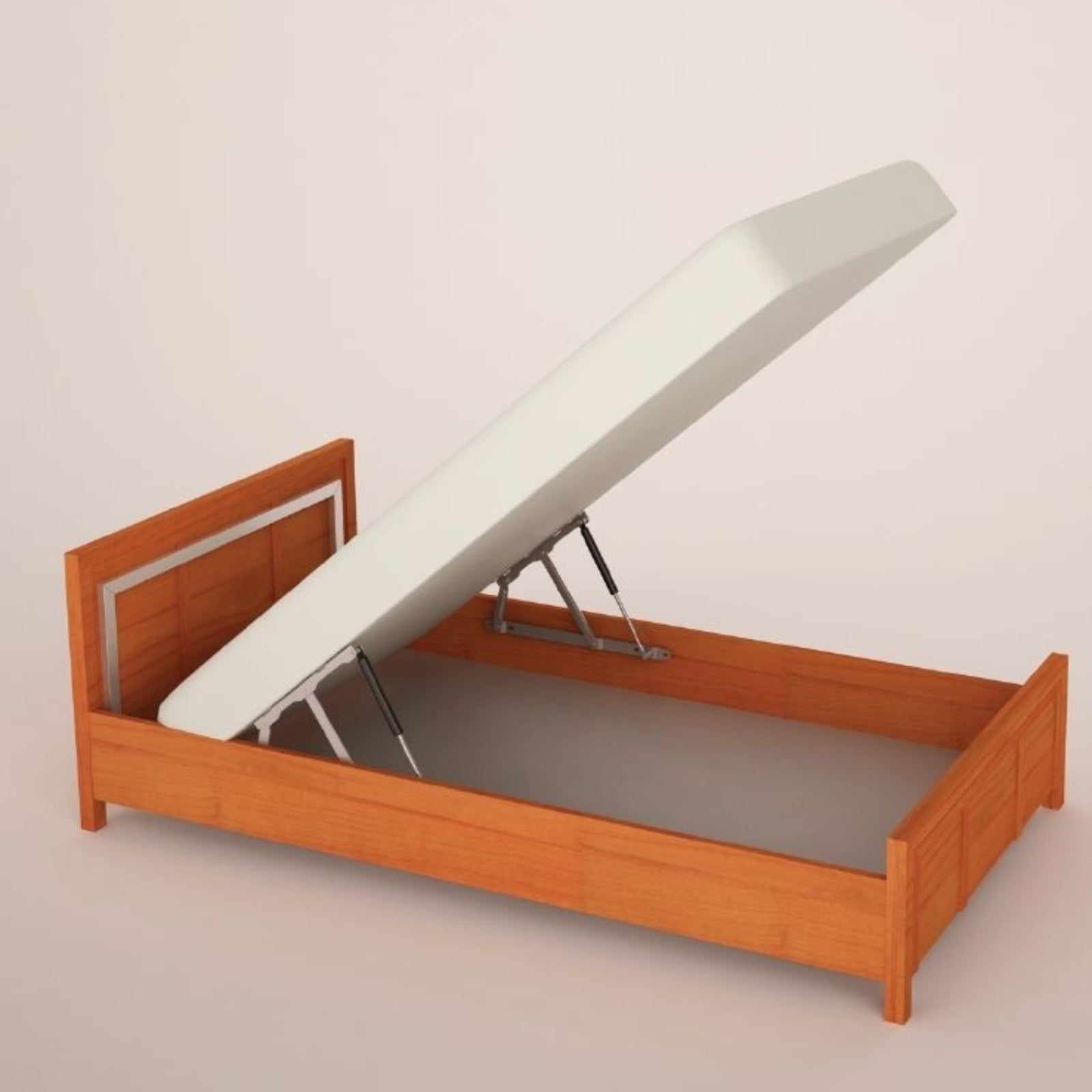

- Ottoman storage beds
- Lift-up bed bases
- Heavy lid lifting systems
- Furniture lift mechanisms
Installation Notes
- Always replace both sides together
- Fit struts with piston rod facing down when closed
- Use suitable fixings for your specific bed frame
Fitment Advice
- Confirm 1200N is printed on your current struts
- Confirm approx. 360mm extended length
- Confirm 8mm eye-end fittings (NOT ball joints)
If unsure, send us photos of your current hinges and struts and we will confirm compatibility before you buy.
Dispatch
Orders placed before 16:00 are dispatched the same day.
Need help? Message us anytime – we’re happy to help before purchase.
